Aqua Jet - Compact All-in-One Units

Product Type(s) : Water Pressure Systems
Description :

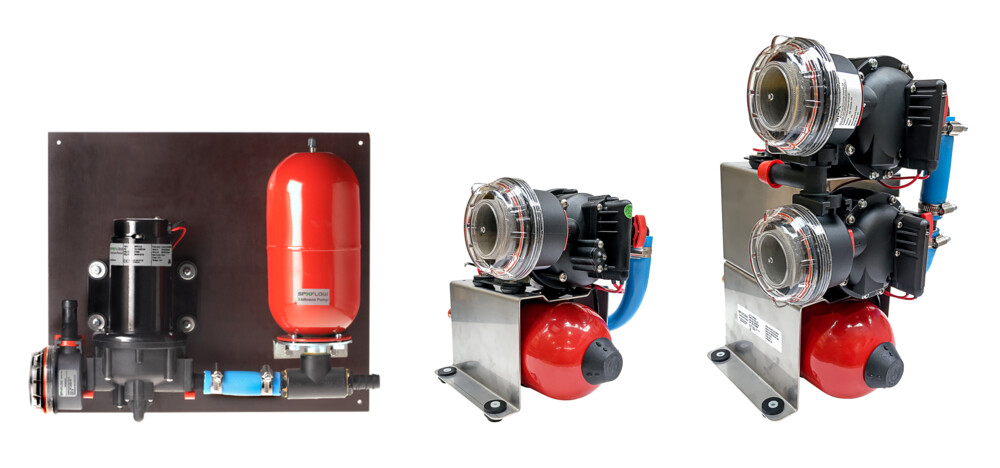

Aqua Jet UNO and DUO units are compact, all-in-one medium and high capacity Water Pressure Systems complete with one or two Johnson Pump Aqua Jet WPS pumps, incorporated with pre-pressurized Accululator Tank and PUMProtector Inlet Strainer on a stainless steel base.
WHERE TO BUY

FEATURES

  • Limited 3 Year Warranty
  • Capacity UNO models 13 L/min or 20 L/min; DUO model 40 L/min
  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Easy, low cost maintenance
  • Quick-connect hose
  • Integrated pressure switch, PUMProtector Inlet Strainer and a 2 litre pre-pressurized Accumulator Tank
  • Long service life
  • UNO and DUO models assembled on stainless steel base that allows for either vertical or horizontal installation
  • UNO MAX mounted on wooden panel for easy installation

  See the Johnson Pump Marine Catalog: US, EN, DE, ES, FI, SV

Aqua Jet UNO WPS 3.5 and 5.2
Where To Buy

Technical Data

Part No. Description Capacity Pressure Cut Off* Fuse Size Connection**
10-13408-01 Aqua Jet Uno WPS 3.5 GPM 12V 13 l/min – 3.5 GPM 2.8 bar – 41 psi 10 A ¾" hose
10-13408-02 Aqua Jet Uno WPS 3.5 GPM 24V 13 l/min – 3.5 GPM 2.8 bar – 41 psi 5 A ¾" hose
10-13408-03 Aqua Jet Uno WPS  5.2 GPM 12V 20 l/min – 5.2 GPM 2.8 bar – 41 psi 15 A ¾" hose
10-13408-04 Aqua Jet Uno WPS 5.2 GPM 24V 20 l/min – 5.2 GPM 2.8 bar – 41 psi 8 A ¾" hose
** BSP/NPT-connection available on request

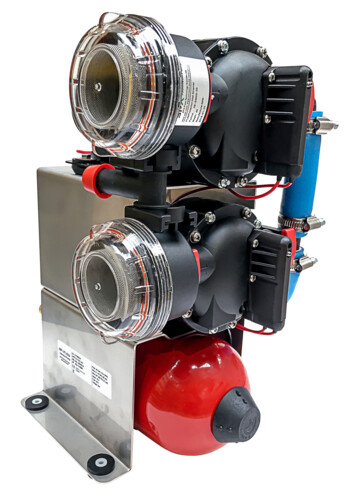

Aqua Jet DUO WPS 10.4

Technical Data

Part No. Description Capacity Pressure Cut Off* Fuse Size Connection**
10-13409-01 Aqua Jet Duo WPS 10.4 GPM 12V 40 l/min – 10.4 GPM 2.8 bar – 41 psi 25 A ¾" hose
10-13409-02 Aqua Jet Duo WPS 10.4 GPM 24V 40 l/min – 10.4 GPM 2.8 bar – 41 psi 15 A ¾" hose
** BSP/NPT-connection available on request
Where To Buy
Aqua Jet UNO MAX WPS 2.9 and 3.5
Where To Buy

Technical Data

Part No. Description Capacity Pressure Cut Off* Fuze Size Connection**
10-13410-01 Aqua Jet Uno-Max WPS 2.9 12V 11 l/min – 2.9 GPM 2.8 bar – 41 psi 10 A ¾" hose
10-13410-02 Aqua Jet Uno-Max WPS 2.9 24V 11 l/min – 2.9 GPM 2.8 bar – 41 psi 5 A ¾" hose
10-13411-01 Aqua Jet Uno-Max WPS 3.5 12V 13 l/min – 3.5 GPM 2.8 bar – 41 psi 10 A ¾" hose
10-13411-02 Aqua Jet Uno-Max WPS 3.5 24V 13 l/min – 3.5 GPM 2.8 bar – 41 psi 5 A ¾" hose
* Cut off pressure 2.1 bar/30 psi and 1.4 bar/20 psi available on request
** BSP/NPT-connection available on request

DIMENSIONS & SPECIFICATIONS

Materials

Pump body: Polypropylene
Valve housing: Polypropylene
Valves: Santoprene
Accumulator tank: Corrosion protected tank with internal rubber bladder
Capacity – 2 liters
Precharge pressure – 0.8 bar
Air valve – standard tire valve
