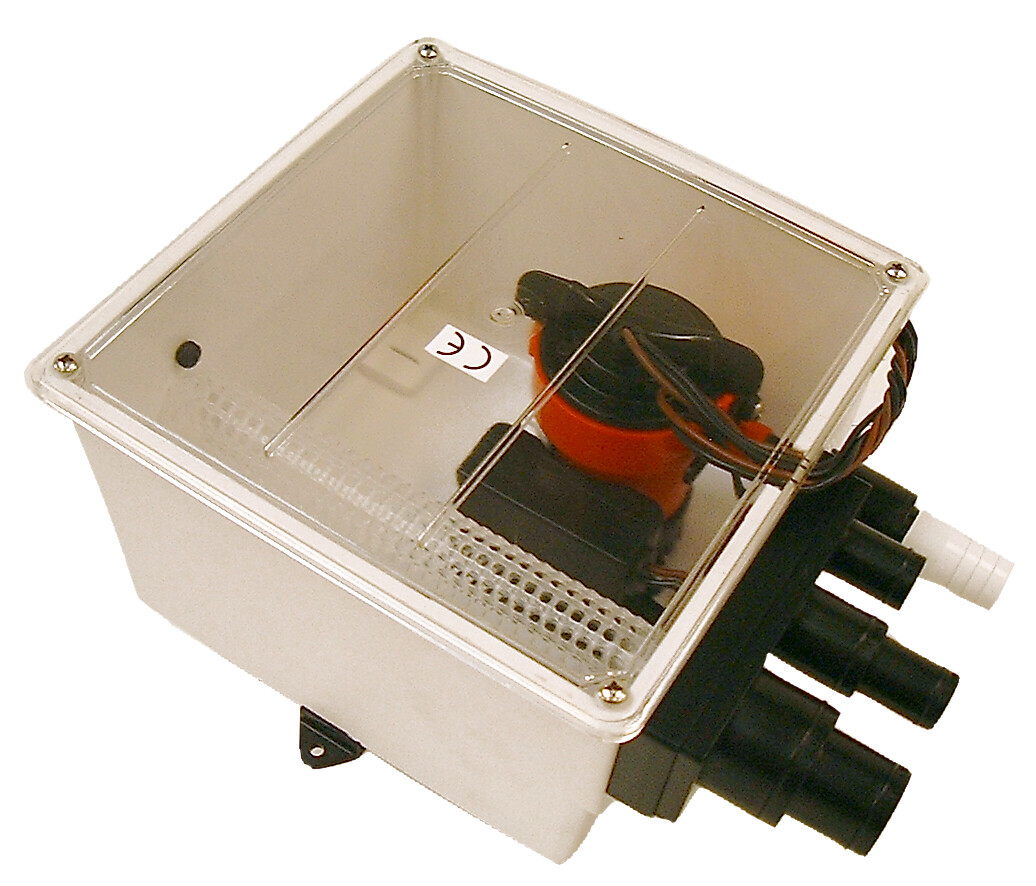

Shower Sump Multiple Port

Product Type(s) : Shower Sumps
Description :

Compact shower sump system designed to meet the higher demands from today’s boating industry where more equipment is used; for example fresh water systems incorporating showers, dishwashing machines, galley sinks, etc.
WHERE TO BUY

FEATURES

  • Limited 3 Year Warranty
  • Includes the Cartridge 1000 GPH bilge pump + Ultima Switch for automatic operation and a mesh filter for easy cleaning
  • Multiple inlet ports for handling waste water from more than one tapping point
  • Tight fitting lid to minimize splashing and odors
  • Check valve on outlet stops water from flowing back into the tank.
  • Intake hoses: 1 x 3/4", 1 x 3/4" or 1 x 1", 1 x 1 1/8" or 1 x 1 1/2",
  • Discharge hose: 3/4"

DIMENSIONS & SPECIFICATIONS

Length x Width 280 x 210 mm – 11.42 x 8.26"
Max height  140 mm – 5.7"
Weight  0.9 kg – 2 lbs

Material Specifications

Pump body: Thermoplastic
Shaft seal: Lip seal
Shaft: Stainless steel (SS2343)



Technical data

Part No. Part No. USA Description Capacity 1.0 m head  (13.6V/27.2V) Capacity straight (13.6V/27.2V) Voltage Amperage Fuse Size Intake connection Discharge connection
32-57151-01 57151 Shower Sump Multiports 1000 GPH 12V 53 L/min - 844 GPH 61 L/min - 972 GPH 12 V 3.4 A 5 A 1x ¾", 1x¾" or 1x1" ¾"
32-57151-02 57151-24 Shower Sump Multiports 1000 GPH 24V 53 L/min - 844 GPH 61 L/min - 972 GPH 24 V 2 A 3 A 1x1⅛" or 1x1½" ¾"



See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

VIDEOS

Shower Sump

Downloads

Spare Parts

Part No. Part No. USA Spare Parts Shower Sump 32-54304 54304PK Clear Sump Cover for Shower Sump 34-28512 28512 Cartridge Motor 1000 GPH 12V 34-36303 36303 Electronic Automatic Switch - Ultima Switch, 12/24V
