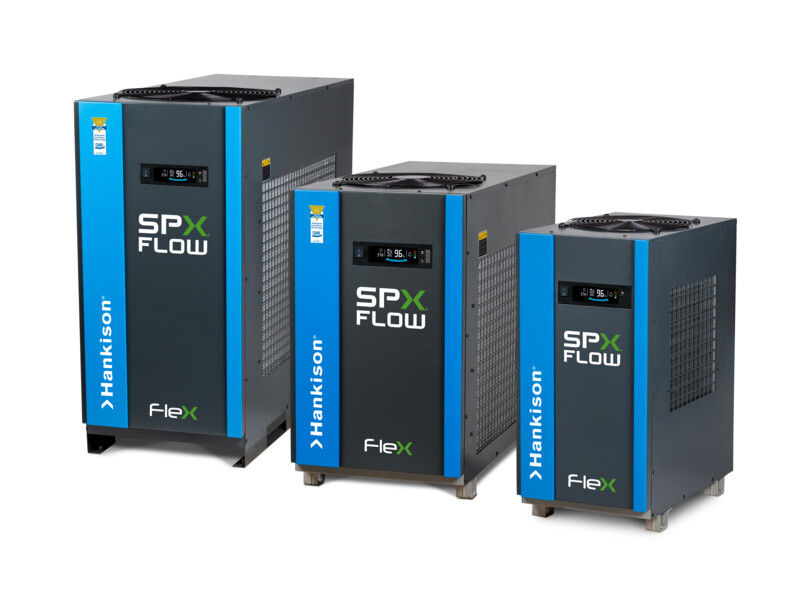

FLEX Series - Refrigerated Air Dryers 75 to 2000 scfm

FLEX Series Refrigerated Compressed Air Dryers || FLEX Series Refrigerated Compressed Air Dryers
Product Type:
Air And Gas Treatment / Refrigerated Compressed Air Dryers

FLEX Series Sustainable Energy Saving Solution

Features

Energy Saving Sustainability

The FLEX Series lowers air system power costs and improves productivity by matching power consumption to compressed air demand. In a typical manufacturing facility, up to 30% of the electricity consumed is for generating and treating compressed air. To reduce the total cost of operation and qualify for utility company incentive programs, proper air treatment equipment selection and application is required.


Load Matching Performance

Compressed air load profiles in most manufacturing facilities fluctuate. The FLEX Series provides cost-effective energy savings by matching electrical power consumed in direct proportion to air demand. Linear load matching is achieved from 0% up to 100% demand. Non-cycling dryers operate with the refrigeration compressor running continuously, regardless of inlet load conditions. Minimal energy savings are realized from 100% down to 0% inlet air load.



Theory of Operation

How it works

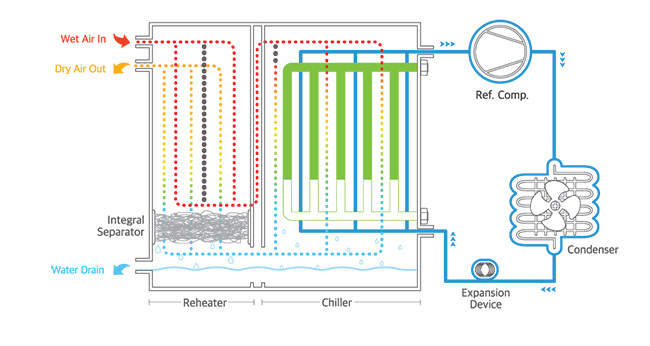

The FLEX Series utilizes a phase change (PCM) heat transfer medium between the refrigeration and compressed air circuits that serve as a reservoir for thermal storage. The thermal reservoir is comprised of a 3-in-1 heat exchanger (patent pending)filled with a phase change material that efficiently transfers heat energy through a "change of state."Phase Change: changing from liquid to solid back to liquid in a continuous cycle. The refrigeration circuit operates to cool down the PCM until it forms into a solid at which time the refrigeration system cycles off. As the compressed air enters the PCM to air section of the heat exchanger, the PCM media absorbs heat for the airstream and begins to melt the PCM media at a constant temperature. When most of the PCM media has turned to liquid the refrigeration system cycles on to again cool down the PCM media turning it back into a solid. This cycle repeats as required to meet the corresponding compressed air load on the FLEX dryer.

Specifications

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM NM3/H PSI IN KW LB KG
FLX 1.1 75 127 2.9 115/1/60 NPT 1" 0.54 120 54.5
FLX 1.2 100 170 3.0 115/1/60 NPT 1" 0.62 147 66.5
FLX 1.5-1 150 265 3.6 115/1/60 NPT 2" 1.04 203 92
FLX 1.5 150 255 3.6 230/1/60 NPT 2" 0.85 189 85.5
FLX 2.1 200 340 2.2 230/1/60 NPT 2" 1.32 217 98.5
FLX 2.1-4 200 340 2.2 460/3/60 NPT 2" 1.26 244 111
FLX 3.1 300 509 3.6 460/3/60 NPT 2" 1.99 324 147
FLX 4.1 400 680 2.5 230/1/60 NPT 2" 2.54 335 152
FLX 4.5 450 765 3.0 460/3/60 NPT 2" 3.23 366 166
FLX 5.5 550 935 3.0 460/3/60 NPT 2" 3.42 396 180
FLX 8.1 800 1300 3.7 460/3/60 FLG 3" 4.30 1056 479
FLX 12.5 1250 2150 4.6 460/3/60 FLG 4" 7.60 1537 697
FLX 15.1 1500 2550 3.9 460/3/60 FLG 4" 9.00 1766 801
FLX 20.1 2000 3400 3.1 460/3/60 FLG 4" 10.00 2028 920
Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.



Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 1.1 75 127 0.20 230/1/50  1" 0.43 120 54.5
FLX 1.2 100 170 0.21 230/1/50  1" 0.43 147 66.5
FLX 1.5 150 255 0.25 230/1/50  2" 0.59 189 85.5
FLX 2.1 200 340 0.15 230/1/50  2" 0.85 217 98.5
FLX 3.1 300 509 0.25 230/1/50  2" 1.30 324 147
FLX 4.1 400 680 0.17 230/1/50  2" 1.66 335 152
FLX 5.5 550 935 0.20 230/1/50  2" 2.00 396 180






Dimensions

North America FLX 1.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 1.1 30 751 14 363 24 603
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 1.2

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 1.1 30 751 14 363 24 603
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 1.5-1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 1.5-1 30 761 18 443 36 901
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 1.5

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 1.5 30 761 17 443 36 901
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 2.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 2.1 30 761 18 443 38 961
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 2.1-4

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 2.1-4 30 761 18 443 38 961
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 3.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 3.1 36 911 19 493 44 1111
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 4.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 4.1 36 911 19 493 44 1111
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 4.5

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 4.5 41 1032 20 494 49 1253
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 5.5

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 5.5 41 1032 20 494 49 1253
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 8.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 8.1 59 1488 32 800 59 1494
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 12.5

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 12.5 59 1488 39 1000 62 1572
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 15.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 15.1 59 1488 39 1000 62 1572
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

North America FLX 20.1

Flex Series Models

Dryer
Model
Dimensions
H W D
IN MM IN MM IN MM
FLX 20.1 59 1488 39 1000 69 1742
 Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature, 100°F ambient temperature and 100 psig conditions.

EMEA FLX 1.1

Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 1.1 75 127 0.20 115/1/60  1" 0.43 137 62


EMEA FLX 1.2

Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 1.2 100 170 0.21 115/1/60  1" 0.43 152 69


EMEA FLX 1.5

Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 1.5 150 255 0.25 230/1/60  2" 0.59 179 81


EMEA FLX 2.1

Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 2.1 200 340 0.15 230/1/60  2" 0.85 180 82


EMEA FLX 3.1

EMEA Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 3.1 300 509 0.25 460/3/60  2" 1.30 278 126


EMEA FLX 4.1

Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 4.1 400 680 0.17 230/1/60  2" 1.66 338 153


EMEA FLX 5.5

Flex Series Models

Dryer
Model
Inlet Flow Pressure Drop Voltages Inlet/Outlet
Connections
Operating Power Approx
Weight
SCFM M3/H BAR IN KW LB KG
FLX 5.5 550 935 0.20 460/3/60  2" 2.00 393 178
