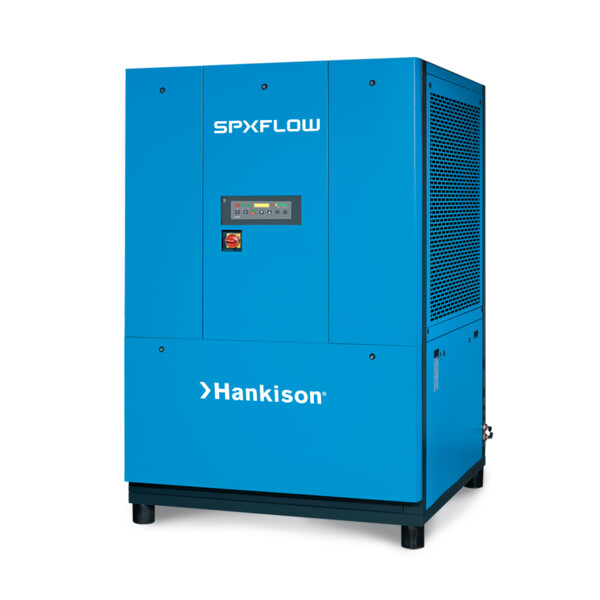

HES Series - Energy Saving Refrigerated Air Dryers 2500-3000 scfm

Product Type:
Air And Gas Treatment / Refrigerated Compressed Air Dryers

The HES Series reduces energy consumption through innovative technology--the best value solution for your heavy-duty air demand profiles.

Features

Digital Evaporator Technology continues the Hankison tradition of stable 38°F (3°C) dew points. The HES Series, offers energy saving advantages over traditional non-cycling, cycling and variable speed designs. Hankison technology platforms of heat exchangers, filtration and refrigeration are CSA and UL certified.

Rapid Return-On-Investment (ROI)
The HES Series is designed to provide a rapid return on investment by:

  • Reducing the dryer's energy consumption down to 9% (91% savings) at 0% load
  • Precise matching of average air flow (heat load) with the required input kW power
  • Qualifying for energy rebates offered by utility companies
  • Maintaining a stable 38°F (3°C) dew point with no dew point spikes

Hankison crafts quality refrigerated dryers engineered to match the specific air demands of your compressed air system.

Specifications
MODEL Rated Flow 1 Voltages 2 Power 3 Inlet/Outlet
Connections 4
scfm nm3/h V/ph/Hz kW
HES800 800 1359 Standard:
380-420/3/50
460/3/60


Optional:
230/3/60
575/3/60
4.71 3” FLG
HES1000 1000 1699 6.73 3” FLG
HES1250 1250 2124 7.40 4” FLG
HES1500 1500 2549 9.80 4” FLG
HES1750 1750 2973 13.00 6” FLG
HES2000 2000 3398 14.90 6” FLG
HES2500 2500 4248 16.80 6” FLG
HES3000 3000 5097 18.20 6” FLG



Dryers meet agency approvals: CSA (CAN /CSA-C22.2 No.236-05) - Heating and Cooling Equipment and U L Standard No.1995.
Canadian Registration Numbers- standard separator vessel and optional cold coalescing vessel.
1 Dryer flow ratings are in accordance with ISO 7183 (option A2) conditions: inlet air at 100 psig (7 barg) and 100°F (38°C) saturated, ambient air at 100°F (38°C), operating on 60 Hz power supply.
2 Optional Voltages: 575/3/60 models utilize mounted transformers to step-down incoming power to 460/3/60; 230/3/60 models utilize mounted transformers to step-up to 460/3/60.
3 Full flow kW value operating on 460/3/60 Hz power supply.
4 DIN Flanges available.



Maximum Working
Pressure
Minimum Working
Pressure
Maximum Inlet Air
Temperature
Minimum Inlet Air
Temperature
Maximum Ambient Air
Temperature
Minimum Ambient Air
Temperature
psig barg psig barg °F °C °F °C °F °C °F °C
232 16 30 2 130 54 40 4 110 43 40 4



Dimensions

HES800

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES800 85 49 41 1,124

HES1000

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES1000 85 49 41 1,146

HES1250

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES1250 85 49 51 1,521

HES1500

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES1500 85 49 51 1,563

HES1750

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES1750 85 55 60 1,940

HES2000

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES2000 85 55 60 1,997

HES2500

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES2500 85 55 60 2,315

HES3000

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HES3000 85 55 60 2,646
