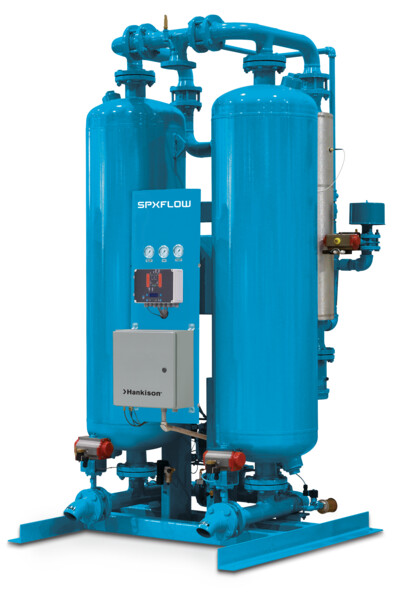

HPD Series - Heated Purge Desiccant Dryers

Product Type:
Air And Gas Treatment / Desiccant Compressed Air Dryers

Hankison HPD Series Dryers Slash Purge Air Energy Costs

Features

Hankison HPD Series dryers will produce the design dew point while operating continuously at maximum rated flow (100% duty cycle) at CAGI ADF 200 inlet standards of 100°F inlet temperature and 100% relative humidity at 100 psig.

Standard HPD Series (Heated Blower Purge) Desiccant Compressed Air Dryers: -4°F to -40°F Pressure Dew Points
Designed for applications that were previously forced to accept a 40°F pressure dew point when simple protection against seasonal freezing is the issue. The standard design delivers ISO 8573.1 dew points between Class 2 and Class 3 automatically. Class 2 (40°F) dew points protect against freezing during low ambient conditions and Class 3 (4°F) dew points keep your air system bone dry during the heat of summer. Applications that require Class 2 (-40°F) dew points year round simply need to select the Free-Air (FA) Supercharger option package

Energy Management System
The EMS uses rugged temperature- & humidity-sensing technology that does not require calibration. Constant desiccant bed monitoring ensures stable dew point control. Algorithm-based A3 PurgeTechnology™ controls precisely engage the FA Supercharger when needed to manage the bed regeneration cycles and boost the airflow through the tower. Compressed purge air volume is reduced, further optimizing energy conservation.

An HPD Series dryer with an EMS package may enable the use of a smaller air compressor. Total system efficiency would then be superior due to the linear energy-saving potential of the dryer. Purge air savings of up to 15% are possible in direct proportion to demand when compared to typical heatless designs. Consistent -40°F pressure dew points and fast returns-on-investment are automatic year round.

Specifications
MODEL INLET FLOW
@ 100 PSI
(6.7 BARG)
HEATER
RATED
OUTPUT
FULL LOAD
(AVERAGE)
INLET/OUTLET
CONNECTIONS
HF SERIES
PREFILTER
HTA SERIES
AFTERFILTER
SCFM NM3/H KW KW IN (RECOMMENDED)
HPD300 300 510 4.5 2.0 1 1/2" NPT HF-36-12-DGL HTA400
HPD400 400 680 6.0 2.7 1 1/2" NPT HF5-40-16-DG HTA400
HPD500 500 850 7.0 3.3 2" NPT HF5-44-20-DG HTA600
HBP600 600 1,019 8.0 4.0 2" NPT HF5-44-20-DG HTA600
HBP750 750 1,274 10.0 5.0 3" FLG HF5-48-20-DG HTA1200
HBP900 900 1,529 12.0 6.0 3" FLG HF5-54-24-G HTA1200
HBP1050 1050 1,784 14.0 7.0 3" FLG HF5-56-24-G HTA1200
HBP1300 1300 2,209 17.0 8.7 3" FLG HF5-60-24-G HTA1800
HBP1500 1500 2,549 19.0 10.0 3" FLG HF5-60-24-G HTA1800
HBP1800 1800 3,058 23.0 12.0 3" FLG HF5-60-24-G HTA1800
HBP2200 2200 3,738 28.0 14.7 4" FLG HF5-64-4F-G HTA2400
HBP2600 2600 4,417 33.0 17.4 4" FLG HF5-68-4F-G HTA3000
HBP3200 3200 5,437 40.0 21.4 4" FLG HF5-72-6F-G HTA4800



1 Performance data per CAGI Standard ADF 200 for Desiccant Compressed Air Dryer. Rating conditions are 100°F (37.8°C) inlet 100 psig (6.7 barg) inlet pressure, 100% relative humidity, 100°F (37.8°C) ambient temperature, and 5 psi (0.35 bar) pressure drop.
* Consult factory for larger models.

Dimensions

HPD300

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD300 98 48 43 1,400

HPD400

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD400 105 53 50 1,800

HPD500

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD500 105 53 50 1,800

HPD600

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD600 108 55 50 2,000

HPD750

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD750 114 60 62 2,4000

HPD900

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD900 114 60 62 2,4000

HPD1050

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD1050 113 64 62 2,9000

HPD1300

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD1300 118 66 62 3,400

HPD1500

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD1500 116 80 62 5,100

HPD1800

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD1800 116 80 62 5,100

HPD2200

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD2200 124 85 64 7,800

HPD2600

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD2600 124 85 64 7,800

HPD3200

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPD3200 121 97 64 9,000
