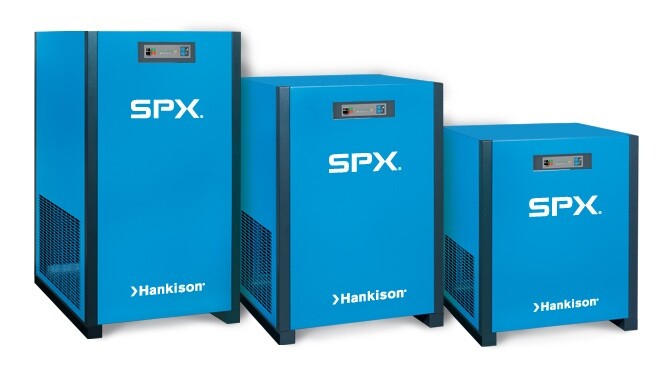

HPET Series - High-Pressure Refrigerated Air Dryers

Product Type:
Air And Gas Treatment / Refrigerated Compressed Air Dryers

The Solution for PET Blow Molding Compressed Air Installations!

Features
Hankison HPET Series dryers are built in accordance to UL/CSA certification and designed for 725 psig (51 bar) operation. The HPET system incorporates compact plate heat exchanger technology in order to maintain stable 38°F (3°C) dew points for the life of the unit.

HPET dryers are tailored for specific industrial applications to include blow molding, aeronautical valve testing, pharmaceutical packaging and injection molding. The time-tested, field proven technology will provide years of trouble free service and are supported through Hankison's global network of service professionals.

HPET is the solution!

Specifications
MODEL FLOW
RATE1
SCFM
FLOW
RATE1
NM3/H

PRESSURE
DROP
PSIG

PRESSURE
DROP
BAR
MAX.
WORKING
PRESSURE
PSIG
MAX.
WORKING
PRESSURE
BAR
REFRIGERATION
SYSTEM
HP
VOLTAGES
V/ph/Hz
INLET/OUTLET
CONNECTIONS4
HPET-0.17 30 51     725 50 0.17 115/1/60 0.5 NPT
HPET-0.2 45 76     725 50 0.20 0.5 NPT
HPET-0.25 65 110     725 50 0.25 0.5 NPT
HPET-0.33 95 161     725 50 0.33 0.5 NPT
HPET-0.5 165 221 1.7 0.12 725 50 0.50 100/1/50
115/1/60
208-230/1/60
220-240/1/50
1.5 NPT
HPET-0.75 200 340 1.9 0.13 725 50 0.75 1.5 NPT
HPET-1.0 300 510 2.4 0.17 725 50 1.00 460/3/60
380-420/3/50
1.5 NPT
HPET-1.5 500 850 4.6 0.32 725 50 1.50 1.5 NPT
HPET-2.5 750 1275 4.5 0.32 725 50 2.50 1.5 NPT
HPET-3.5 1000 1700 3.7 0.26 725 50 3.50 1.5 NPT
HPET-4 1250 2125 3.1 0.22 725 50 4.00 3 NPT
HPET-6 1750 2975 6.2 0.43 725 50 6.00 3 NPT
HPET-7.5 2000 3400 3.6 0.25 725 50 7.50 3 NPT
HPET-10 3000 5100 4.6 0.32 725 50 10.00 3 NPT



1 Rated Flow Capacity - Conditions are 100°F (38°C) inlet temperature, saturated with water vapor, 725 psig (50 bar) inlet pressure, 100°F (38° C) ambient temperature, 60Hz . 50Hz units are available.

Dimensions

HPET-0.17

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-0.17 26 18 21 95

HPET-0.2

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-0.2 26 18 21 95

HPET-0.25

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-0.25 26 18 21 95

HPET-0.33

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-0.33 26 18 21 95

HPET-0.5

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-0.5 37.6 25.6 19.6 251

HPET-0.75

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-0.75 37.6 25.6 19.6 279

HPET-1.0

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-1.0 38.6 32.2 32.2 425

HPET-1.5

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-1.5 38.6 32.2 32.2 463

HPET-2.5

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-2.5 58.1 32.2 41.6 691

HPET-3.5

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-3.5 58.1 32.2 41.6 734

HPET-4

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-4 59 52 52 889

HPET-6

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-6 59 52 52 939

HPET-7.5

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-7.5 59 52 52 1,204

HPET-10

MODEL DIMENSIONS (INCHES) WEIGHT
LBS
H W D
HPET-10 59 52 52 1,329
