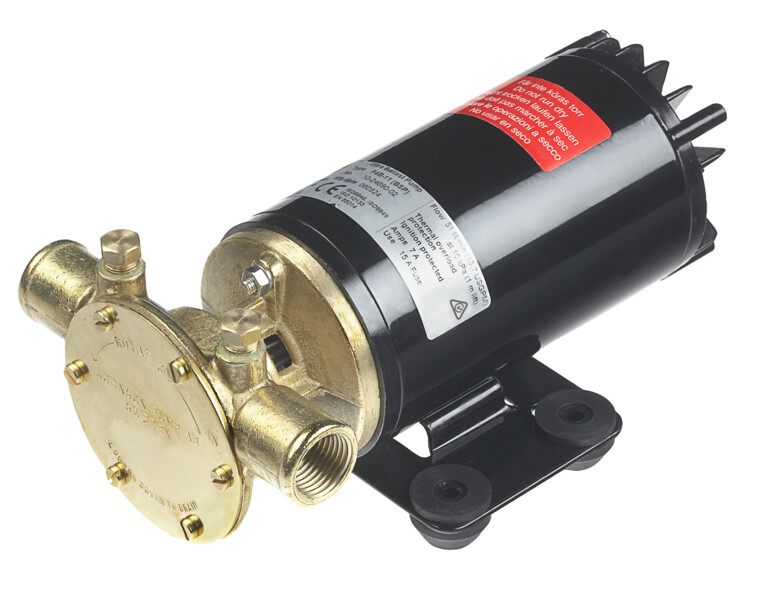

Ultra Ballast Pumps
Product Type(s) : Ballast Pumps
Description :
WHERE TO BUY
Designed to quickly fill or, when reversed, drain a ballast tank. Capable of pumping fresh or sea water, the pump’s robust design can handle the rigors of continuous duty usage, is reversible, and has a built-in thermal overload for added protection.
产品规格
Technical Data
| Part No. | Description | Body | Impeller | Seal | Connection | Length | Width | Height | Weight | |
| 10-24690-01 | F4B-11 Ultra Ballast 12V | Bronze | 09-824P-1* | Lip seal | Hose 1" / ½" BSP | 202 mm – 8" | 120 mm 4.72" | 90 mm – 3.54" | 3 kg – 6.6 lbs | |
| 10-24690-02 | F4B-11 Ultra Ballast 24V | Bronze | 09-824P-1* | Lip seal | Hose 1" / ½" BSP | 202 mm – 8" | 120 mm – 4.72" | 90 mm – 3.54" | 3 kg – 6.6 lbs | |
| 10-24690-09 | F4B-12 Ultra Ballast 12V | Bronze | 09-824P-2** | Lip seal | Hose 1" / ½" BSP | 202 mm – 8" | 120 mm – 4.72" | 90 mm – 3.54" | 3 kg – 6.6 lbs | |
| 10-24690-10 | F4B-12 Ultra Ballast 24V | Bronze | 09-824P-2** | Lip seal | Hose 1" / ½" BSP | 202 mm – 8" | 120 mm – 4.72" | 90 mm – 3.54" | 3 kg – 6.6 lbs | |
| 09-824P-2 | Impeller Kit F4 EZ Polyurethane Ballast | |||||||||
| *Includes MC97/EPDM-impeller. **Includes Polyurethane Impeller (orange) | ||||||||||
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Pressure and Capacity Data
(Based on water at 20˚C/68˚F)
| MC97 | ||||||
| Pressure | Capacity | Ampere draw | ||||
| Bar | kPa | psi | l/min | USGM | 12V | 24V |
| 0 | 0 | 0.0 | 54 | 14.0 | 14.5 | 7 |
| 0.1 | 10 | 1.5 | 53 | 13.8 | 15 | 7.5 |
| 0.3 | 30 | 4.4 | 49 | 12.7 | 16 | 8 |
| 0.6 | 60 | 8.7 | 44 | 11.4 | 18 | 9 |
| 0.9 | 90 | 13.1 | 38 | 9.9 | 20 | 10 |
| 1.2 | 120 | 17.4 | 31 | 8.1 | 22 | 11 |
| 1.5 | 150 | 21.8 | 22 | 5.7 | 24 | 12 |
| Polyurethane | ||||||
| Pressure | Capacity | Ampere draw | ||||
| Bar | kPa | psi | l/min | USGM | 12V | 24V |
| 0 | 0 | 0.0 | 52 | 13.5 | 12 | 4.8 |
| 0.1 | 10 | 1.5 | 50 | 13.0 | 12.5 | 4.9 |
| 0.3 | 30 | 4.4 | 47 | 12.2 | 12.7 | 5.5 |
| 0.6 | 60 | 8.7 | 39 | 10.1 | 15.5 | 6.2 |
| 0.9 | 90 | 13.1 | 29 | 7.5 | 16.2 | 6.8 |
| 1.2 | 120 | 17.4 | 15 | 3.9 | 17.5 | 7.3 |
