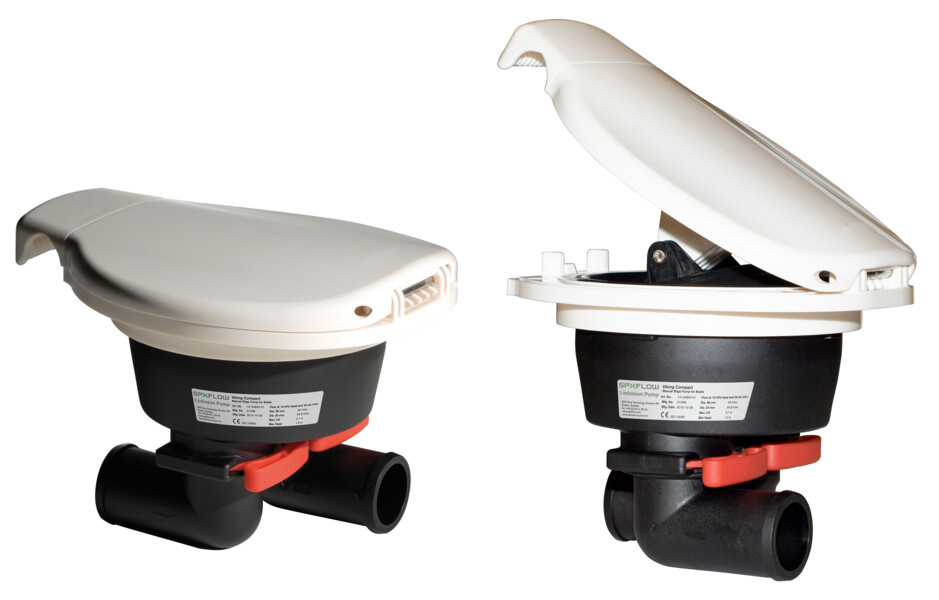

Viking Compact - Manual Hand-Powered Bilge Pump

Product Type(s) : Manual Bilge Pumps
Description :

Full-capacity, hand-powered bilge pump perfect for installation in tight spaces. This rugged, yet sleekly designed, single-chamber diaphragm pump provides first-rate performance and is a snap to install.

WHERE TO BUY

FEATURES

The Viking Compact can be fitted in minutes from one side of the bulkhead with just four screws, self-sealing against the surface with a durable, watertight gasket. With the pump house recessed behind the bulkhead, only the handle is visible from the cabin or cockpit.

The inlet and outlet ports can be swiveled 360° and are delivered in two sizes with every pump, Ø 25mm (1") and Ø 38mm (1½"). Naturally, the Viking Compact has KlickTite connectors fitted as standard, literally making hose connections a snap!

  • Limited 3 Year Warranty
  • Capacities with Ø 25 mm connections 34.5 L/min (9.1 US GPM); with Ø 38 mm connections 45 L/min (11.9 US GPM)
  • Quick to install from one side of the bulkhead
  • Fits industry standard aperture, even in tight spaces
  • Robust pump handle and cover in-one
  • Self-priming for immediate effect
  • 3.3 m (10'8") combined lift/head
  • Easy, low-cost, low-frequency maintenance
  • Durable gasket for tight fit against the bulkhead
  • Rattle-free design
  • Polypropylene body
  • All metal parts made of stainless steel
  • Easy pump-action, single diaphragm design
  • KlickTite port connectors standard
  • Hose connectors can be turned in any direction
  • Heavy duty non-choke valves throughout
  • High flow tricuspid valve on the outlet port
  • Complies with ISO 15083

DIMENSIONS & SPECIFICATIONS

Material Specifications

Body Polypropylene
Cover ABS
Diaphragm Nitrile rubber
Valves Nitrile rubber (1 leaf and 1 tricuspid valve)
Wetted parts Polypropylene, PA66GF30 plastics and nitrile rubber



Technical Data

Part no. Description Flow at 10 kPa head and 45 strokes/min Maximum lift Maximum head Combined head/lift Max. liquid temp Connection Weight
10-24800-01 Viking Compact Manual Bilge Pump Ø 25 mm connections 34,5 liters/minute (9.1 US gallons/minute) 2.1 meters (7 feet) 1.2 meters (4 feet) 3.3 meters (10.8 feet) +60°C (140°F) KlickTite™ connectors for 1" (25 mm) or 1½" (38 mm) hose 0.675 kg (1.5 pounds)
Ø 38 mm connections 45 liters/minute (11.9 US gallons/minute)



See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
