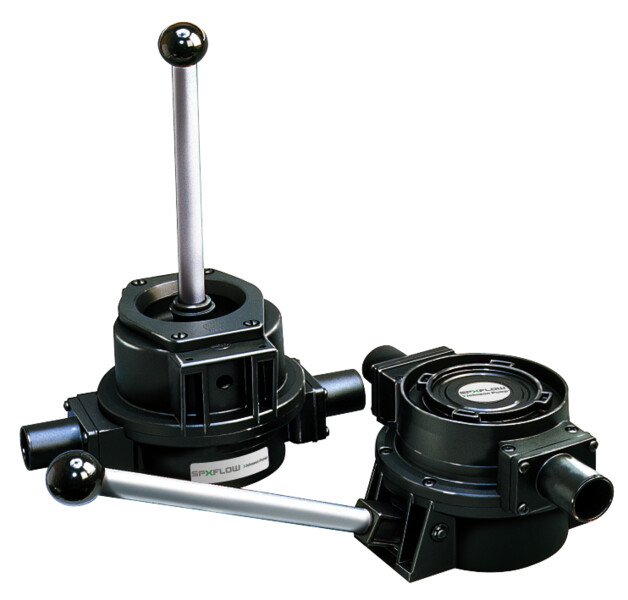

Viking Hand Pump - Thrudeck and Bulkhead
FEATURES
- Limited 3 Year Warranty
- Viking Thrudeck for installation behind vertical wall or under deck with sealing boot, complete with a cover plate
- Viking Bulkhead for surface installation with horizontal lever
- The Viking pump can also be used for pumping toilet waste due to the large valve openings
Technical Data
| Part No. | Description | Capacity data (At 1 m/3.28' suction height: 0.9 l/stroke) |
Max suction height |
| 70-50005 | Viking Hand Pump Thrudeck 1½" | 60 strokes/min --> 54 L/min – 14.5 GPM 80 strokes/min --> 72 L/min – 19 GPM 100 strokes/min --> 90 L/min – 24 GPM |
4 m – 13 ft |
| 70-50025 | Viking Hand Pump Thrudeck 1" | ||
| 70-50007 | Viking Hand Pump Bulkhead 1½" | ||
| 70-50027 | Viking Hand Pump Bulkhead 1" |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Dimensions
| Diameter Ø | 164 mm – 6.45" |
| Handle length | 285 mm – 11.22" |
| Width | 253 mm – 9.96" |
| Height | 133 mm – 5.23" |
| Weight | 2 kg – 4.5 lbs |
