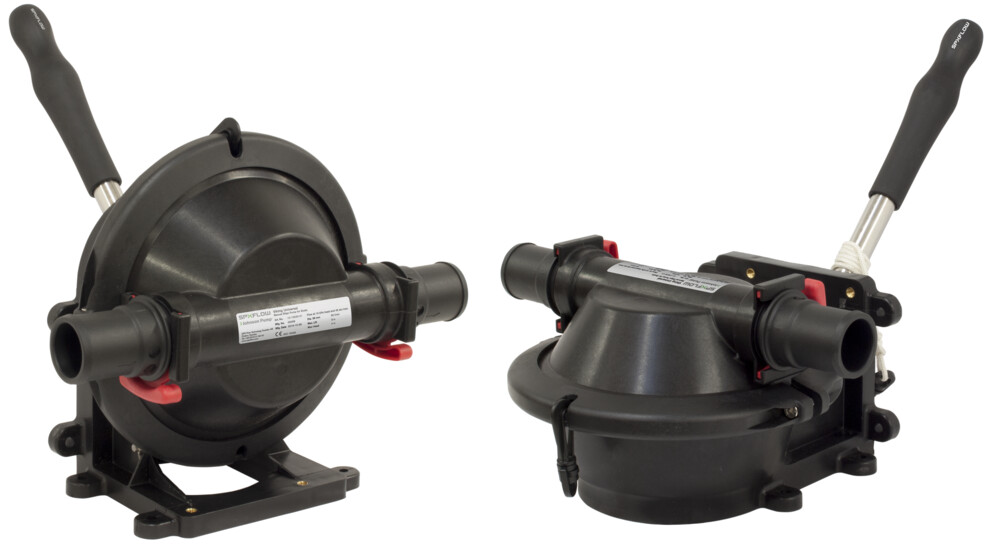

Viking Universal - Manual Hand-Powered Bilge Pump
Product Type(s) : Manual Bilge Pumps
Description :
WHERE TO BUY
Heavy duty, self-priming, hand-powered bilge pump for nearly any type of installation. While designed as a powerful bilge pump, the Viking Universal’s large Ø 38 mm (1½") valves enable the pump to also be used for pumping toilet waste.
产品规格
Material Specifications
| Body and cover | Polypropylene plastic reinforced with 30% fiberglass |
| Diaphragm and valves | Nitrile rubber |
| Wetted parts | PP30GF, PA66 GF30, POM, stainless steel, nitrile rubber |
Technical Data
| Part no. | Description | Flow at 1 m (3.28') head (10 kPa (1.45 psi) pressure and 45 strokes/min | Maximum lift | Maximum head | Combined head/lift | Max. liquid temp | Connection | Weight |
| 10-13530-01 | Viking Universal Manual Bilge Pump | 60 L/min -16 GPM | 3 meters (10 feet) | 4 meters (13 feet) | 7 meters (23 feet) | +60°C (140°F) | KlickTite™ connectors for 1½" (38 mm) hose | 1.5 kg (3.3 lbs) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
