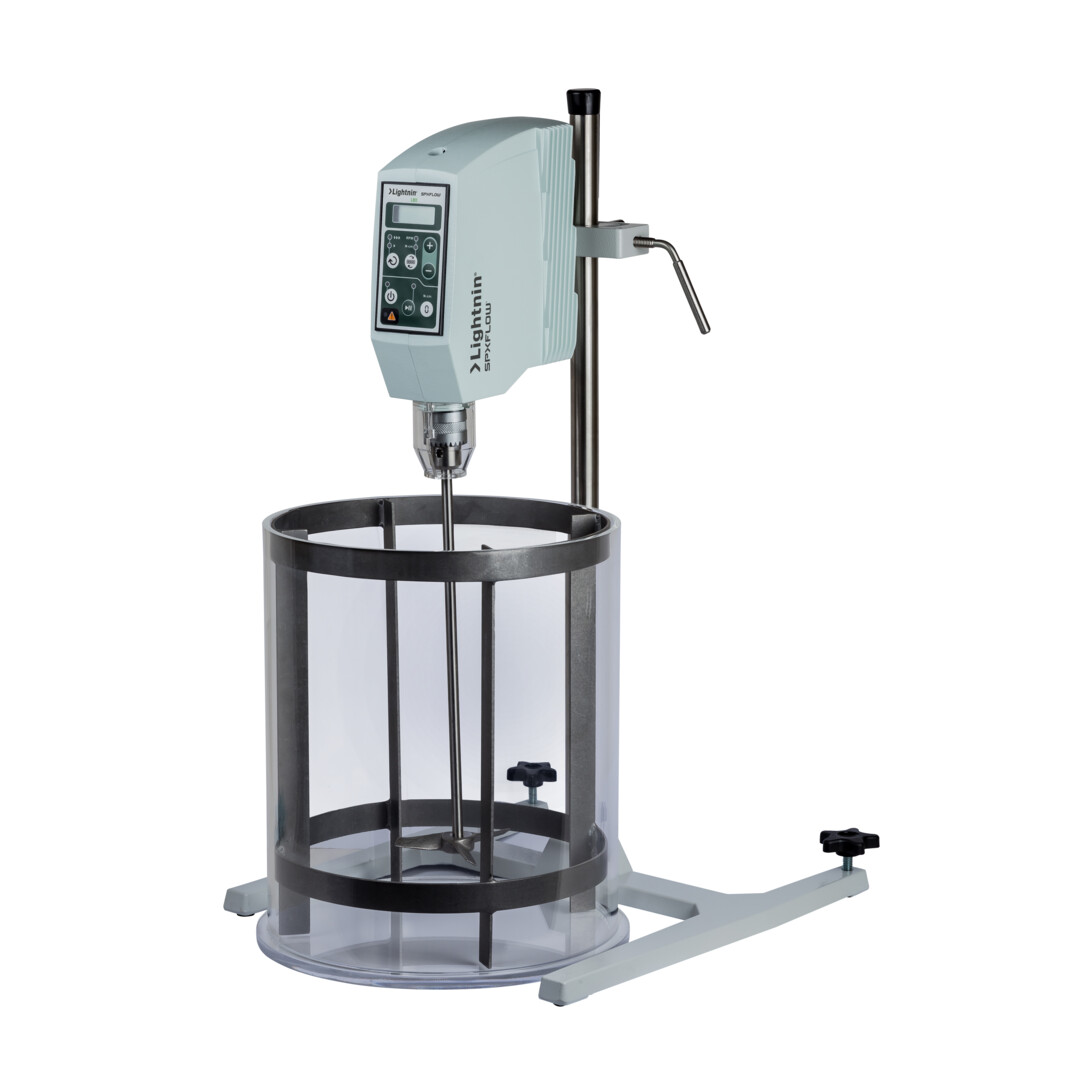

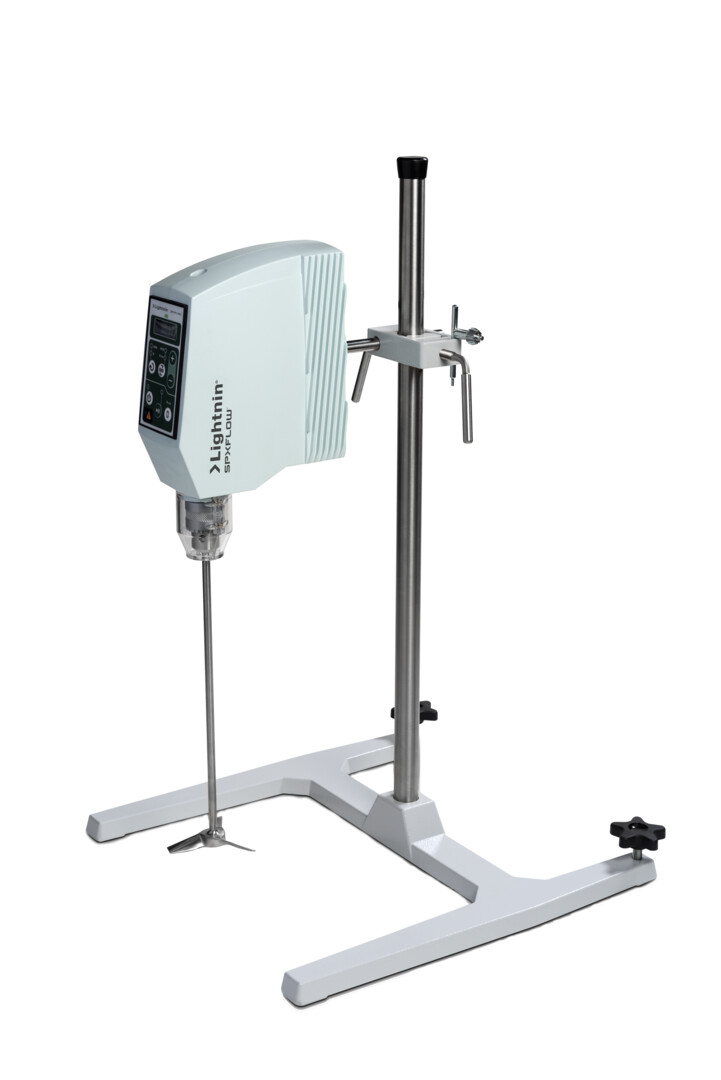

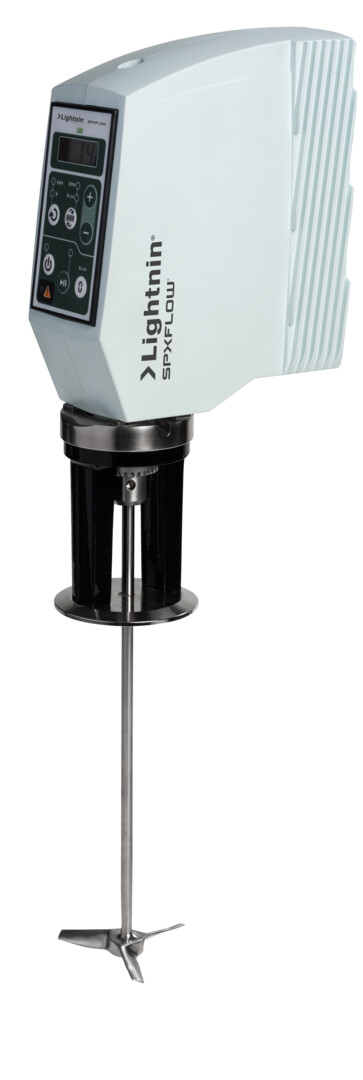

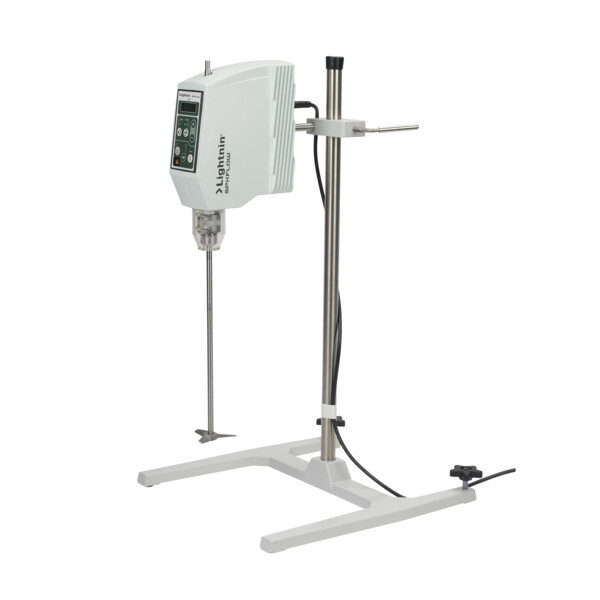

LB2 LabMaster and BioMixer

Product Type(s) : Portable Mixers
Description :

斯必克流体 Lightnin LB2 LabMaster 和 BioMixer 产品适用于实验室和工业应用。 它们具有集成的数字控制和反馈系统，使用户能够精确、轻松地控制混合过程。 再加上 Lightnin 桨叶配置专业知识，可产生一致的结果，这对于验证和放大生产至关重要。
WHERE TO BUY
关键应用

产品规格

  • 规格

低速范围（最大转矩）

  • 20 - 550 rpm
  • 450 Ncm / 40 in-lbs.

高速范围

  • 500 - 2500 rpm
  • 90 Ncm / 8 in-lbs.

机械功率

  • 0.15Kw / 0.2HP

输入电源

  • 单相 115V，50/60 Hz 和 230V，50/60 Hz

混合器电源

  • 5A，150W

重量

  • 5Kg / 11 ± lbs.

速度准确性

  • ± 1 rpm；读数的 ± 1%（以更佳者为准）

扭矩准确性

  • ± 1 in-lb (1 Ncm) 或读数的 ± 5%（以更佳者为准）

认证/环境

  • UL、CSA、CE、RoHS、WEEE 符合，IP42 防护等级

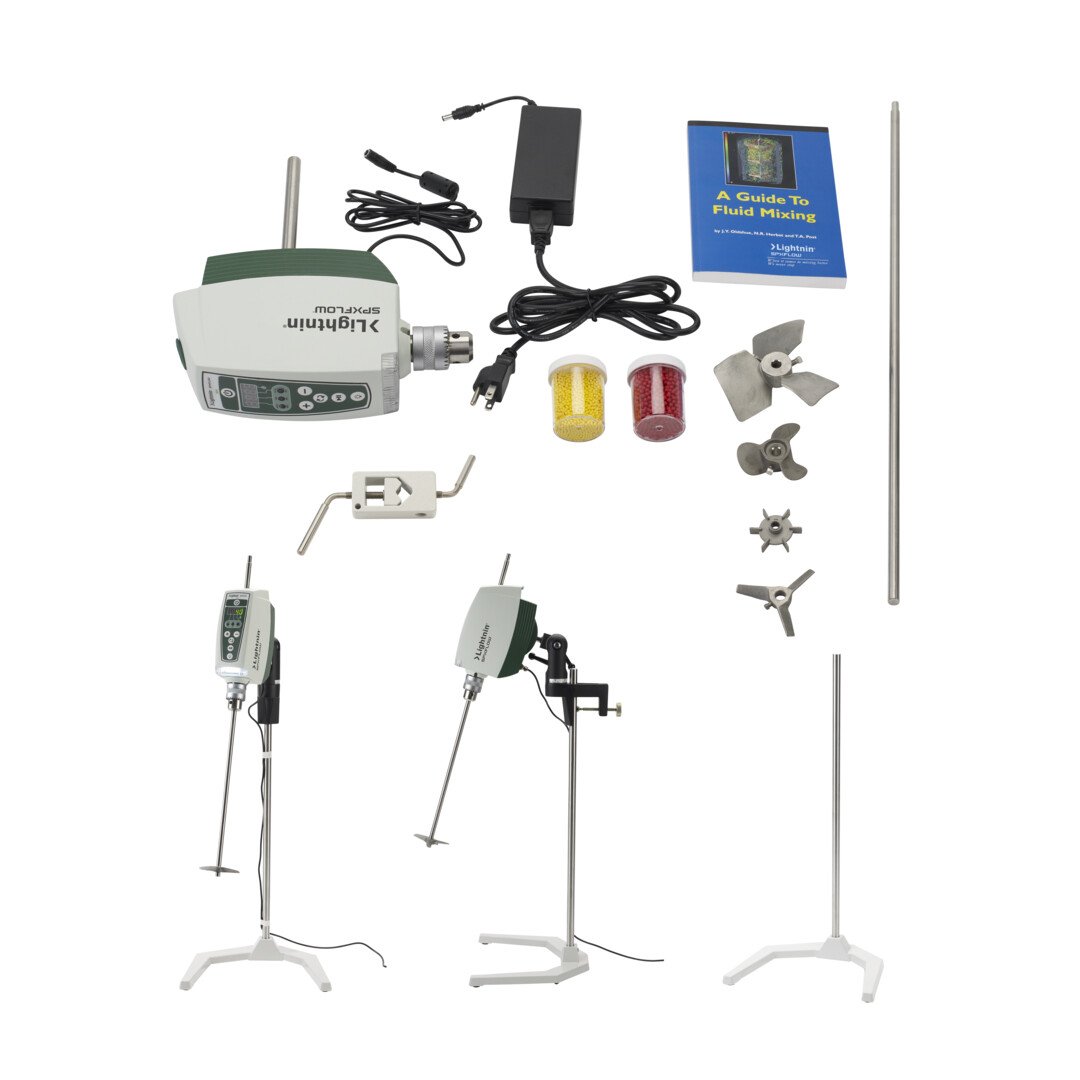

Labmaster - 标准设备

  • 校准证书、不锈钢卡盘、卡盘键、卡盘防护罩、5" 安装柱、电源线和操作说明

Labmaster - 标准设备（非改装型号）

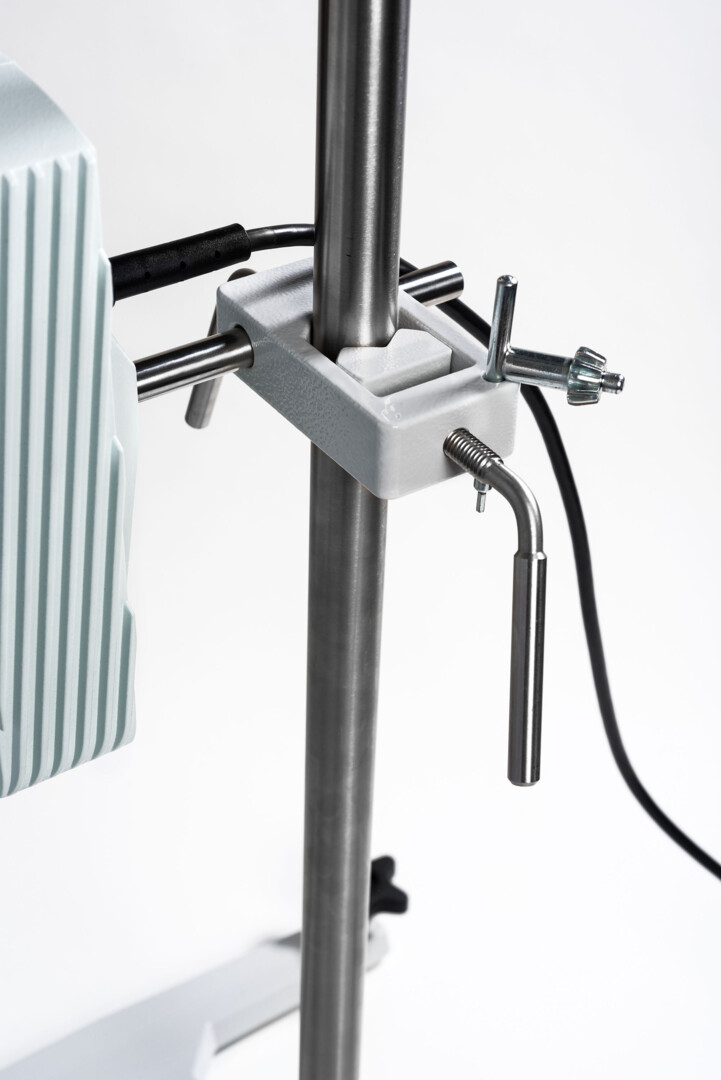

  • 卡箍系统（不包括底架和卡箍）： 杆和通用卡箍
  • 轴： Ø x 610mm (Ø 3/8" x 24") 和 Ø8mm x 610mm (Ø5/16" x 24")

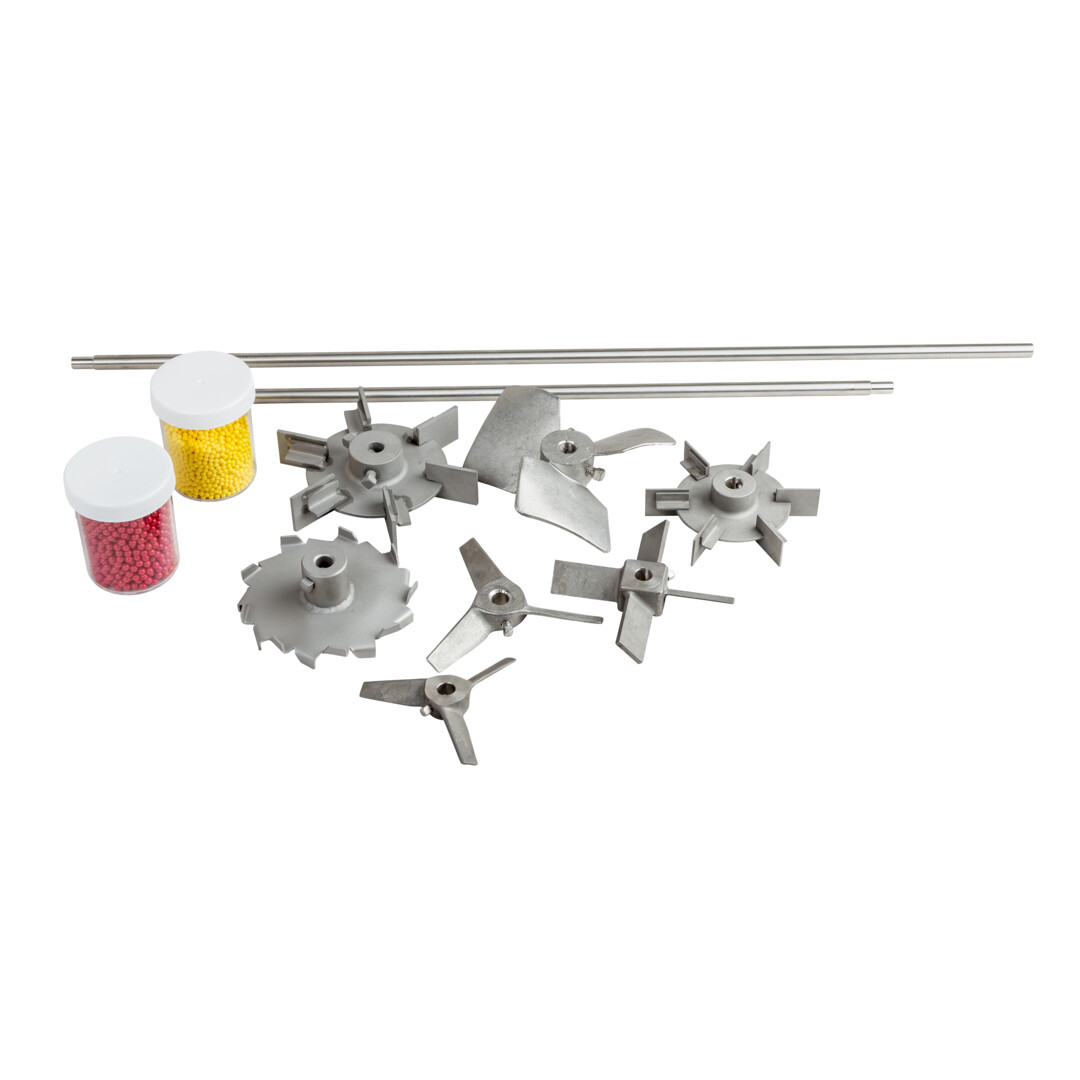

  • 桨叶： A310 86mm (3.4")、A100 79mm (3.1")、R100 51mm (2") 和 A320 127mm (5")
  • 彩色焊缝： 2 套不同颜色

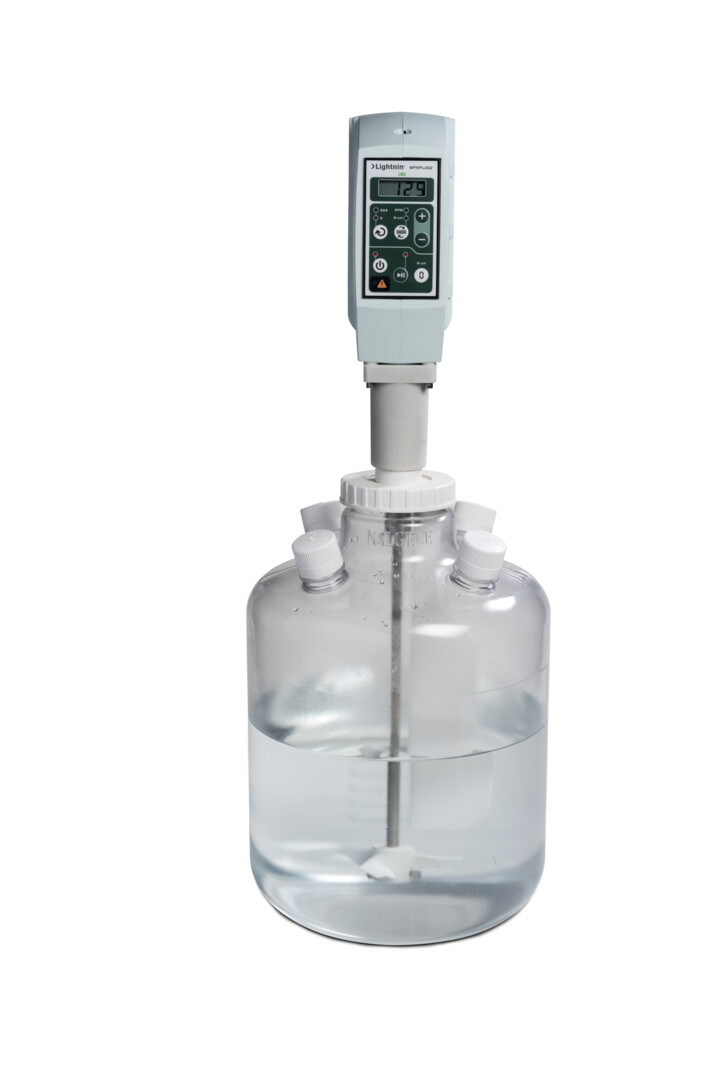

BioMixer - 标准设备

  • 校准证书、料罐和轴转接头、电源线和操作说明。

备件/配件

  • 全系列备件和配件
