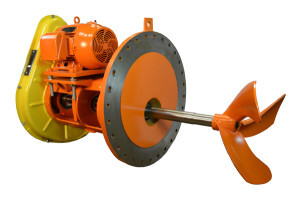

Side Entry Mixing System
FEATURES
RUGGED TRANSMISSION: High-torque toothed belt drives provide long and trouble-free mixer operation.
DURABLE MOTOR MOUNT: Rigid motor mounting provides better reliability and extended drive belt life.
CARTRIDGE MECHANICAL SEAL: For ease of field replacement.
UNIQUE SHUT-OFF DEVICE: Positive locking, corrosion resistant, stainless steel metal-to-metal tapered seat faces ensures ZERO leakage environmental spill risk and provides a safer work area for staff. No need to empty tank for routine maintenance. Our shutoff is rated for extended periods of time – only one shutoff method is ever required.
SWIVEL ANGLE OPTION: 60° rotation of mixer ensures the tank floor is scoured to effectively prevent BS&W build-ups. The swivel ball is sealed with a hydraulic ball seal for ZERO leakage.
STAINLESS STEEL SHAFT: This one piece design eliminates corrosion and maintains the integrity of the tank shutoff device.
SUPERIOR PROPELLER DESIGN: The Forward Rake Propeller utilizes the latest technology in propeller design. The patented geometry creates a stronger collimated flow across the tank to produce up to a 40% improvement in efficiency.
MOTOR OPTIONS: IEC/NEMA Frames, Arctic Duty, Explosion Proof, Chemical Duty, Tropical Duty, UL, CUL or CSA Motors, IEEE 841, ATEX.
RAPID AND ECONOMIC MAINTENANCE: Deep groove ball bearings mounted on sleeves protect the shaft from damage during operation and maintenance. These bearings have a minimum L-10 bearing life of 60,000 hours.
FIXED ANGLE DESIGN: The BSER is also available in fixed angle configurations for blending applications.
AUTOMATIC SWIVEL OPTION: Allows the mixer to be automatically adjusted to desired angles without manual adjustment.
Petroleum Storage Tanks for Refining, Pipelines and Storage.
Philadelphia Mixing Solutions Ltd. has more than 60 years of experience designing side entry agitators, mixers and other products for the oil and gas industry. Our systems are the result of extensive research and represent a continual drive to make side entry agitators that are more effective, more reliable and more efficient. Our side entry tank mixers are optimized for use in petroleum, refinery, transportation and storage terminals. Read on to learn more or contact a Philadelphia Mixing Solutions representative for assistance with our side entry agitators.
