W73 Series - Double Seat Mix Proof Divert Valves

Product Type(s) : Double Seat Valves
Description :

防混阀可在同一个阀体内安全分离不同产品。
WHERE TO BUY

产品规格

  • 规格

材料

  • 产品接液零部件： 不锈钢，ASTM 316L (UNS-S31603)；(DIN-1.4404)
  • 非产品： 不锈钢，ASTM 304 (UNS-S30400)；(DIN-1.4301)

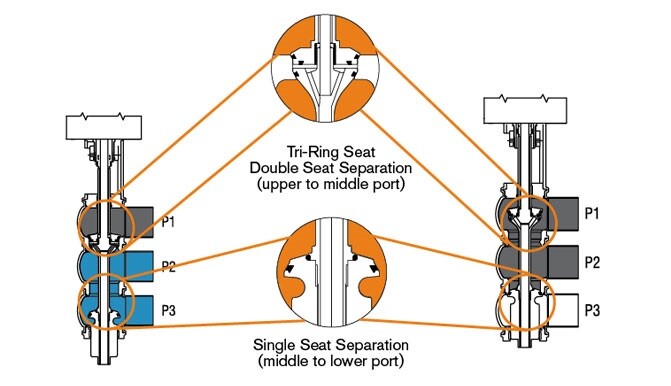

  • 阀座： 上下阀杆上的 Tri-Ring 压缩密封
  • 弹性体： EPDM 或 FKM（氟橡胶）
  • 表面粗糙度：≤ 32 Ra (≤0.8 m) 可按要求提供其他表面处理。

工作压力额定值

  • 1½" - 3" (38mm - 76mm) 尺寸 - 150 psig (10 bar)
  • 4" (102mm) 尺寸 - 100 psig (7 bar)
  • 4" (102mm) Sch. 5 尺寸 - 150 psig (10 bar)
  • 6" (152mm) 尺寸 - 咨询工厂
  • 6" (152mm) Sch. 5 尺寸 - 150 psig (10 bar)

VIDEOS

W70 系列防混阀座清洁移动调整程序

防混阀阀阵演示
