AquaH 船舶用水ヒーター

Product Type(s) : Marine Water Heater
Description :

AquaH - 最大ストレージ容量 22~80 リットル(5.3~19.3 ガロン)の革新的な AISI 316 ステンレス製水ヒーターシリーズです。デュアルヒーティング(標準装備)- 電気加熱と 2 番目の熱源に基づく間接加熱。船舶エンジンや発電機セットの冷却システムなどに使用、

WHERE TO BUY

FEATURES

  • 5年間の限定保証付き
  • ヒーターは AISI 304 ステンレス製ケース入りで、取付金具を含む、頑丈な小型プラスチックエンドカバーが付属しています。
  • AISI 316L ステンレス製内部表面
  • 断熱ポリウレタンフォーム
  • 安全バルブとノンリターンバルブは 6 Bar +/- 0.5 Bar に設定
  • エンジンウェア継手 1/2" BSP
  • 電気発熱体はインコロイの 500W および 1200W で利用でき、エンジン熱が利用できず、230V が利用できる場合は温水を発生できます。
  • 電気加熱時の温度調整が可能な安全サーモスタットが付属しています。
主な用途
1. 水タンク   7. アキュムレータータンク
2. Pumprotector インレットストレーナ   8. 水ヒーターユニット
3. Aqua Jet 水圧ポンプ   9. オン/オフ バイポーラスイッチ
4. バッテリー   10. モーター
5. ヒューズ   11. チェックバルブ
6. オン/オフ スイッチ   12. シャットオフバルブ

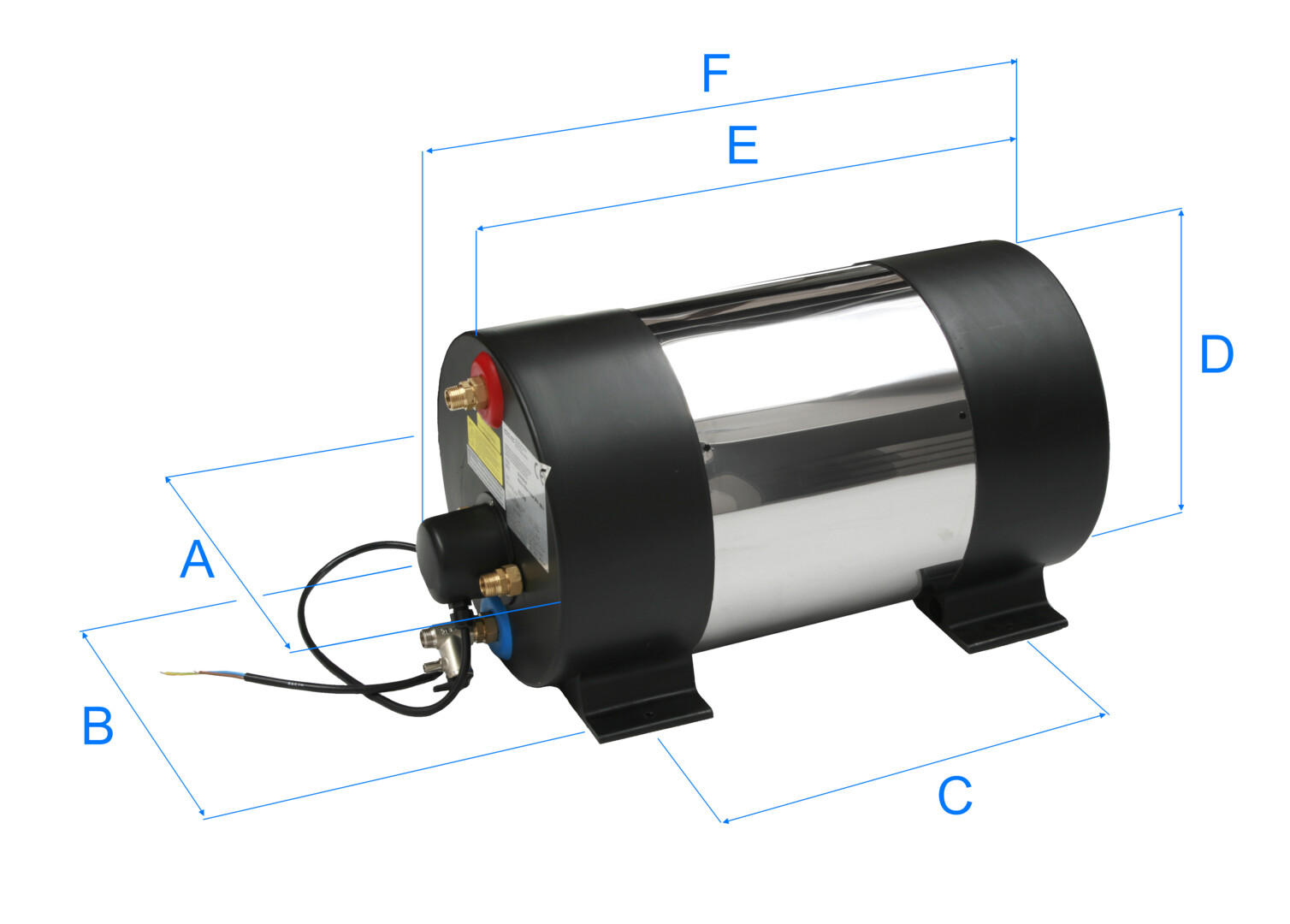

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

寸法

部品番号 電源 ストレージの容量 空重重量 A B C D E F
  w lt(ガロン) kg(lbs) mm - in mm - in mm - in mm - in mm - in mm - in
56-47455-01/02 1200 22
(5.81)
10
(22)
322
12.7"
290
11.4"
235
9.25"
325
12.8"
410
16.1"
485
19.1"
56-47455-03/04 500
56-47456-01/02 1200 30
(7.93)
11,5
(25.4)
322
12.7"
290
11.4"
370
14.6"
325
12.8"
545
21.5"
620
24.4"
56-47456-03/04 500
56-47457-01/02 1200 45
(11.9)
15
(33.1)
322
12.7"
290
11.4"
625
24.6"
325
12.8"
805
31.7"
880
34.6"
56-47457-03/04 500
56-47458-01/02 1200 60
(15.9)
17,3
(38.1)
322
12.7"
290
11.4"
810
31.9"
325
12.8"
990
39"
1065
41.9"
56-47458-03/04 500
56-47459-01/02 1200 80
(21.1)
20
(44.1)
322
12.7"
290
11.4"
1090
42.9"
325
12.8"
1270
50"
1345
53"
56-47459-03/04 500
電源 220-240 V ~ 50 Hz または 120 V - 60 Hz
給水接続 ½"



技術データ

部品番号 説明 性能 電圧 接続部
56-47455-01 AquaH 船舶用水ヒーター 1200W 6 GAL 22L 220V BSP
56-47455-02 AquaH 船舶用水ヒーター 1200W 6 GAL 22L 120V NPT
56-47455-03 AquaH 船舶用水ヒーター 500W 6 GAL 22L 220V BSP
56-47455-04 AquaH 船舶用水ヒーター 500W 6 GAL 22L 120V NPT
56-47456-01 AquaH 船舶用水ヒーター 1200W 8 GAL 30L 220V BSP
56-47456-02 AquaH 船舶用水ヒーター 1200W 8 GAL 30L 120V NPT
56-47456-03 AquaH 船舶用水ヒーター 500W 8 GAL 30L 220V BSP
56-47456-04 AquaH 船舶用水ヒーター 500W 8 GAL 30L 120V NPT
56-47457-01 AquaH 船舶用水ヒーター 1200W 11 GAL 45L 220V BSP
56-47457-02 AquaH 船舶用水ヒーター 1200W 11 GAL 45L 120V NPT
56-47457-03 AquaH 船舶用水ヒーター 500W 11 GAL 45L 220V BSP
56-47457-04 AquaH 船舶用水ヒーター 500W 11 GAL 45L 120V NPT
56-47458-01 AquaH 船舶用水ヒーター 1200W 15 GAL 60L 220V BSP
56-47458-02 AquaH 船舶用水ヒーター 1200W 15 GAL 60L 120V NPT
56-47458-03 AquaH 船舶用水ヒーター 500W 15 GAL 60L 220V BSP
56-47458-04 AquaH 船舶用水ヒーター 500W 15 GAL 60L 120V NPT
56-47459-01 AquaH 船舶用水ヒーター 1200W 20 GAL 80L 220V BSP
56-47459-02 AquaH 船舶用水ヒーター 1200W 20 GAL 80L 120V NPT
56-47459-03 AquaH 船舶用水ヒーター 500W 20 GAL 80L 220V BSP
56-47459-04 AquaH 船舶用水ヒーター 500W 20 GAL 80L 120V NPT



Johnson Pump 海洋向けカタログで本製品を参照してください。US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

OPTIONS & PERFORMANCE

Aqua H 加熱時間

1200W

  電源 ストレージの容量 水温 °C (°F)
部品番号 W lt(ガロン) 20
(68)
25
(77)
30
(86)
35
(95)
40
(104)
45
(113)
50
(122)
55
(131)
56-47455-01/02 1200 22 (5.81) 6 12 19 25 31 38 44 51
56-47456-01/02 1200 30 (7.93) 8 17 26 34 43 52 61 69
56-47457-01/02 1200 45 (11.9) 13 26 39 52 65 78 91 104
56-47458-01/02 1200 60 (15.9) 17 34 52 69 87 104 122 139
56-47459-01/02 1200 80 (21.1) 23 46 69 93 116 139 162 186
初期温度 15°C



500W

  電源 ストレージの容量 水温 °C (°F)
部品番号 w lt(ガロン) 20
(68)
25
(77)
30
(86)
35
(95)
40
(104)
45
(113)
50
(122)
55
(131)
56-47455-03/04 500 22 (5.81) 15 30 46 61 76 92 107 122
56-47456-03/04 500 30 (7.93) 20 41 62 83 104 125 146 167
56-47457-03/04 500 45 (11.9) 31 62 94 125 156 188 219 251
56-47458-03/04 500 60 (15.9) 41 83 125 167 209 251 293 334
56-47459-03/04 500 80 (21.1) 55 111 167 223 279 334 390 446
初期温度 15°C
