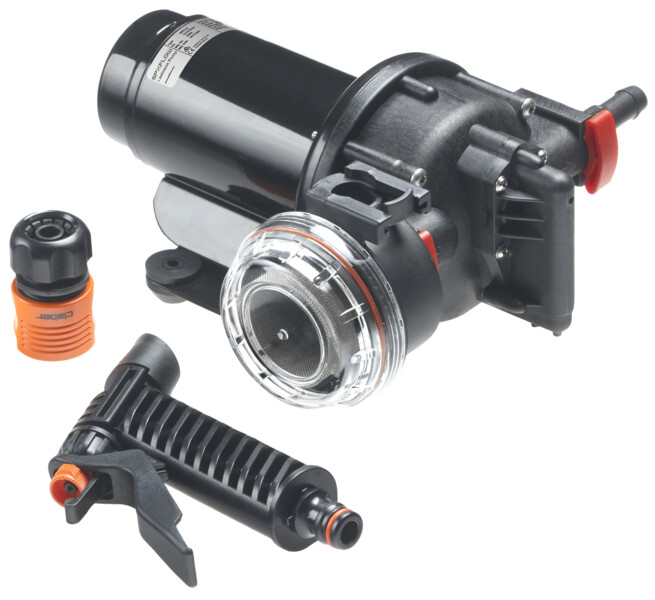

Aqua Jet - WD Pumps

Product Type(s) : Wash Down Pumps
Description :

The quiet and pulsation-free Aqua Jet five-chamber diaphragm wash down pumps provide the perfect wash down solution for cleaning recreational equipment. With a higher pressure of up to 5 bar, clean-up is faster and easier than ever before.

WHERE TO BUY

FEATURES

  • Limited 3 Year Warranty
  • Up to 5 bar (73 psi) pressure
  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Integrated pressure switch turns pump on and off automatically when the spray nozzle is opened and closed
  • Dry running without damage
  • Low power consumption
  • Easy, low cost maintenance
  • PUMProtector inlet strainer and trigger nozzle included as standard
  • Quick disconnect fitting
  • Hose connections for ½" hose. Both BSP and NPT connections included
  • Long service life





Theory of Operation

As the pump runs, pressure is increased until it reaches the pre-defined pressure level (2.8 bar – 41 psi for WD 2.9, 5 bar – 70 psi for WD 3.5 & 5.2). When the pre-defined pressure level is reached the integrated pressure switch automatically shuts the pump off.

The pump is equipped with positively checking outlet valves which ensure that the pressure is maintained after the pump shuts off.

When water is demanded the pressure decreases. After a moderate drop in pressure, the integrated pressure switch automatically turns the pump back on.

Due to their durable construction and thoughtful design, the WD-pumps will provide many years of service.


DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

Dimensions

WD 2.9

Part No. Length Width Height Weight
10-24728-03 204 mm - 8.02" 197 mm - 7.76" 110 mm - 4.33" 1.6 kg - 3.5 lbs
10-24728-04 204 mm - 8.02" 197 mm - 7.76" 110 mm - 4.33" 1.6 kg - 3.5 lbs

WD 3.5

Part No. Length Width Height Weight
10-13399-03 236.5 mm - 9.31" 210 mm - 8.25" 116 mm - 4.58" 2 kg - 4.5 lbs
10-13399-04 236.5 mm - 9.31" 210 mm - 8.25" 116 mm - 4.58" 2 kg - 4.5 lbs

WD 5.2

Part No. Length Width Height Weight
10-13407-07 240 mm - 9.46" 214 mm - 8.42" 110 mm - 4.33" 2 kg - 4.5 lbs
10-13407-08 240 mm - 9.46" 214 mm - 8.42" 110 mm - 4.33" 2 kg - 4.5 lbs

Material Specifications

Motor  Aqua Jet WD 2.9 - 90 W, 12/24V DC
Aqua Jet WD 3.5 - 120 W, 12/24V DC
Aqua Jet WD 5.2 - 185 W, 12/24V DC (with built-in thermal protection)
Body  PA/PPA
Valves  Nitrile
Diaphragm  Santoprene



Technical Data

Part No. Description Capacity Pressure Cut Off Fuse Size Connection
10-24728-03 Aqua Jet WD 2.9 12V 11 l/min – 2.9 GPM 2.8 bar – 41 psi 10 A ⅜" BSP x ½" barb
10-24728-04 Aqua Jet WD 2.9 24V 11 l/min – 2.9 GPM 2.8 bar – 41 psi 5 A ⅜" BSP x ½" barb
10-13399-03 Aqua Jet WD 3.5 12V 13 l/min – 3.5 GPM 5 bar – 70 psi 15 A ⅜" BSP x ½" barb
10-13399-04 Aqua Jet WD 3.5 24V 13 l/min – 3.5 GPM 5 bar – 70 psi 8 A ⅜" BSP x ½" barb
10-13407-07 Aqua Jet WD 5.2 12V 20 l/min – 5.2 GPM 5 bar – 70 psi 20 A ⅜" BSP x ½" barb
10-13407-08 Aqua Jet WD 5.2 24V 20 l/min – 5.2 GPM 5 bar – 70 psi 10 A ⅜" BSP x ½" barb



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV
