Aqua Jet WD/Livewell 泵套件 5.2

Product Type(s) : Fishing Livewell Pumps
Description :

Aqua Jets Washdown/Livewell 泵套件可轻松为任何船只添加 Aqua Jet 冲洗泵和双端口曝气生活井泵。

WHERE TO BUY

FEATURES

Aqua Jet Wash Down/Livewell 泵套件可轻松为任何船只添加冲洗和生活井泵。

双端口曝气泵 500 GPH

  • 有限 3 年质保
  • 容量 500 GPH
  • 锥形入口直接连接海水龙头,上方出口通过 3⁄4" 排放口向生活水井提供提供连续水流。
  • 下出口通过 ½" 或 ¾" 口连接到冲洗泵。
  • 新型高压入口密封件可轻松应对由常用的高速抽取产生的更高压力。

Aqua Jet WD 5.2 泵

  • 有限 3 年质保
  • 最高 5 bar (73 psi) 压力
  • 超低音安静运行
  • 五腔结构
  • 平稳输送物料
  • 自吸
  • 集成压力开关在 喷嘴打开和关闭时 自动开启和关闭泵
  • 干式运行,无损坏
  • 低耗电量
  • 简单、低成本维护
  • PUMProtector 入口滤网和触发喷嘴作为标配提供
  • 快速断开接头
  • 1⁄2" 软管用软管接头。包括 BSP 和 NPT 接头
  • 使用寿命长

DIMENSIONS & SPECIFICATIONS

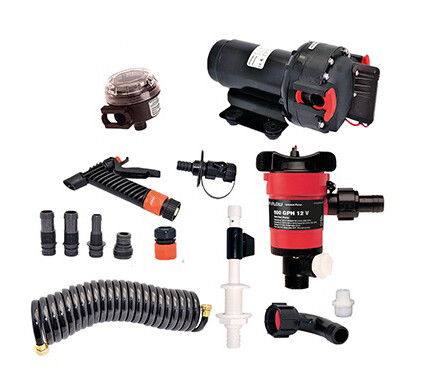

Aqua Jet Washdown/Livewell 泵套件包括以下内容:

  • Aqua Jet WD 5.2,5 bar (70 psi) 泵,½" NPT/ 软管 ¾",¾" GHT。
  • 500 GPH 双端口生活井泵,入口 ¾" NPTx1" 长,排放;Livewell ¾" 直型或 90° 软管,WD ½" FNPT、¾" MNPT 或 ¾" 软管
  • 带阀的舱壁接头,- 入口 ¾" 软管,出口 ¾" GHT
  • 7.5 米 (25') 盘绕冲洗软管 3⁄4" GHT
  • PUMProtector 入口滤网
  • 喷嘴
  • 曝气头,¾" 软管
  • 2 个带照明的面板开关

技术参数

零件号 零件号:美国 描述 处理能力 压力切断 保险丝规格 连接
32-64634 64634 Aqua Jet WD 5.2 500 GPH 12V Livewell
    Aqua Jet WD 5.2 12V 20 L/min – 5.2 GPM 5 bar – 70 psi 20 A ½" NPT/软管 ¾",¾" GHT
    双端口曝气泵 500 GPH 12V 32 L/min – 500 GPH ,   入口 ¾" NPTx1" 长,排放;Livewell ¾" 直型或 90° 软管,WD ½" FNPT、¾" MNPT 或 ¾" 软管



请参阅 Johnson Pump Marine 目录中的本产品:US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

VIDEOS

Aqua Jet Washdown Pump 概览

曝气泵概览

Aqua Jet Wash Down 特性

曝气泵特性

Aqua Jet 冲洗泵特性 Pauly

Aqua Jet 冲洗泵特性 Dave

泵套筒释放

Aqua Jet 冲洗泵特性
