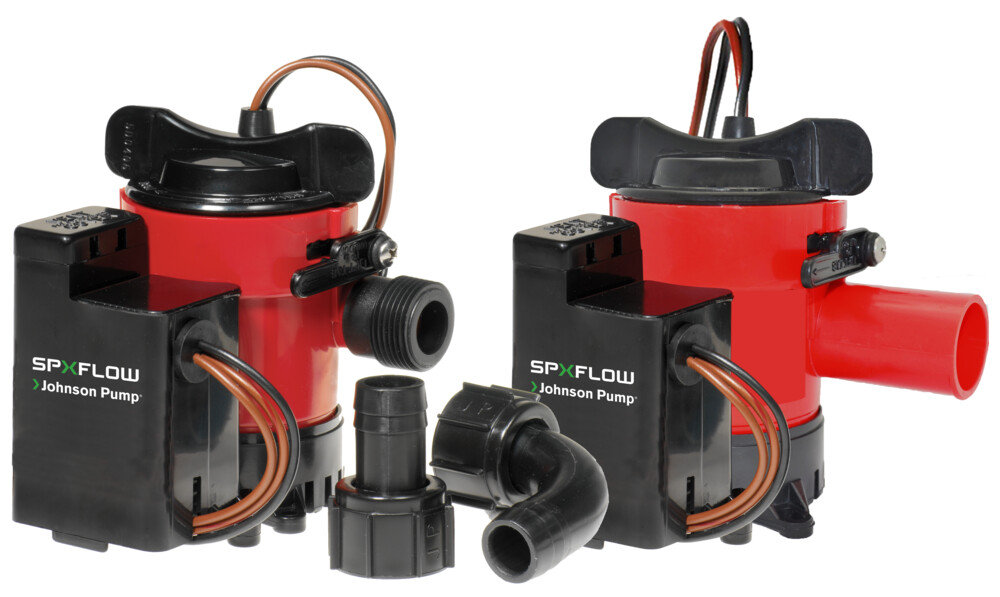

Cartridge Combo - Automatic Submersible Bilge Pump
Product Type(s) : Submersible Bilge Pumps
Description :
WHERE TO BUY
Johnson Pump Marine 集装式组合舱底泵是 JPM 成熟的集装式组合舱底泵，配有无堵塞电磁浮动开关，可实现自动运行。该开关对舱底的水位做出反应，自动激活和取消激活泵。
产品规格
材料规格
| 泵体： | 热塑 |
| 轴封： | 唇封 |
| 轴： | 不锈钢 (SS2343) |
技术参数
| 零件号 | 零件号：美国 | 描述 | 容量 3 ft (0.9 m) 压头 (13.6V/27.2V) | 容量直型 (13.6V/27.2V) | 电压 | 电流 | 保险丝规格 | 连接软管尺寸 | 电线规格 |
| 32-05503-00 | 05503-00 | 集装式组合 500 GPH 12V | 33 l/min - 525 GPH | 40 l/min - 630 GPH | 12 V | 2.5 A | 5 A | ¾" | 16 GA (1.3mm2) |
| 32-05703-00 | 05703-00 | 集装式组合 750 GPH 12V | 44 l/min - 700 GPH | 50 l/min - 800 GPH | 12 V | 3 A | 5 A | ¾" | |
| 32-05903-00 | 05903-00 | 集装式组合 1000 GPH 12V | 50 l/min - 800 GPH | 63 l/min - 1000 GPH | 12 V | 3.2 A | 5 A | ¾" | |
| 32-06203-00* | 06203-00* | 集装式组合 1250 GPH 12V | 60 l/min - 952 GPH | 73 l/min - 1150 GPH | 12 V | 3 A | 5 A | 1⅛" | |
| * 不包括 Dura-Port 连接 | |||||||||
