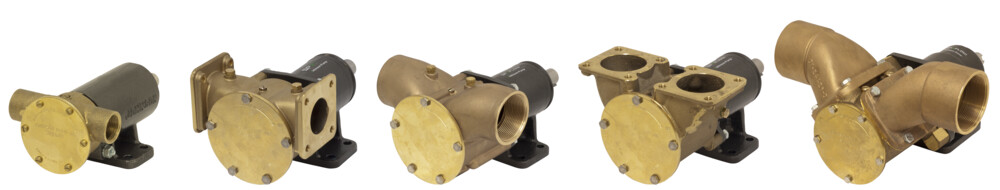

Extra Heavy Duty Impeller Pumps - FB-3000 series
Product Type(s) : Flexible Impeller Pumps - Multi-purpose
Description :
WHERE TO BUY
Whenever you need greater strength or service from a pump, use an extra heavy duty flexible impeller pump with separate bearing housing and mechanical seal for less wear and longer life. These pumps cover the entire range of marine applications and may be used as cooling water pumps, bilge pumps, deck wash pumps, emergency and fire fighting pumps, etc.
产品规格
Material Specifications
| Pump body | Bronze (Connection for vacuum switch) |
| Shaft | Stainless steel |
| Seal | Mechanical seal |
| Cam | Full or reduced |
| Pedestal | Cast iron with permanently lubricated double ball bearings |
Extra Heavy Duty FB-3000 Series
Technical Data
| Part No. | Description | Part No. USA | Description USA | Impeller | Connection | Length | Width | Height | Weight | Drive Shaft Ø |
| 10-24210-1 | F5B-3000 | 10-24210-5 | F5B-3007 | 09-1027B-1 09-1027B-9-00** |
¾" BSP/NPT | 195 mm – 7.68" |
106 mm – 4.17" |
88 mm – 3.46" |
2,9 kg – 6.5 lbs |
17 mm |
| 10-24209-1 | F7B-3000 | 10-24209-7 | F7B-3007 | 09-1028BT-1 09-1028B-9** |
1" BSP/NPT | 213 mm – 8.38" |
120 mm – 4.72" |
93 mm – 3.66" |
3,1 kg – 6.9 lbs |
17 mm |
| 10-13024-1 | F8B-3000 VF | 10-13024-1 | F8B-3000 VF | 09-819B-00 09-819B-9** |
Port Adaptor Kit | 255 mm – 10.04" |
152 mm – 5.98" |
154 mm – 6.06" |
7,6 kg – 16.5 lbs |
24 mm - 1" |
| 10-13026-1 | F9B-3000 | 10-13026-7 | F9B-3007 | 09-802B 09-814B*** |
2" BSP/NPT | 282 mm – 11.1" |
192 mm – 7.56" |
157 mm – 6.18" |
9,3 kg – 21 lbs |
24 mm - 1" |
| 10-13175-01 | F8B-3000 TSS | 10-13175-01 | F8B-3000 TSS | 09-819B-00 09-819B-9** |
Port Adaptor Kit | 255 mm – 10.04" |
198 mm – 7.79" |
151 mm – 5.94" |
7,6 kg – 16.5 lbs |
24 mm - 1" |
| 10-13225-01 | F9B-3000 VF | 10-13225-01 | F9B-3000 VF | 09-802B 09-814B*** |
Port Adaptor Kit | 282 mm – 11.1" |
152 mm – 5.98" |
175 mm – 6.89" |
9,3 kg – 21 lbs |
24 mm - 1" |
| 10-13177-01 | F9B-3000 TSS | 10-13177-01 | F9B-3000 TSS | 09-802B 09-814B*** |
Port Adaptor Kit | 282 mm – 11.1" |
200 mm – 7.87" |
151 mm – 5.94" |
9,3 kg – 21 lbs |
24 mm - 1" |
| **Pump with nitrile impeller available on request ***Pump with alternative impeller available on request |
||||||||||
Extra Heavy Duty, High Flow, Impeller Pumps - F95B-3000
Technical Data
| Part No. | Description | Part No. USA | Description USA | Impeller | Connection | Length | Width | Height | Weight | Drive Shaft Ø |
| 10-13121-01 | F95B-3000 | 10-13121-04 | F95B-3007 | 09-820B | 2½" BSP/NPT | 354 mm – 13.93" |
246/ 295 mm 9.68"/11.61" |
226/ 201 mm 8.89"/7.91" |
17,2 kg – 38 lbs |
24 mm - 1" |
See Flexible Impeller Multi-Purpose Pumps Accessories for Port Adapters and Vacuum Switch
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Bronze Impeller Pump Performance Tables
Note! Reduced cam - 30-40% lower capacity
Impeller of nitrile - adjust total head approx. 30% down
| F35B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | 2500 rpm | ||||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.06 | 5.2 | 1.4 | 0.09 | 6.8 | 1.8 | 0.13 | 11.2 | 3.0 | 0.16 | 14.0 | 3.7 | 0.18 | 16.0 | 4.2 | 0.18 | 20.5 | 5.4 |
| 0.6 | 60 | 20.1 | 0.09 | 4.6 | 1.2 | 0.09 | 6.2 | 1.6 | 0.13 | 10.6 | 2.8 | 0.16 | 13.7 | 3.6 | 0.18 | 15.8 | 4.1 | 0.18 | 19.6 | 5.2 |
| 1.0 | 100 | 33.5 | 0.09 | 4.0 | 1.1 | 0.09 | 5.6 | 1.5 | 0.18 | 9.2 | 2.4 | 0.18 | 11.8 | 3.1 | 0.18 | 13.6 | 3.6 | 0.18 | 17.0 | 4.5 |
| F4B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | 2500 rpm | ||||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.06 | 12.0 | 3.2 | 0.09 | 15.0 | 4.0 | 0.13 | 23.0 | 6.0 | 0.17 | 27.0 | 7.1 | 0.18 | 30.5 | 8.1 | 0.18 | 34.5 | 9.1 |
| 0.6 | 60 | 20.1 | 0.09 | 11.0 | 2.9 | 0.09 | 14.0 | 3.7 | 0.13 | 21.0 | 5.4 | 0.17 | 25.0 | 6.6 | 0.18 | 28.0 | 7.4 | 0.18 | 33.0 | 8.7 |
| 1.0 | 100 | 33.5 | 0.09 | 9.0 | 2.4 | 0.09 | 11.0 | 2.9 | 0.18 | 18.0 | 4.8 | 0.18 | 22.0 | 5.8 | 0.18 | 25.0 | 6.6 | 0.18 | 29.5 | 7.8 |
| 1.5 | 150 | 50.3 | 0.09 | 4.5 | 1.2 | 0.09 | 7.0 | 1.8 | 0.18 | 13.5 | 3.6 | 0.18 | 17.0 | 4.5 | 0.18 | 20.0 | 5.3 | 0.2 | 25.0 | 6.6 |
| F5B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM |
| 0.3 | 30 | 10.1 | 0.13 | 16.0 | 4.2 | 0.18 | 21.0 | 5.5 | 0.37 | 33.0 | 8.7 | 0.37 | 41.0 | 10.8 | 0.37 | 46.0 | 12.2 |
| 0.6 | 60 | 20.1 | 0.13 | 15.0 | 4.0 | 0.18 | 20.0 | 5.3 | 0.37 | 32.0 | 8.5 | 0.37 | 39.5 | 10.4 | 0.37 | 45.0 | 11.9 |
| 1.0 | 100 | 33.5 | 0.13 | 14.0 | 3.7 | 0.18 | 19.0 | 5.0 | 0.37 | 30.0 | 7.9 | 0.37 | 37.0 | 9.8 | 0.37 | 42.0 | 11.1 |
| 1.5 | 150 | 50.3 | 0.13 | 13.0 | 3.4 | 0.18 | 17.0 | 4.5 | 0.37 | 27.0 | 7.1 | 0.37 | 33.5 | 8.9 | 0.37 | 38.0 | 10.0 |
| 2.0 | 200 | 67.1 | - | - | - | - | - | - | 0.37 | 22.0 | 5.8 | 0.37 | 28.5 | 7.5 | 0.37 | 33.0 | 8.07 |
| F7B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM |
| 0.3 | 30 | 10.1 | 0.37 | 36.0 | 9.5 | 0.37 | 46.0 | 12.2 | 0.75 | 74.0 | 19.6 | 0.75 | 98.0 | 25.9 | 0.75 | 107.0 | 28.3 |
| 0.6 | 60 | 20.1 | 0.37 | 34.0 | 9.0 | 0.37 | 44.0 | 11.6 | 0.75 | 72.0 | 19.0 | 0.75 | 96.0 | 25.4 | 0.75 | 104.0 | 27.5 |
| 1.0 | 100 | 33.5 | 0.37 | 29.0 | 7.7 | 0.37 | 40.0 | 10.6 | 0.75 | 67.0 | 17.7 | 0.75 | 87.0 | 23.0 | 0.75 | 98.0 | 25.9 |
| 1.8 | 180 | 60.4 | 0.37 | 21.0 | 5.5 | 0.37 | 30.0 | 7.9 | 0.75 | 57.0 | 15.1 | 0.75 | 73.0 | 19.3 | 0.75 | 84.0 | 22.2 |
| 2.5 | 250 | 83.8 | - | - | - | - | - | - | 0.75 | 37.0 | 9.8 | 1.1 | 52.0 | 13.7 | 1.1 | 63.0 | 16.6 |
| F8B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.37 | 87.0 | 23.0 | 0.75 | 114.0 | 30.1 | 1.1 | 188.0 | 50.0 | 1.5 | 241.0 | 63.7 | 1.5 | 279.0 | 73.7 |
| 0.6 | 60 | 20.1 | 0.37 | 80.0 | 21.1 | 0.75 | 107.0 | 28.3 | 1.1 | 180.0 | 47.6 | 1.5 | 233.0 | 61.6 | 1.5 | 270.0 | 71.3 |
| 1.0 | 100 | 33.5 | 0.37 | 73.0 | 19.3 | 0.75 | 101.0 | 26.7 | 1.1 | 177.0 | 46.8 | 1.5 | 228.0 | 60.2 | 1.5 | 264.0 | 69.7 |
| 1.8 | 180 | 60.4 | - | - | - | 1.1 | 70.0 | 18.5 | 1.1 | 148.0 | 39.1 | 2.2 | 203.0 | 53.6 | 2.2 | 242.0 | 63.4 |
| 2.5 | 250 | 83.8 | - | - | - | - | - | - | 1.1 | 108.0 | 28.5 | 2.2 | 166.0 | 43.9 | 2.2 | 208.0 | 55.0 |
| F9B-5000 | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.75 | 129.0 | 34.1 | 0.75 | 170.0 | 44.9 | 1.5 | 268.0 | 70.8 | 1.5 | 331.0 | 87.5 | 2.2 | 388.8 | 102.7 |
| 0.6 | 60 | 20.1 | 0.75 | 124.0 | 32.8 | 0.75 | 161.0 | 42.5 | 1.5 | 260.0 | 68.9 | 2.2 | 323.0 | 85.3 | 2.2 | 383.1 | 101.2 |
| 1.0 | 100 | 33.5 | 0.75 | 118.8 | 31.4 | 1.1 | 156.0 | 41.2 | 1.5 | 255.6 | 67.5 | 2.2 | 315.2 | 83.3 | 3.0 | 379.2 | 100.2 |
| 1.8 | 180 | 60.4 | 1.1 | 105.0 | 27.7 | 1.1 | 140.0 | 37.0 | 1.5 | 235.0 | 62.1 | 2.2 | 286.1 | 75.6 | 3.0 | 351.3 | 92.8 |
| 2.5 | 250 | 83.8 | 1.1 | 83.7 | 22.1 | 1.5 | 102.0 | 26.9 | 2.2 | 208.0 | 55.2 | 3.0 | 266.0 | 70.3 | 3.0 | 304.1 | 80.3 |
| F9B-5600 | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.75 | 129.0 | 34.1 | 1.1 | 170.0 | 44.9 | 1.5 | 270.0 | 71.3 | 1.5 | 331.0 | 87.5 | 2.2 | 376.0 | 99.3 |
| 0.6 | 60 | 20.1 | 0.75 | 126.0 | 32.8 | 1.1 | 165.0 | 43.6 | 1.5 | 266.0 | 70.3 | 2.2 | 323.0 | 85.3 | 2.2 | 368.0 | 97.2 |
| 1.0 | 100 | 33.5 | 0.75 | 123.0 | 32.5 | 1.1 | 161.1 | 42.6 | 2.2 | 260.0 | 68.7 | 2.2 | 314.0 | 83.3 | 3.0 | 361.0 | 95.4 |
| 1.8 | 180 | 60.4 | 0.75 | 110.0 | 29.1 | 1.5 | 153.0 | 40.4 | 2.2 | 242.0 | 63.9 | 2.2 | 291.0 | 76.9 | 3.0 | 340.0 | 89.8 |
| 2.5 | 250 | 83.8 | 1.1 | 90.0 | 23.8 | 1.5 | 130.0 | 34.3 | 2.2 | 218.0 | 57.6 | 3.0 | 269.0 | 71.1 | 3.0 | 312.0 | 82.4 |
| 3.0 | 300 | 100.6 | 1.5 | 61.0 | 16.1 | 2.2 | 102.0 | 26.9 | 3.0 | 190.0 | 50.2 | 3.0 | 242.0 | 63.9 | 3.5 | 284.0 | 75.0 |
| 3.5 | 350 | 117.4 | - | - | - | - | - | - | 3.0 | 160.0 | 42.3 | 3.5 | 205.0 | 54.2 | 3.5 | 235.0 | 62.1 |
| F95B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2500 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.5 | 50 | 16.8 | 0.75 | 182.6 | 48.2 | 1.1 | 236.5 | 62.5 | 1.5 | 384.2 | 101.5 | 2.2 | 483.6 | 127.8 | 4.0 | 626.7 | 165.5 |
| 1.0 | 100 | 33.5 | 1.1 | 172.7 | 45.6 | 1.1 | 231.3 | 61.1 | 1.5 | 372.0 | 98.3 | 3.0 | 472.9 | 124.9 | 5.5 | 617.9 | 163.2 |
| 1.5 | 150 | 50.3 | 1.1 | 160.1 | 42.3 | 1.5 | 214.5 | 56.7 | 2.2 | 350.4 | 92.6 | 3.0 | 444.1 | 117.3 | 5.5 | 583.8 | 154.2 |
| 2.0 | 200 | 67.1 | 1.1 | 132.3 | 35.0 | 1.5 | 181.0 | 47.8 | 3.0 | 315.4 | 83.3 | 3.5 | 406.2 | 107.3 | 5.5 | 553.1 | 146.1 |
| 2.5 | 250 | 83.8 | 1.5 | 79.5 | 21.0 | 2.2 | 137.8 | 36.4 | 3.0 | 267.6 | 70.7 | 4.0 | 361.3 | 95.5 | 7.5 | 506.4 | 133.8 |
