Flexible Impeller Pumps - AC

Excellent self-priming capacity	A dry pump has a suction lift up to 5 meters within a few seconds
Pulsation free and reversible flow	The FIP-pump gives a uniform flow without pulsation
Compact design	The FIP has minimal outer dimensions compared to its capacity, which simplifies space and installation requirements
Easy maintenance and quick to clean	Unique 3-piece design reduces maintenance and cleaning time to a minimum

FIP Stainless Steel

The FIP Stainless Steel line allows for a wide range of pump capacities for both hygenic and non-hygenic applications.

Suitable for discharge of septic tank. Motor sold separately.*

Part No.	Description	Body	Connection	Impeller	Shaft	Shaft seal	Shaft end
To be Configured	FIP40SI- BSP02M01F90	Stainless steel	BSP	Neoprene	Double flat	Mechanical	Flange

* Motors for the FIP pumps are available as 4-, 6- or 8-pole with speeds between 700-1450 rpm.

FIP Bronze

Bronze pump for liquids such as saltwater, mineral oils, slurries, additives or abrasive products.

Suitable for wash down, bilge, water circulation, etc. Motor sold separately.*

Part No.	Description	Body	Connection	Impeller	Shaft	Shaft seal	Shaft end
To be Configured	FIP25B- BSP00M01F80	Bronze	BSP	Neoprene	Double flat	Mechanical	Flange

Suitable for wash down, bilge, water circulation, firefighting reserve, etc. Motor sold separately.*

Part No.	Description	Body	Connection	Impeller	Shaft	Shaft seal	Shaft end
To be Configured	FIP40B- BSP00M01F90	Bronze	BSP	Neoprene	Double flat	Mechanical	Flange

* Motors for the FIP pumps are available as 4-, 6- or 8-pole with speeds between 700-1450 rpm.

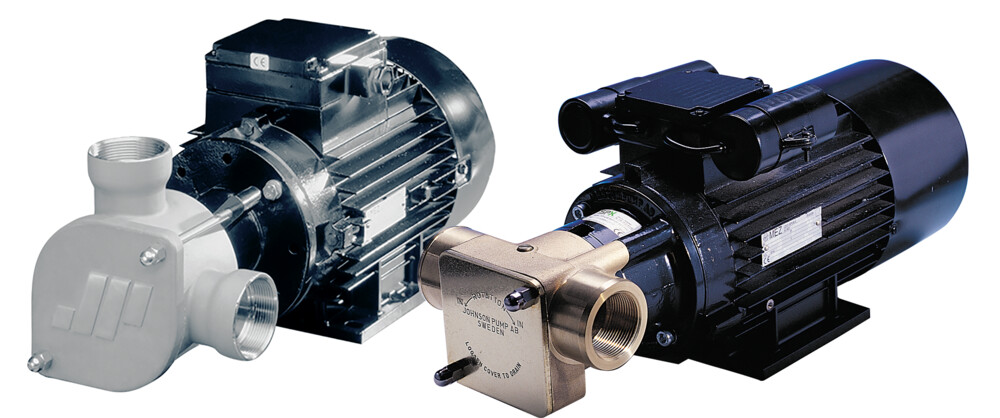

Stainless Steel and Bronze models

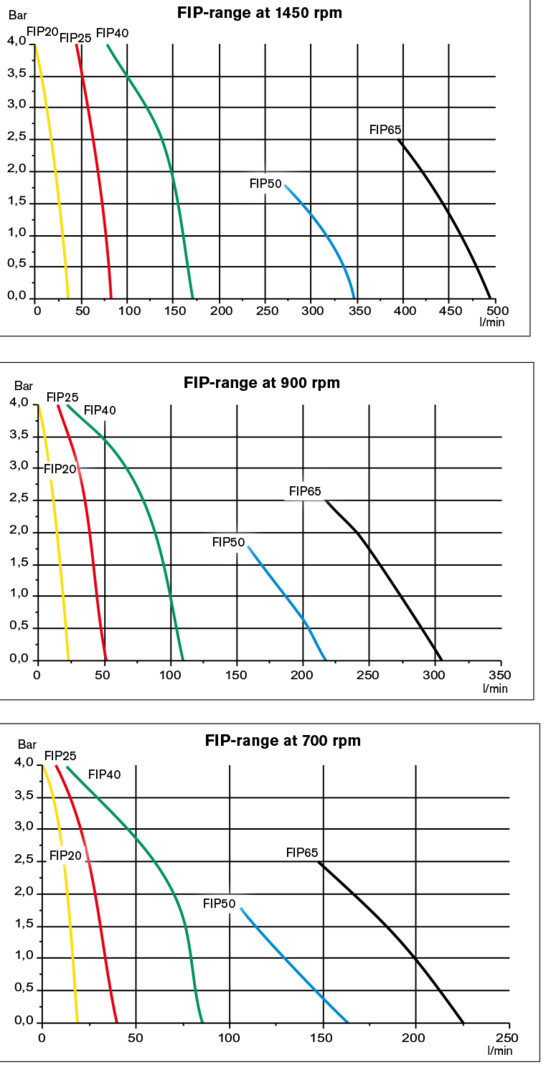

The capacities range from 20 l/min to 490 l/min
The pumps are characterized by their ease of service and maintenance
For 3-phase power source we offer the FIP20, FIP25, FIP40, FIP50 and the FIP65. Additionally, the FIP20, FIP25 and the FIP40 are available for single-phase power

See this product in the Johnson Pump Marine Catalog: GB ‖ DE ‖ FI ‖ SV

FEATURES
