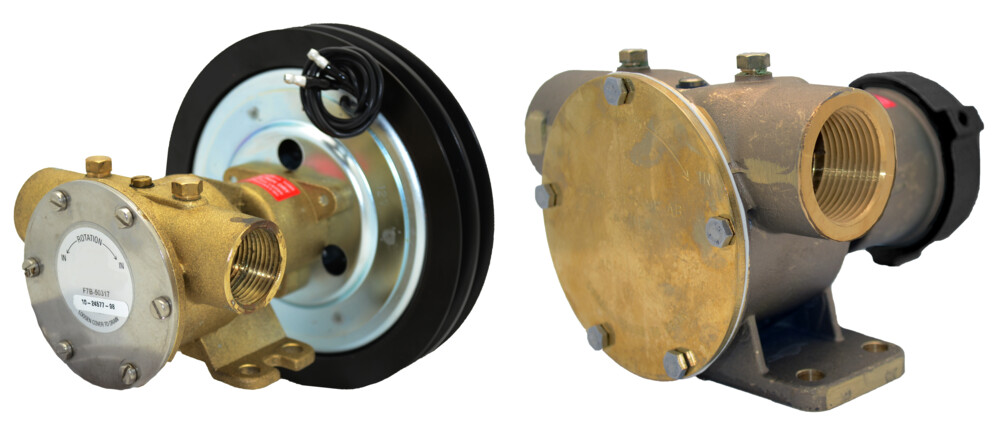

Heavy Duty Electro-Magnetic Clutch Pumps - FB-5001

Product Type(s) : Flexible Impeller Pumps - Multi-purpose
Description :

With an Electro-Magnetic Clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.

WHERE TO BUY

FEATURES

  • Limited 3 Year Warranty
  • FxB-5xxx = Flexible Impeller Pump, Bronze body, 5 = Pedestal mounted with double ball bearings and mechanical seal, magnetic clutch operated
  • TSS - The Space Saver - horizontal flanges in a space saving design
  • VF - Vertical Flanges
  • Automatically controlled pumps are available in sizes from 1" to 2½" (20 L/min to 625 L/min), with clutches in 12 or 24 volts.
  • Wear parts are easily replaceable and service kits are available for all standard models.
  • Vacuum Switch as extra accessory
  • Note! Clutch to be ordered separately
Theory of Operation

Flexible Impellers - Operating Principle


  • A vacuum is created as the flexible impeller vanes straighten upon leaving the cam, drawing liquid into the pump.
  • The rotating impeller carries liquid from the inlet to the outlet port. As a consequence of their design, flexible impeller pumps can pass fairly large solids.
  • When the flexible impeller vanes regain contact with the cam, they bend and the liquid is discharged from the pump in a uniform flow. Liquids can be pumped in the opposite direction by reversing the rotation of the pump.

DIMENSIONS & SPECIFICATIONS

Material Specifications

Pump body  Bronze (Connection for vacuum switch)
Shaft  Stainless steel
The shaft is mounted with permanently lubricated double ball bearings
Seal  Mechanical seal
Cam  Full or reduced
Clutch Electro-Magnetic 12/24V DC
Pulley 2xA or 1xB-groove
Pulley Diameter 178 mm / 7"



Heavy Duty Electro-Magnetic Clutch Pumps FB-5000
Technical Data

Part No. Description Part No. USA Description USA Impeller Connection Length Width Height Weight
10-24577-99 F7B-5001 10-24577-98 F7B-50017 09-1028B 1” BSP/NPT 156 mm – .14" 120 mm – 4.72" 93 mm – 3.66" 5.8 kg –12.7 lbs
10-13022-99 F8B-5001* 10-13022-98 F8B-50017* 09-819B-00 1½” BSP/NPT 225 mm – 8.85" 160 mm – 6.29" 124 mm – 4.88" 9.9 kg –22 lbs
    10-13022-95 F8B-50017 09-819B-00 1¼" NPT 225 mm – 8.85" 160 mm – 6.29"" 124 mm – 4.88" 9.9 kg –22 lbs
    10-13022-96 F8B-50017* 09-819B-00 1½" NPT 225 mm – 8.85" 160 mm – 6.29" 124 mm – 4.88" 9.9 kg –22 lbs
* Same thread on -96 and -98. Footprint for -96 US version.



Clutch to be ordered separately! See Flexible Impeller Multi-Purpose Pumps Accessories



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

OPTIONS & PERFORMANCE

Bronze Impeller Pump Performance Tables

Note! Reduced cam - 30-40% lower capacity

Impeller of nitrile - adjust total head approx. 30% down

F35B 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm 2500 rpm
Bar kPa ft kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM
0.3 30 10.1 0.06 5.2 1.4 0.09 6.8 1.8 0.13 11.2 3.0 0.16 14.0 3.7 0.18 16.0 4.2 0.18 20.5 5.4
0.6 60 20.1 0.09 4.6 1.2 0.09 6.2 1.6 0.13 10.6 2.8 0.16 13.7 3.6 0.18 15.8 4.1 0.18 19.6 5.2
1.0 100 33.5 0.09 4.0 1.1 0.09 5.6 1.5 0.18 9.2 2.4 0.18 11.8 3.1 0.18 13.6 3.6 0.18 17.0 4.5



F4B 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm 2500 rpm
Bar kPa ft kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM
0.3 30 10.1 0.06 12.0 3.2 0.09 15.0 4.0 0.13 23.0 6.0 0.17 27.0 7.1 0.18 30.5 8.1 0.18 34.5 9.1
0.6 60 20.1 0.09 11.0 2.9 0.09 14.0 3.7 0.13 21.0 5.4 0.17 25.0 6.6 0.18 28.0 7.4 0.18 33.0 8.7
1.0 100 33.5 0.09 9.0 2.4 0.09 11.0 2.9 0.18 18.0 4.8 0.18 22.0 5.8 0.18 25.0 6.6 0.18 29.5 7.8
1.5 150 50.3 0.09 4.5 1.2 0.09 7.0 1.8 0.18 13.5 3.6 0.18 17.0 4.5 0.18 20.0 5.3 0.2 25.0 6.6



F5B 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm
Bar kPa ft kW l/min GPM kW l/min GPM kW l/min GPM kW l/min GPM kW l/min GPM
0.3 30 10.1 0.13 16.0 4.2 0.18 21.0 5.5 0.37 33.0 8.7 0.37 41.0 10.8 0.37 46.0 12.2
0.6 60 20.1 0.13 15.0 4.0 0.18 20.0 5.3 0.37 32.0 8.5 0.37 39.5 10.4 0.37 45.0 11.9
1.0 100 33.5 0.13 14.0 3.7 0.18 19.0 5.0 0.37 30.0 7.9 0.37 37.0 9.8 0.37 42.0 11.1
1.5 150 50.3 0.13 13.0 3.4 0.18 17.0 4.5 0.37 27.0 7.1 0.37 33.5 8.9 0.37 38.0 10.0
2.0 200 67.1 - - - - - - 0.37 22.0 5.8 0.37 28.5 7.5 0.37 33.0 8.07



F7B 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm
Bar kPa ft kW l/min GPM kW l/min GPM kW l/min GPM kW l/min GPM kW l/min GPM
0.3 30 10.1 0.37 36.0 9.5 0.37 46.0 12.2 0.75 74.0 19.6 0.75 98.0 25.9 0.75 107.0 28.3
0.6 60 20.1 0.37 34.0 9.0 0.37 44.0 11.6 0.75 72.0 19.0 0.75 96.0 25.4 0.75 104.0 27.5
1.0 100 33.5 0.37 29.0 7.7 0.37 40.0 10.6 0.75 67.0 17.7 0.75 87.0 23.0 0.75 98.0 25.9
1.8 180 60.4 0.37 21.0 5.5 0.37 30.0 7.9 0.75 57.0 15.1 0.75 73.0 19.3 0.75 84.0 22.2
2.5 250 83.8 - - - - - - 0.75 37.0 9.8 1.1 52.0 13.7 1.1 63.0 16.6



F8B 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm
Bar kPa ft kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM
0.3 30 10.1 0.37 87.0 23.0 0.75 114.0 30.1 1.1 188.0 50.0 1.5 241.0 63.7 1.5 279.0 73.7
0.6 60 20.1 0.37 80.0 21.1 0.75 107.0 28.3 1.1 180.0 47.6 1.5 233.0 61.6 1.5 270.0 71.3
1.0 100 33.5 0.37 73.0 19.3 0.75 101.0 26.7 1.1 177.0 46.8 1.5 228.0 60.2 1.5 264.0 69.7
1.8 180 60.4 - - - 1.1 70.0 18.5 1.1 148.0 39.1 2.2 203.0 53.6 2.2 242.0 63.4
2.5 250 83.8 - - - - - - 1.1 108.0 28.5 2.2 166.0 43.9 2.2 208.0 55.0



F9B-5000 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm
Bar kPa ft kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM
0.3 30 10.1 0.75 129.0 34.1 0.75 170.0 44.9 1.5 268.0 70.8 1.5 331.0 87.5 2.2 388.8 102.7
0.6 60 20.1 0.75 124.0 32.8 0.75 161.0 42.5 1.5 260.0 68.9 2.2 323.0 85.3 2.2 383.1 101.2
1.0 100 33.5 0.75 118.8 31.4 1.1 156.0 41.2 1.5 255.6 67.5 2.2 315.2 83.3 3.0 379.2 100.2
1.8 180 60.4 1.1 105.0 27.7 1.1 140.0 37.0 1.5 235.0 62.1 2.2 286.1 75.6 3.0 351.3 92.8
2.5 250 83.8 1.1 83.7 22.1 1.5 102.0 26.9 2.2 208.0 55.2 3.0 266.0 70.3 3.0 304.1 80.3



F9B-5600 700 rpm 900 rpm 1400 rpm 1750 rpm 2000 rpm
Bar kPa ft kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM
0.3 30 10.1 0.75 129.0 34.1 1.1 170.0 44.9 1.5 270.0 71.3 1.5 331.0 87.5 2.2 376.0 99.3
0.6 60 20.1 0.75 126.0 32.8 1.1 165.0 43.6 1.5 266.0 70.3 2.2 323.0 85.3 2.2 368.0 97.2
1.0 100 33.5 0.75 123.0 32.5 1.1 161.1 42.6 2.2 260.0 68.7 2.2 314.0 83.3 3.0 361.0 95.4
1.8 180 60.4 0.75 110.0 29.1 1.5 153.0 40.4 2.2 242.0 63.9 2.2 291.0 76.9 3.0 340.0 89.8
2.5 250 83.8 1.1 90.0 23.8 1.5 130.0 34.3 2.2 218.0 57.6 3.0 269.0 71.1 3.0 312.0 82.4
3.0 300 100.6 1.5 61.0 16.1 2.2 102.0 26.9 3.0 190.0 50.2 3.0 242.0 63.9 3.5 284.0 75.0
3.5 350 117.4 - - - - - - 3.0 160.0 42.3 3.5 205.0 54.2 3.5 235.0 62.1



F95B 700 rpm 900 rpm 1400 rpm 1750 rpm 2500 rpm
Bar kPa ft kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM kW L/min GPM
0.5 50 16.8 0.75 182.6 48.2 1.1 236.5 62.5 1.5 384.2 101.5 2.2 483.6 127.8 4.0 626.7 165.5
1.0 100 33.5 1.1 172.7 45.6 1.1 231.3 61.1 1.5 372.0 98.3 3.0 472.9 124.9 5.5 617.9 163.2
1.5 150 50.3 1.1 160.1 42.3 1.5 214.5 56.7 2.2 350.4 92.6 3.0 444.1 117.3 5.5 583.8 154.2
2.0 200 67.1 1.1 132.3 35.0 1.5 181.0 47.8 3.0 315.4 83.3 3.5 406.2 107.3 5.5 553.1 146.1
2.5 250 83.8 1.5 79.5 21.0 2.2 137.8 36.4 3.0 267.6 70.7 4.0 361.3 95.5 7.5 506.4 133.8
