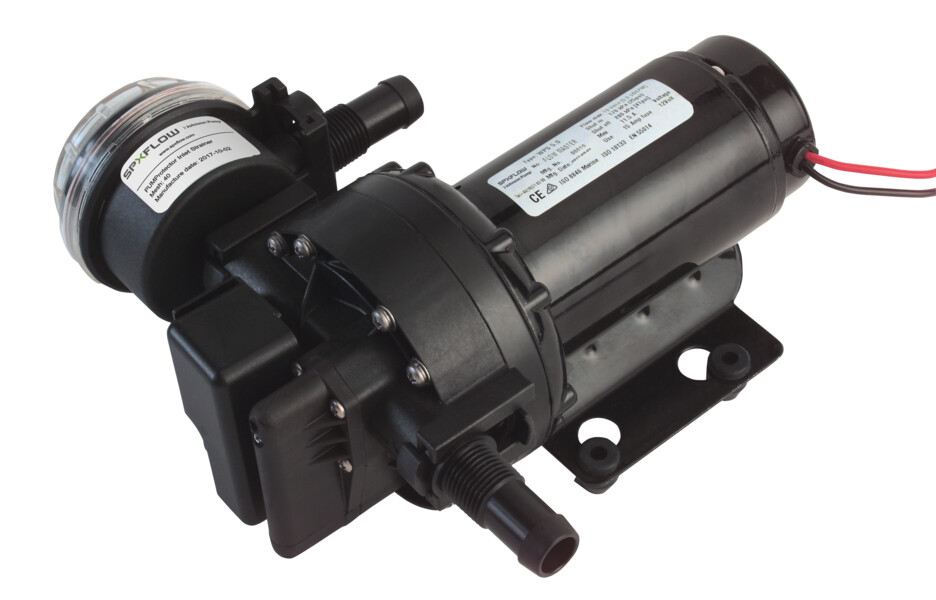

Aqua Jet フローマスター WPS 5.0 - 可変流量

Product Type(s) : Water Pressure Systems
Description :

静音の自吸式 Aqua Jet フローマスター WPS 5.0 ポンプには、ポンプ速度を自動的に制御する最先端の電子機器が組み込まれています。デジタルコントローラーは、非常にスムーズな流れを維持しながら、需要の増減に応じて水流を調整します。Aqua Jet Flow Master WPS 5.0 ポンプのユニークな可変流量機能は、より良いフロー、軽減されたノイズ、アンプドローの少なさの点からスマートな選択肢となります。

WHERE TO BUY

FEATURES

  • 3年間の限定保証付き
  • 水需要の増減に応じて、非常にスムーズな流れを維持
  • 5 チャンバー構造
  • 自吸式
  • 低コストの簡単メンテナンス
  • クイック接続ホースまたはねじ山付きコネクタが利用可能
  • 圧力スイッチ(標準)
  • 長寿命
  • 自吸式
  • 淡水または海水での使用
  • PUMProtector インレットストレーナを含む
  • アキュムレータータンクと取り付けることを推奨
AQUA JET フローマスター WPS 5.0

技術データ

部品番号 説明 性能 圧力カットオフ * 電圧 ヒューズのサイズ 接続部
10-13329-03 Aqua Jet フローマスター WPS 5.0 12V 19 L/分 - 5 GPM 3.5 bar, 50 psi 12 V 15 A ⅜" BSP / ホース ½"、½" BSP / hose ¾"
10-13329-103 Aqua Jet フローマスター WPS 5.0 12V ⅜" NPT/ホース ½"、½"NPT/ホース ¾"、½" NPT ¾" ホース ½ CTS
10-13329-04 Aqua Jet フローマスター WPS 5.0 24V 12 V 8 A ⅜" BSP / ホース ½"、½" BSP / hose ¾"
10-13329-104 Aqua Jet フローマスター WPS 5.0 24V ⅜" NPT/ホース ½"、½"NPT/ホース ¾"、½" NPT ¾" ホース ½ CTS
* ご要望に応じて、カットオフ圧力 2.1 bar/30 psi および 1.4 bar/20 psi をご用意しています。



寸法

部品番号 長さ 幅 高さ 重量
10-13329-03
10-13329-103
10-13329-04
10-13329-104
239 mm/9.4" 209 mm/8.22" 113 mm/4.49" 2 kg/4.5 lbs



Johnson Pump 海洋向けカタログで本製品を参照してください。US, EN, DE, ES, FI, SV

主な用途

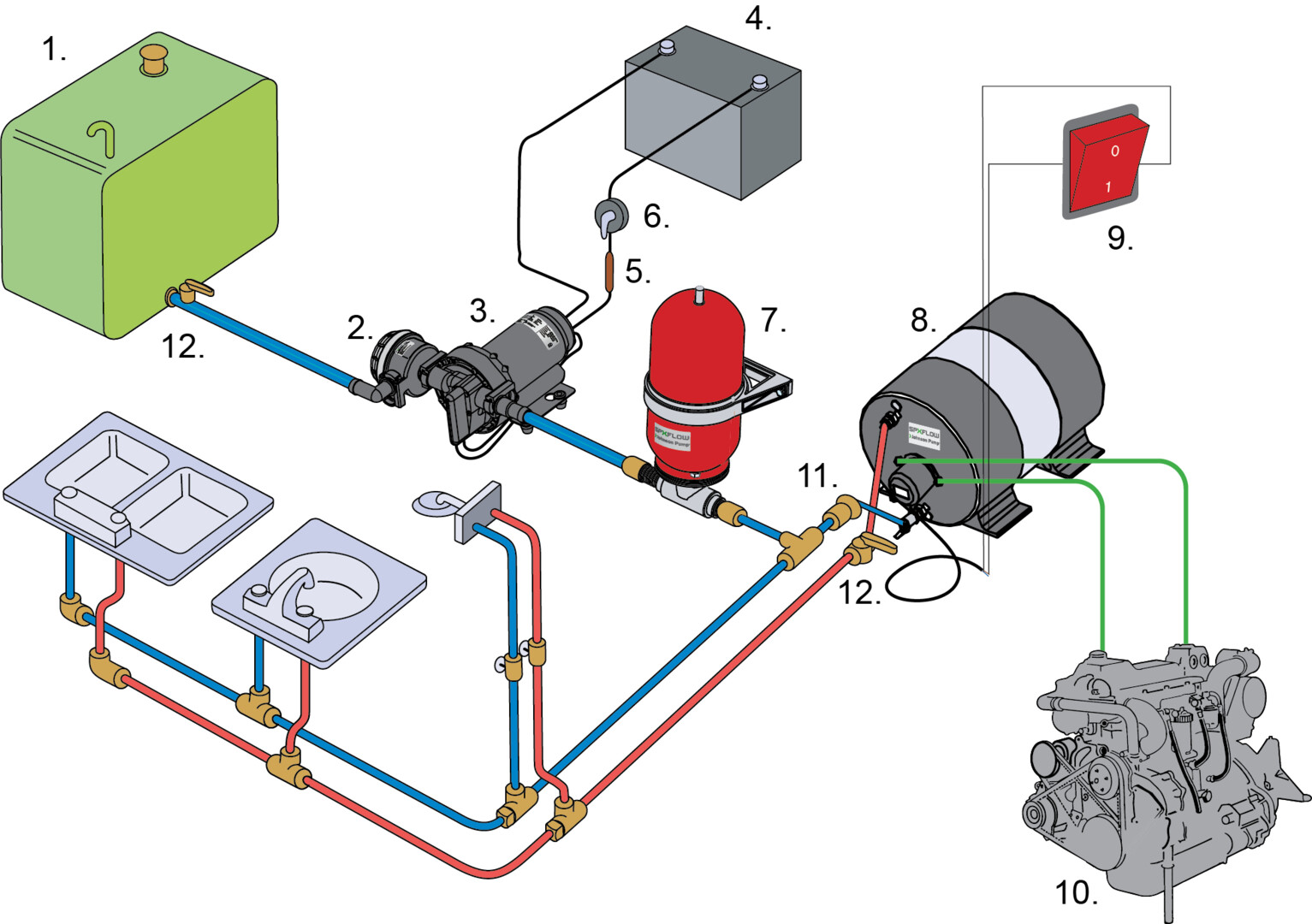

標準的な水圧システム

1. 水タンク   7. アキュムレータータンク
2. Pumprotector インレットストレーナ   8. 水ヒーターユニット
3. Aqua Jet 水圧ポンプ   9. オン/オフ バイポーラスイッチ
4. バッテリー   10. モーター
5. ヒューズ   11. チェックバルブ
6. オン/オフ スイッチ   12. シャットオフバルブ



始動と停止の回数を最小限に抑え、少量の水しか排出されないときにポンプの摩耗と損耗を低減できます。WPS ポンプをとアキュムレータタンクとともに設置することをお勧めします。

ポンプの吸気前には、必ず PUMProtector インレットストレーナを使用してください。



DIMENSIONS & SPECIFICATIONS

材料仕様

モーター WPS 5.0 - 150 W、12/24 V DC(加熱保護装置内蔵)
本体 ナイロン / ポリプロピレン
バルブ サントプレーン/EPDM
ダイアフラム サントプレーン



Johnson Pump 海洋向けカタログで本製品を参照してください。US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
