Aqua Jet - WD Pump Kits
Discover the different wash down kits from SPX FLOW Johnson Pump. Always includes a high capacity Aqua Jet Wash Down Pump 3.5 or 5.2, hose strainer or PUMProtector inlet strainer, spray nozzle and the relevant connections – all in one package.

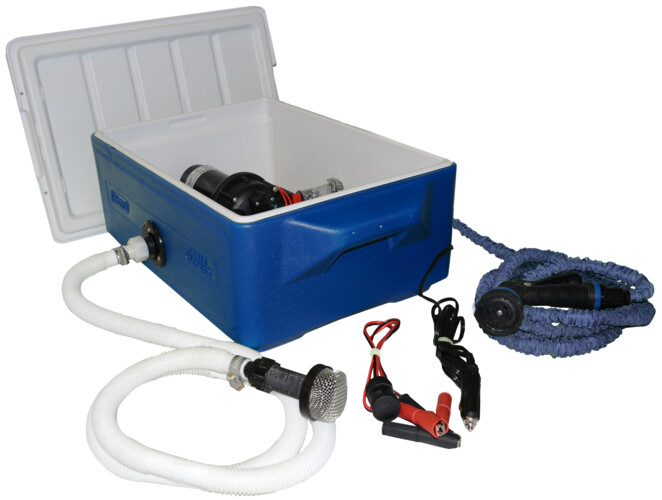

Kit includes everything you need to wash down your boat, RV, water craft and more.
- Use any water available, fresh or salt water
- Complete with collapsing hose, spray pistol, input hose with filter, 3.5 wash down pump, dual power option12V cigarette lighter power cord, and battery clips to power from battery terminals
- 70 psi pressue
- Fully ingition protected and CE approved wash down pump
Part Numbers
| Part No. | Description |
| 64736-00 | Aqua Jet WD 3.5 GPM 12V Portable Kit |
| 09-60616 | Portable WD flexible hose |
| Available in USA only | |
See this product in the Johnson Pump Marine Catalog: US
13 L/min (3.5 GPM) wash down kit conveniently includes a high capacity Aqua Jet WD 3.5, 5 bar (70 psi), PUMProtector inlet strainer, spray nozzle, 7.5 meters (25’) of coiled wash down hose, 2-way panel switch – all in one package.
- Whisper quiet operation
- Five-chamber construction
- Smooth flowing
- Self-priming
- Easy, low cost maintenance
- Quick-connect hose
- Integrated pressure switch
- Long service life
Technical Data

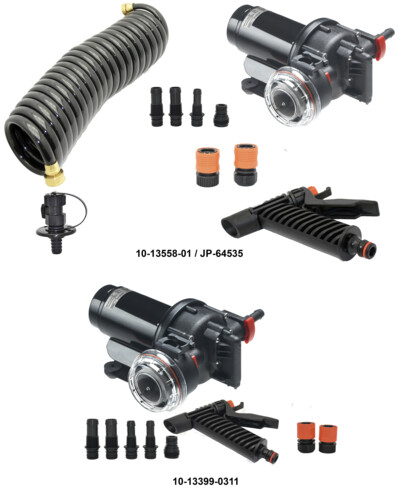

| Part No. | Part No. USA | Description | Connections | Kit Includes |
| 10-13558-01 | JP-64535 | Aqua Jet 3.5 Wash Down Pump Kit 12V | ⅜" BSP x ½" barb | Aqua Jet WD 3.5, inlet strainer, spray pistol, hose and connectors, barb port fittings, panel switch |
| 10-13558-02 | - | Aqua Jet 3.5 Wash Down Pump Kit 24V | ||
| * | 10-13399-0311 | Aqua Jet 3.5 Wash Down Pump Kit 12V Clamshell | ½" NPT / hose ¾". ¾" GHT, Hose ¾" GHT | Aqua Jet WD 3.5, inlet strainer, spray pistol, connectors, barb port fittings |
| * | 10-13399-0411 | Aqua Jet 3.5 Wash Down Pump Kit 24V Clamshell | ||
| * Not available outside of the USA | ||||
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

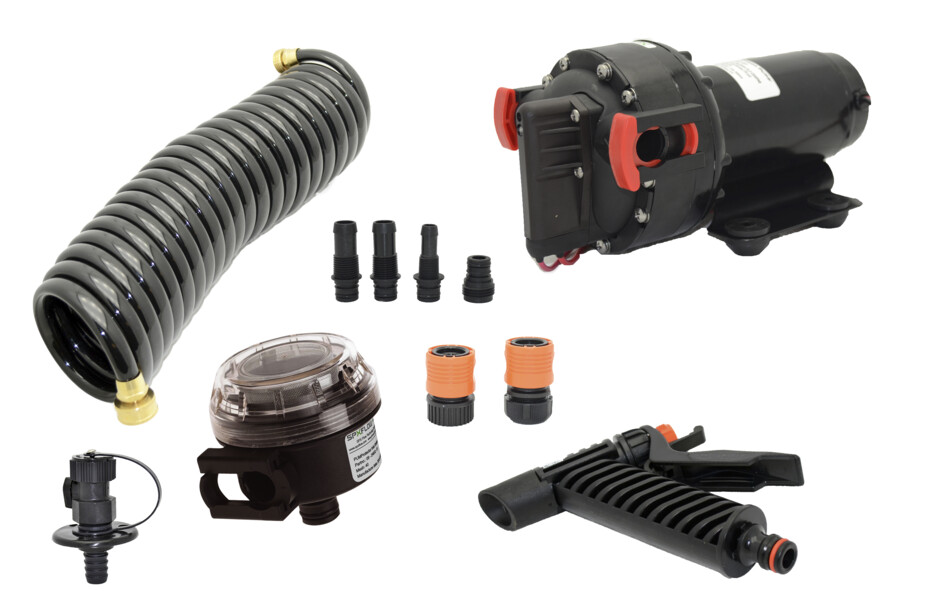

20 L/min (5.2 GPM) wash down kit conveniently includes a high capacity Aqua Jet WD 5.2, 5 bar (70 psi), PUMProtector inlet strainer, spray nozzle, bulk head fitting with valve, 7.5 meters (25’) of coiled wash down hose and a 2-way panel switch – all in one package.
- Whisper quiet operation
- Five-chamber construction
- Smooth flowing
- Self-priming
- Easy, low cost maintenance
- Quick-connect hose
- Integrated pressure switch
- Long service life
Technical Data

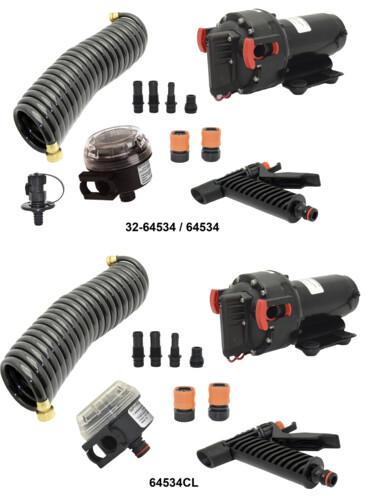

| Part number | Part No. USA | Description | Connection | Kit Includes |
| 32-64534 | 64534 | Aqua Jet 5.2 Wash Down Pump Kit, 12V | ½" NPT / hose ¾". ¾" GHT, Hose ¾" GHT Bulkhead fitting – Inlet ¾" hose, outlet ¾" GHT |
Aqua Jet WD 5.2, inlet strainer, spray pistol, hose, bulkhead fitting, hose connectors, barb port fittings, panel switch |
| 32-64534R-24 | 64534-24 | Aqua Jet 5.2 Wash Down Pump Kit, 24V | ||
| * | 64534CL | Aqua Jet 5.2 Wash Down Pump Kit, 12V, Clamshell | ½" NPT / hose ¾". ¾" GHT, Hose ¾" GHT | Aqua Jet WD 5.2, inlet strainer, spray pistol, hose and connectors |
| * Not available outside of theUSA | ||||
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

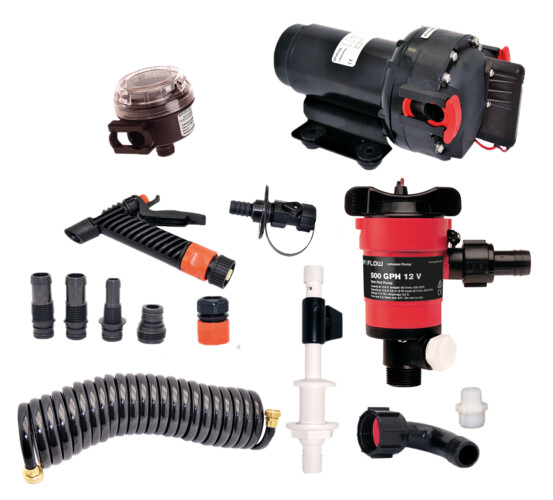

An Aqua Jet wash down/livewell kit that makes it easy to add a wash down and livewell pump to any boat.
- High capacity Aqua Jet Wash Down 5.2 (5 bar/70 psi) pump
- 500 GPH Twin Port Livewell Pump
- PUMProtector Inlet Strainer
- Spray nozzle
- Bulk head fitting with valve
- 7.5 meters (25') of coiled wash down hose
- Two illuminated panel switches - all in one package!
Technical Data
| Part No. | Part No. USA | Description | Connection | Kit Includes |
| 32-64634 | 64634 | Aqua Jet WD 5.2 GPM/ 500 GPH 12V Livewell | 3/8" BSP, 1/2" hose (Ø 13 mm) US 1/2" NPT, 3/4" hose (Ø 19 mm) 3/4" GHT | Aqua Jet WD 5.2, inlet strainer, spray pistol, hose and connectors, 500 GPH Twin Port Live Well Pump, Dura-Port fittings, Two 2-way panel switches |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
