Pilot Plate Evaporators

Product Type(s) : Evaporators
Description :

Anhydro Pilot Plate Evaporators allow for the determination of relevant process parameters necessary for the pre-purchase evaluation of a production plant.

REQUEST PRICING

FEATURES

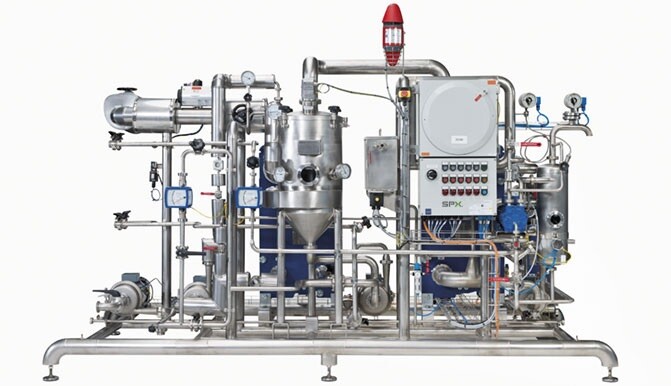

Anhydro Pilot Plate Evaporators are designed to concentrate small batches of extracts or other liquid products based on water or ethanol solvents. For other organic solvents (e.g., chlorinated solvents), the sealing material must be adapted. The concentration rate is limited by the viscosity of the concentrated liquid, up to approximately 500 cP. The plant is used for the concentration of water or organically dissolved extracts and consists of a plate evaporator with a downstream centrifugal separator. The evaporated vapors are condensed in a plate condenser, and a vacuum pump is connected to the condenser, allowing vacuum levels to be adjusted between 20 and 800 mbar.

The evaporation temperature can be regulated according to the product-specific boiling curve through the applied vacuum, enabling the concentration of even temperature-sensitive extracts.

Advantages

  • Determination of all process conditions necessary for the design and purchase of a production plant, such as product quality, evaporation behavior and temperature sensitivity.
  • Quick availability of the plant.
  • Option to rent the plant for several months.
  • Commissioning and operator training provided by specialists.
  • Expert consultancy available before, during and after test runs.

DIMENSIONS & SPECIFICATIONS

Service Data of the Pilot Plate Evaporation Plant

Dimensions evaporation unit:

2,500 x 1,800 x 2,000 (length x width x height)

Weight: Approx. 500 kg
Capacity evaporator: Approx. 100 l/h water evaporation
Volume balance tank: Approx. 100 liter
Installed electrical power: 7.0 kW
Steam requirement: Approx. 50 kg/h
Fresh water/cooling water requirement: Approx. 2 m/h from 15 - 35 C
Degree of explosion proofness: EEx e II T3
