Small Scale Spin Flash Dryers

Product Type:
Dryers - Nutrition and Health / Spin Flash Dryers

The Small Scale Spin Flash Dryer exists in 2 types: SFD 47, SFD 51. They are both considered to be a very economical drying method due to a higher solid content in the products.

Features

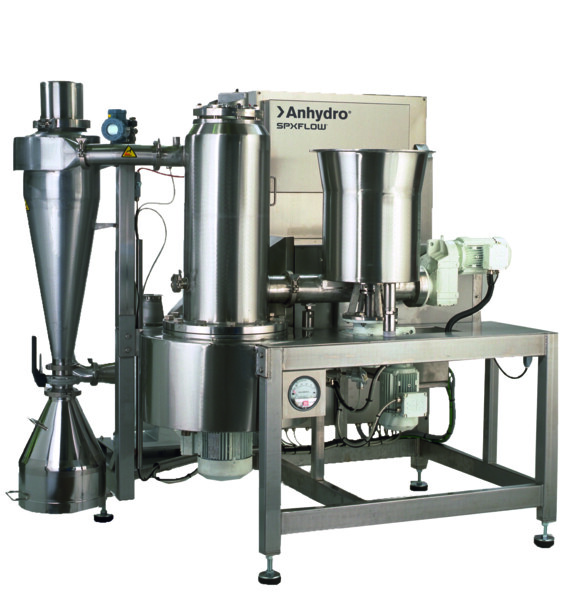

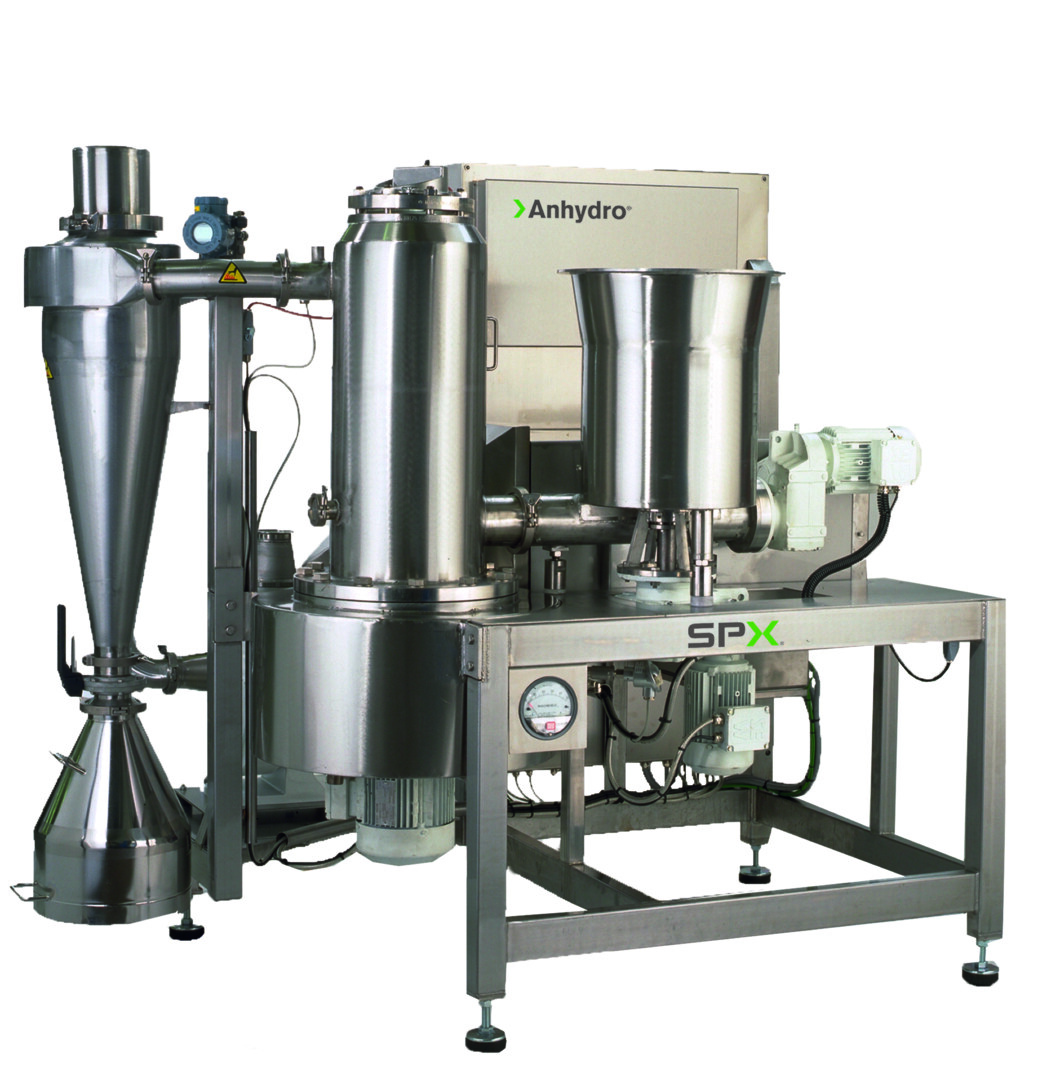

The SFD 47 is designed for continuous drying of cohesive and non-cohesive pastes, filter cakes, sludges as well as high-viscosity liquids. The plant is built for easy installation and maintenance.

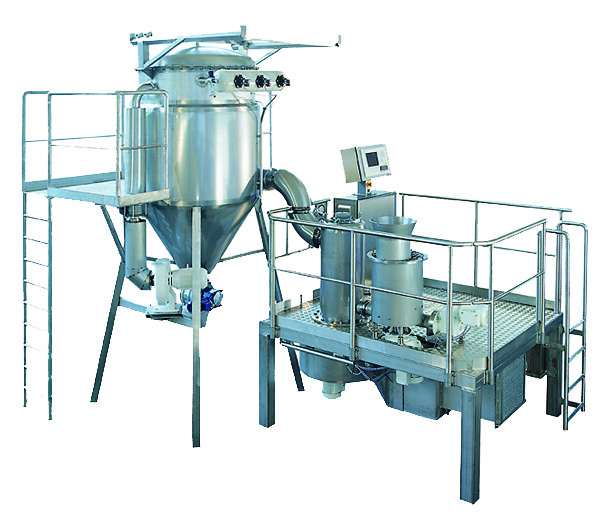

The SFD 51 is designed to carry out large testing and small-scale production at high temperatures for continuous drying of cohesive and non-cohesive pastes, filter cakes, sludges as well as high-viscosity liquids. It is considered to be a very economical drying method due to a higher solid content in the products. The plant includes a bag filter and is heated by an indirect gas heater.

The plant is delivered as a complete standardized unit including the core drying plant, support frame, PLC control system, safety system, cabling and wiring, packing and full documentation.

Specifications

Capacity:

Water evaporation rate, max: 120 kg/h

Drying air rate, max: 4400 GPM (1000 m3/h)

Inlet air temperature, max: 932°F (500°C)

Dimensions

Floor space: 181 x 130 in (4600 x 3300 mm)

Height: 157 in (4000 mm)

Recommended free height: 217 in (5500 mm)

Weight net (plant and filter): 4850 lbs. (2200 kg)

Downloads
Brochures
Spin Flash Drying ID-ANH-303 GB DE
List of Products ID-602 GB
Datasheets
Spin Flash SFD47 ANH-301 US GB
Spin Flash SFD51 ANH-302 US GB
Parts and service ID-501 GB
Spin Flash Dryers Spare Parts ID-304 GB
