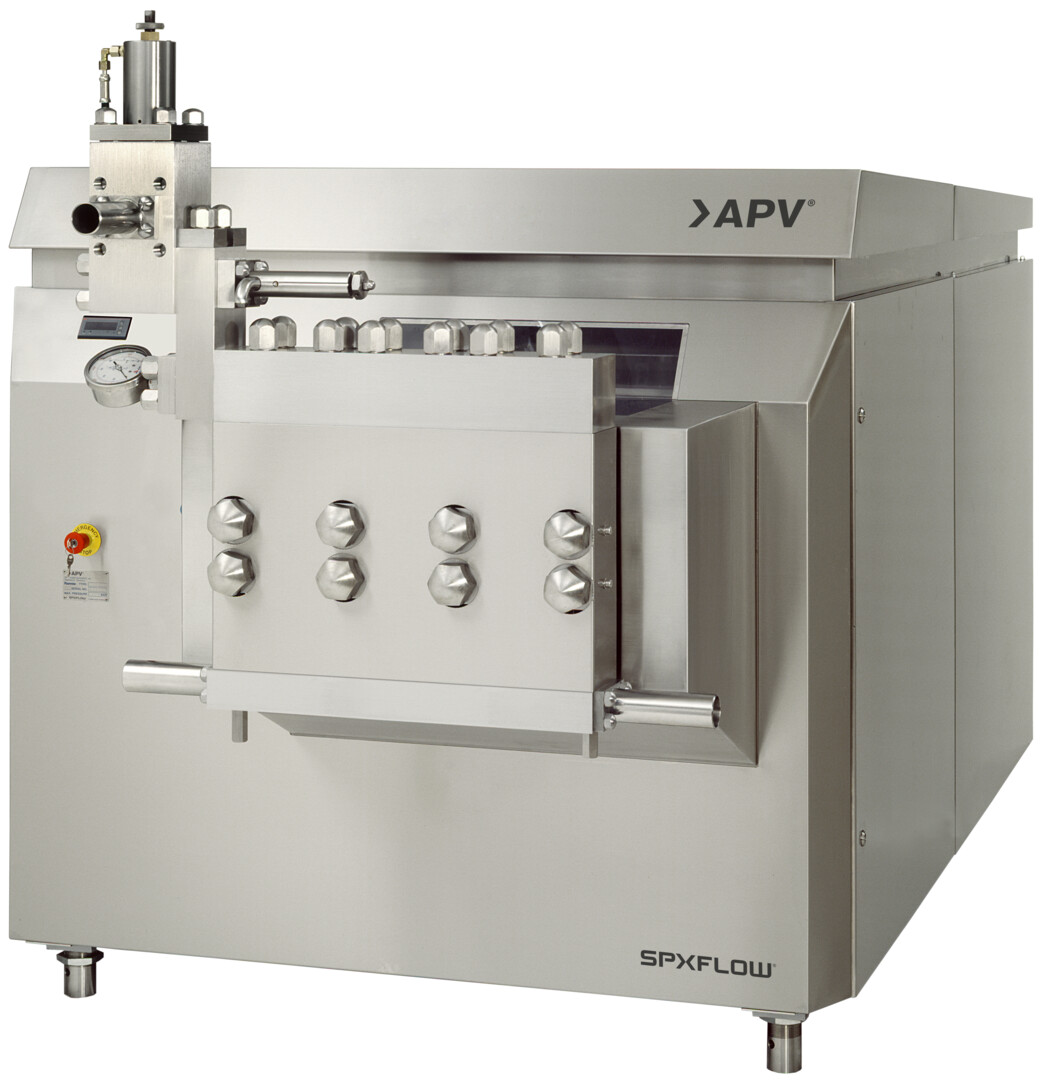

APV Rannie® 132T / Gaulin® 132T - High Pressure Homogenizers

Product Type(s) : General Homogenizers
Description :

The APV Rannie® 132T and Gaulin® 132T are high-performance, high-pressure 3 plunger homogenizers engineered for superior particle size reduction and emulsion stability. Designed for a wide range of industrial and sanitary applications, these homogenizers deliver consistent results with maximum efficiency and reliability.

Capacity :

Homogenizer Services


WHERE TO BUY

FEATURES

The APV Rannie® 132T and Gaulin® 132T are high-performance, high-pressure homogenizers engineered for exceptional particle size reduction and superior emulsion stability. Designed to meet the demands of both industrial and sanitary applications, these homogenizers deliver consistent, reliable results with maximum efficiency.

Each unit features a 3-plunger design and is available with either a Mono-Block or Three-Piece valve housing. A wide range of standard and custom options is offered, including tailored selections for plungers, packings, pump valves, valve seats and seals to suit your specific application needs.

Capacities range from 4,000 lph (1,060 gph) at 1,000 bar (14,500 psi) to 25,000 lph (6,630 gph) at 170 bar (2,500 psi) depending on the selected configuration .

Benefits:

  • User-friendly operator and service interface
  • All controls placed logically together
  • Modular electrical controls
  • Service-friendly configuration
  • High reliability maintenance friendly design
  • Internal gear transmission
  • Enhanced oil treatment and cooling system with oil filter as standard
  • Easy access for servicing, reduced maintenance time
  • Access to electric control box from the outside

Features:

The Liquid End Includes:

  • Gaulin monoblock or Rannie 3-part liquid end
  • Ball or poppet pump valves
  • Pressure gauges
  • Pressure relief valve
  • Weld-stub product connections
  • 3-A sanitary design in stainless steel or duplex materials
  • Hard metal coated long life plungers
  • Hydraulic valve actuator for smooth and stable control
  • Single or two stage homogenizing valve, to meet your application requirements

The Power End Includes:

  • Internal gear transmission
  • Sanitary all welded frame
  • Oil cooling system with external plate heat exchanger and temperature transmitter
  • Oil filter including alarm

Other Standard Features:

  • All equipment wired to stainless steel control cabinet
  • Emergency stop
  • Stainless steel sanitary cladding
  • Set of tools
  • Set of packings
Key Applications

Field of application

  • Dairy
  • Food
  • Cosmetic
  • Chemical
  • Pharmaceutical
  • Biotech products

OPTIONS & PERFORMANCE

Standard Options

  • Homogenizer or pump
  • Single of two stage homogenizing valve
  • Manual or automatic hydraulic control system for local or remote operation
  • Potentiator for local homogenizing pressure control
  • Pulsation dampener(s) on inlet and outlet, suitable for CIP
  • Aseptic cylinder design, SIP compatible
  • Alternative product connections e.g. tri-clamp, high-pressure outlet, dual inlet
  • Inlet pressure gauge
  • Outlet pressure gauge or transmitter
  • Water saving serial plunger lubrication
  • Plunger lubrication control package
  • Energy saving Micro-Gap homogenizing valve
  • Various homogenizing valve configurations
  • Ceramic plungers
  • Choice of materials for cylinder bloc, pump valve, homogenizing valves, packings etc.
  • Motor starter cabinet
  • Control cabinet with PLC or relay operation
  • Main motor external cooling fan
  • Start/stop buttons
  • Enhanced spare parts kit

Other options on request

  • Various enhanced liquid end block designs for special applications
  • Actuated pressure relief valve
  • Vibration sensors
  • Explosion-proof design
  • Electro-polished wetted parts
  • Surface finish report
  • UFO – Oil Filtration system
  • Documentation packages for material traceability, certification and cGMP support

VIDEOS

Rannie and Gaulin Homogeniser Animation

Gaulin Homogenizer Maintenance and Service Procedures

Homogenizer Rannie and Gaulin Animation
