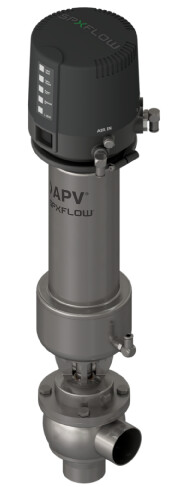

Aseptic Pressure Relief Single Seat Valves - UFMS4
Product Type(s) : Aseptic Valves
Description :
WHERE TO BUY
The UFMS4 valve is an Aseptic Pressure Relief Valve, used to protect pumps and related equipment from pressure spikes downstream. It can relieve pressure from 0-10 bar and includes controls for monitoring pressure relief events and actuating the valve during clean in place. Vital for maintaining aseptic conditions and ensuring product quality and safety in processes where sterility is paramount and pressure relief is necessary.
Product Specifications
Materials:
- Product wetted parts: AiSi 316L, 1.4404(DIN EN 10088)
- Non-Product wetted parts: AiSi 304, 1.4301 (DIN EN 10088)
- Seal: EPDM, HNBR, FPM (FDA Compliant)

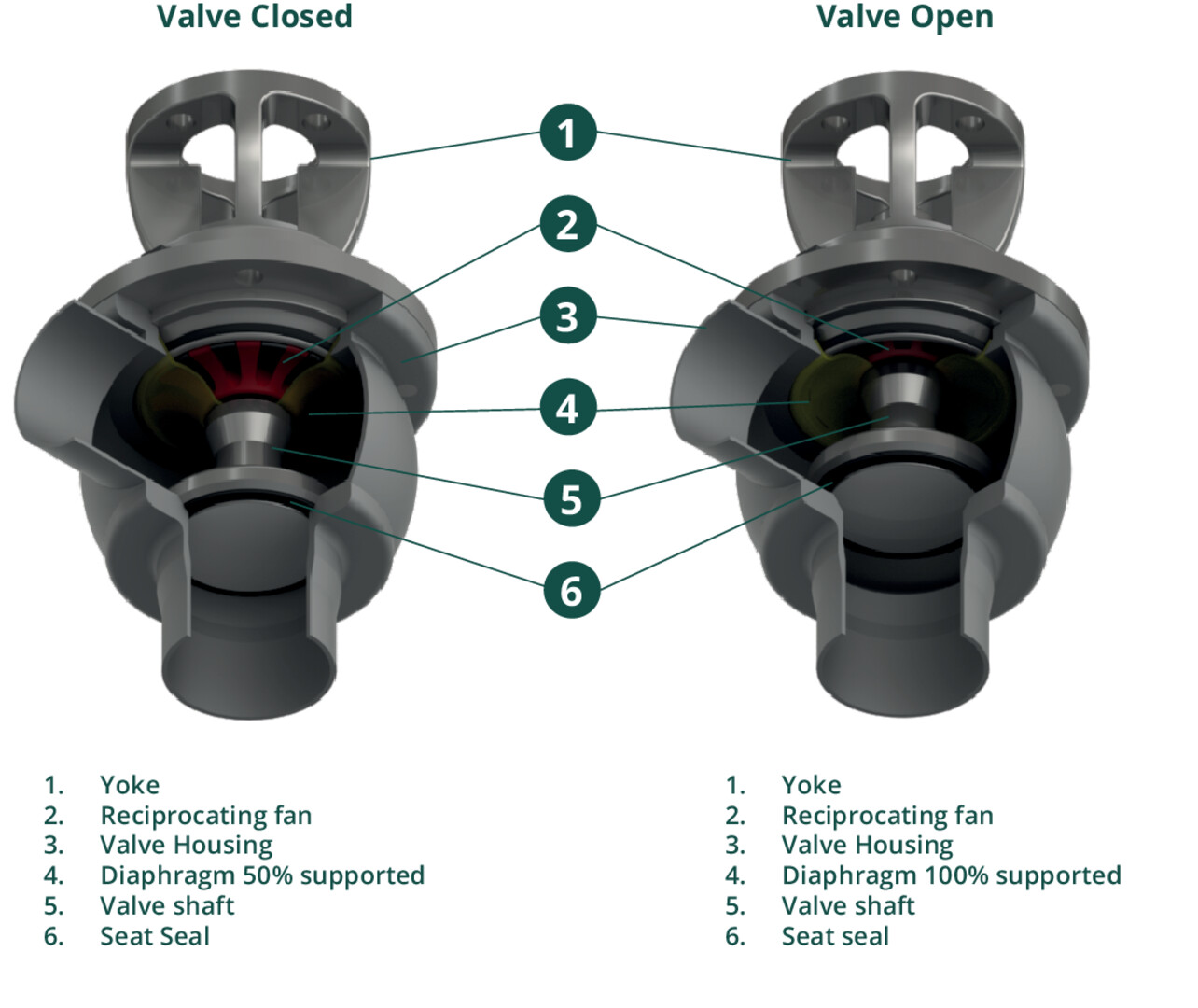

- Diaphragm: TFM
Size:
- 1" - 4" O.D Tube
- DN25 - DN100
Pressure Ratings:
- Operating Pressure: 0 - 10 bar; 0 - 145psi
Control Air Pressure
- Min. 87 psi (6 bar), max. 116 psi (8 bar)
Temperature Ratings
- EPDM, HNBR: Max. 275ºF (135°C), short time 284ºF (140ºC) - no steam
- FPM (not to be used for hot water) 212ºF (100°C)
Sterilization Temperature (approx. 20 min.):
- EPDM 302ºF (150ºC)
- HNBR 284ºF (140ºC)
Housing / Body Configurations:
- A comprehensive range of valve housings and body configurations are available to accommodate various requests.
Control Units:
- The APV UFMS4 valves can be equipped with a wide array of CU4 and CU4plus control units. These units are electrically designed for direct connection (DC) to a PLC system (CU4, CU4plus Direct Connect) and to fieldbus protocols like AS-i. Additionally, CU4plus also supports fieldbus protocols such as IO-Link.
Proximity Switches:
- Proximity switches detect valve full open or close conditions during any necessary CIP cleaning.
