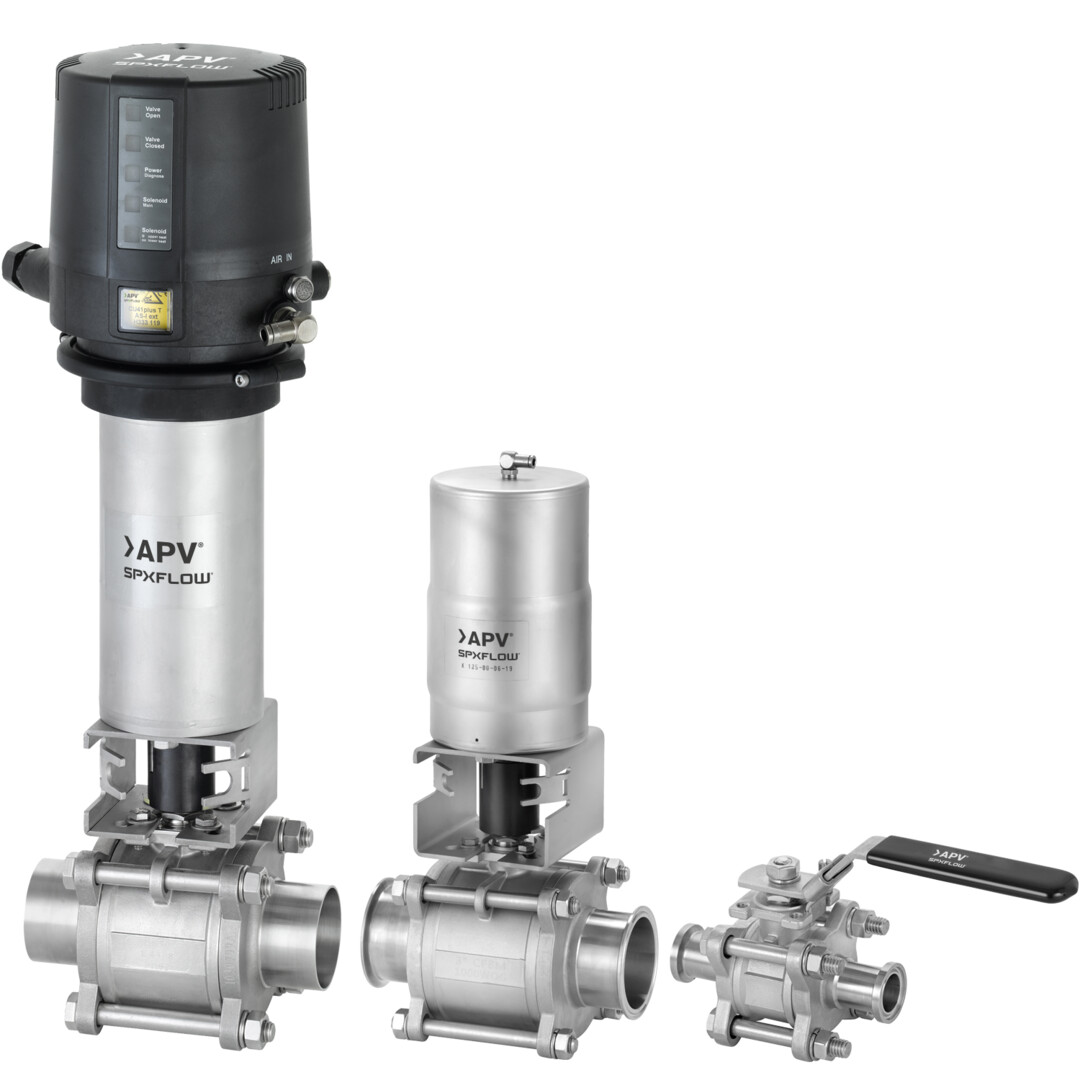

BLV1 Series - Ball Valves

Product Type:
Valves / Ball Valves

Ball valves offer great economy and durability for a wide range of applications that do not require completely hygienic, cleanable-in-place (CIP) service. They are easy to install and maintain.

We are here to help!

Contact Us
Where To Buy
Features
  • All stainless steel construction: forged body and ball
  • FDA approved materials including reinforced PTFE seats
  • Cavity filled to minimize residue build-up around ball and seat
  • Full port opening for unrestricted flow in the open position
  • High temperature and pressure ratings for demanding service applications
  • Maintenance-free pneumatic actuator with “Normally Closed”, “Normally Open” or “Double Acting” orientations
  • Standard ISO pattern mounting pad for easy retrofit from manual handle to pneumatic actuator
  • Three piece design with floating seals
  • Lockable manual handle option for added security
  • Available with the identical control unit options offered on other valve types to give common look, controls interface, and spare parts across a multi-valve system
Key Applications

Food and Drinks

  • Soups & Sauces
  • Flavorings & Ingredients
  • Brewery, Wort, Wine
  • Pet Food
  • Fats & Oils, Animal Oils
  • Cereals

Personal Care

  • Extracts
  • Face Creams & Lotions
  • Perfumes
  • Soaps
  • Hair Styling Gels & Liquids
  • Dyes & Alcohols

Chemical

  • Paints
  • Adhesives
  • Coatings
  • Oils & Lubricants
  • Detergents
  • Emulsions
  • Fuels

Utilities

  • Steam
  • CIP Flush
  • High Purity Water
  • Water for Injection (WFI)
Specifications

Materials:

Ball:

  • 1.4404 (DIN EN 10088) / AISI 316L

Body:

  • 1.4408/1.4404 (DIN EN 10088) / AISI 316

Seat:

  • PTFE Cavity Filled

Internal Surface Finish:

  • ≤0.8µ (≤ 32 Ra)

Sizes:

  • DN 15 - 100
  • Inch 0.50" - 4.00"
Dimensions

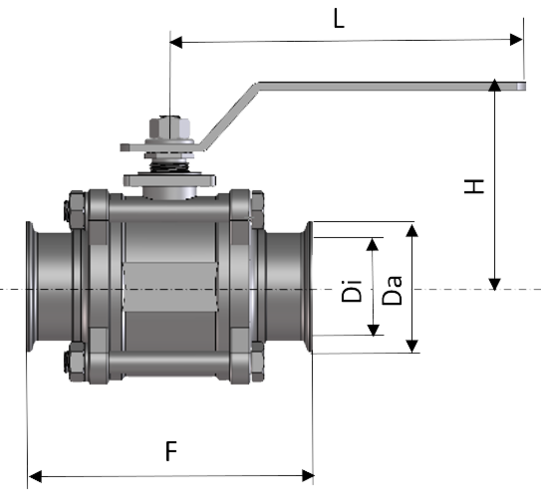

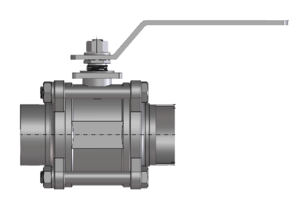

BLV1 - H - DN15-100; 0.50" - 4.00"

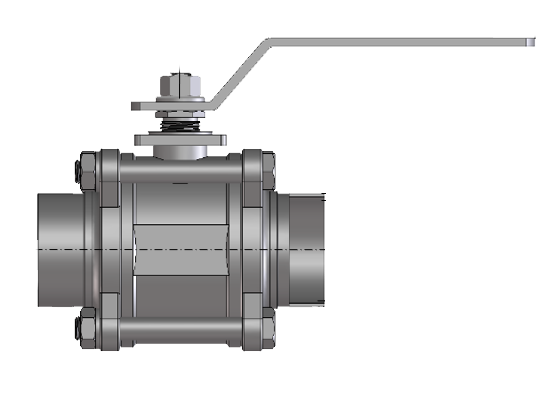

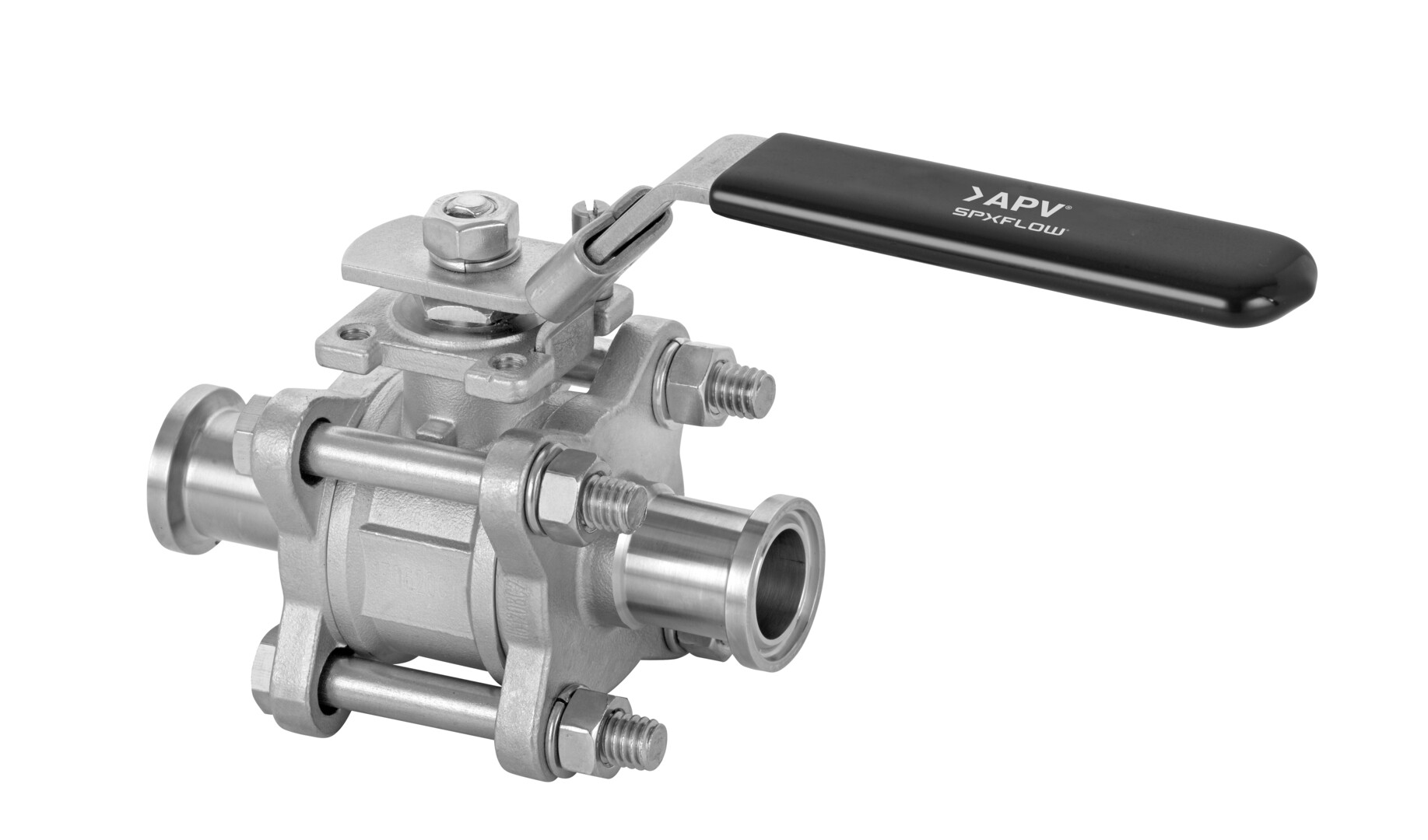

Ball valve, manually operated, without feedback

  DIMENSIONS mm (in)
Valve Size DI Da (WELD) Da (CLAMP) F L H WEIGHT
KG (LBS)
DN
15 16 (0.63) 19 (0.75) 34 (1.35) 88 (3.46) 132 (5.20) 64 (2.52) 0,75 (1.5)
20 20 (0.79) 23 (0.91) 34 (1.35) 101 (3.98) 132 (5.20) 69 (2.72) 0,85 (2)
25 26 (1.02) 29 (1.14) 50,5 (1.99) 114 (4.49) 165 (6.50) 69 (2.72) 1,00 (2)
40 38 (1.50) 41 (1.61) 50,5 (1.99) 139 (5.47) 194 (7.64) 88 (3.46) 2,20 (5)
50 50 (1.97) 53 (2.09) 64 (2.52) 155 (6.10) 194 (7.64) 97 (3.82) 3,65 (8)
65 66 (2.60) 70 (2.76) 91 (3.58) 197 (7.76) 251 (9.88) 131 (5.16) 7,65 (17)
80 81 (3.12) 85 (3.35) 106 (4.17) 229 (9.02) 251 (9.88) 144 (5.67) 10,55 (23)
100 100 (3.94) 104 (4.10) 119 (4.69) 243 (9.57) 332 (13.07) 172 (6.77) 19,15 (42)
INCH
0.50 9,4 (0.37) 12,7 (0.50) 25 (0.98) 88 (3.46) 132 (5.20) 64 (2.52) 0,75 (1.5)
0.75 15,8 (0.62) 19,1 (0.75) 25 (0.98) 101 (3.98) 132 (5.20) 69 (2.72) 0,85 (2)
1.00 22,2 (0.87) 25,4 (1.00) 50,5 (1.99) 114 (4.49) 165 (6.50) 69 (2.72) 1,00 (2)
1.50 34,9 (1.37) 38,1 (1.50) 50,5 (1.99) 139 (5.47) 194 (7.64) 88 (3.46) 2,20 (5)
2.00 47,6 (1.87) 50,8 (2.00) 64 (2.52) 155 (6.10) 194 (7.64) 97 (3.82) 3,65 (8)
2.50 60,3 (2.37) 63,5 (2.50) 77,5 (3.05) 197 (7.76) 251 (9.88) 131 (5.16) 7,65 (17)
3.00 72,9 (2.87) 76,1 (3.00) 91 (3.58) 229 (9.02) 251 (9.88) 144 (5.67) 10,55 (23)
4.00 97,6 (3.85) 101,6 (4.00) 119 (4.69) 243 (9.57) 332 (13.07) 172 (6.77) 19,15 (42)

BLV1 - HL - DN15-100; 0.50" - 4"

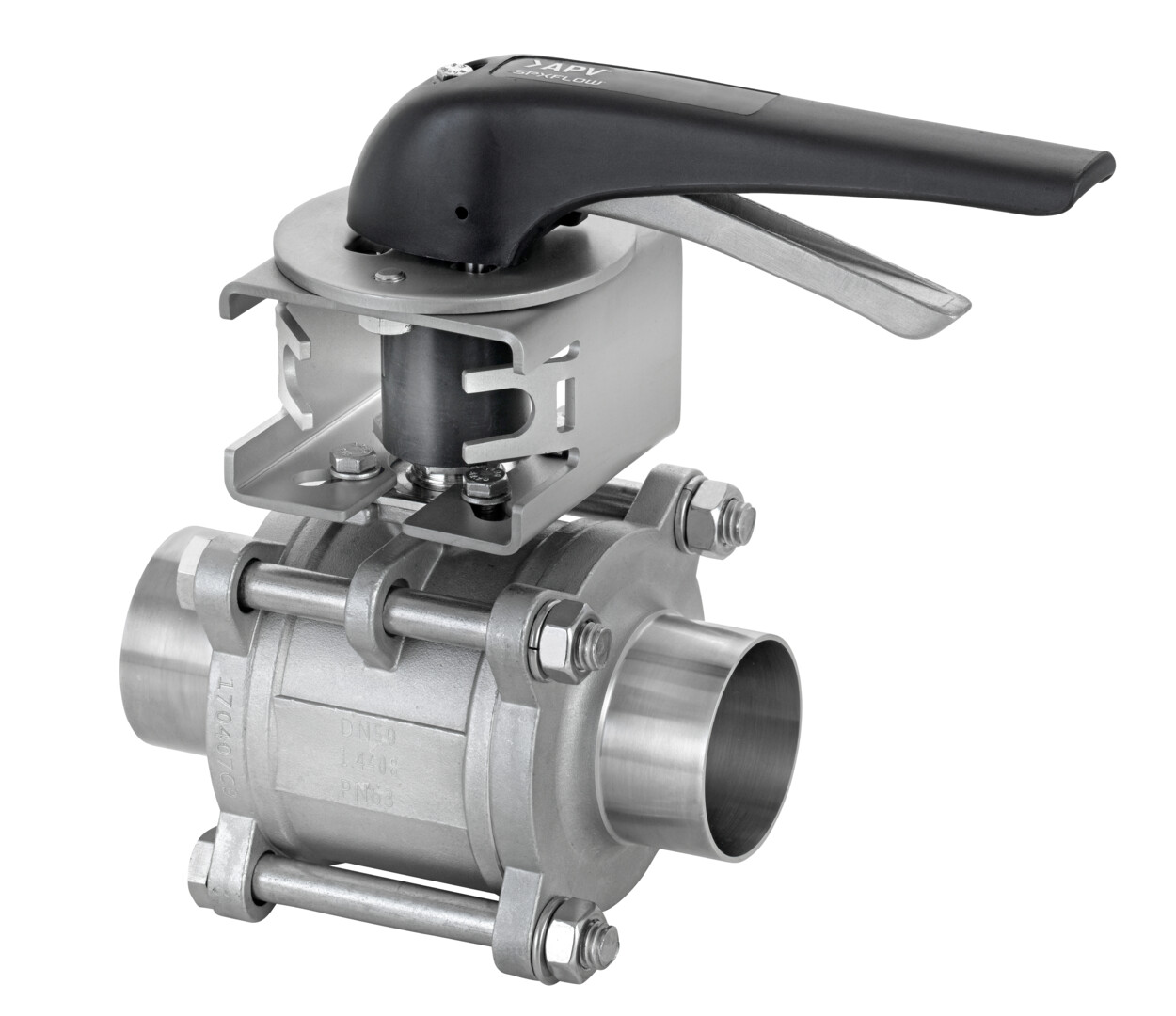

Ball valve, manually operated, with feedback

DN15 -50; 0.50" - 2.00" DN65 -100; 2.50" - 4.00"
  DIMENSIONS mm (in)

Valve Size DN (INCH)

H L WEIGHT
KG (LBS)
15 (0.50) 132 (5.20) 165 (6.50) 4,9 (11)
20 (0.75) 137 (5.39) 165 (6.50) 5,1 (11)
25 (1.00) 140 (5.51) 165 (6.50) 5,3 (11.5)
40 (1.50) 154 (6.06) 165 (6.50) 6,4 (14)
50 (2.00) 162 (6.38) 165 (6.50) 7,8 (17)
65 (2.50) 234 (9.21) 251 (9.88) 17,9 (39.5)
80 (3.00) 247 (9.72) 251 (9.88) 20,8 (46)
100 (4.00) 275 (10.83) 332 (13.07) 38,2 (84)

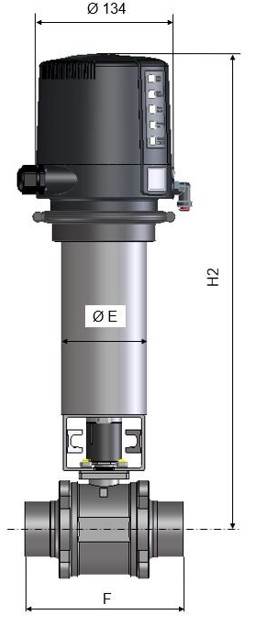

BLV1 - NC/FZ - DN15-100; .50"-4.00"

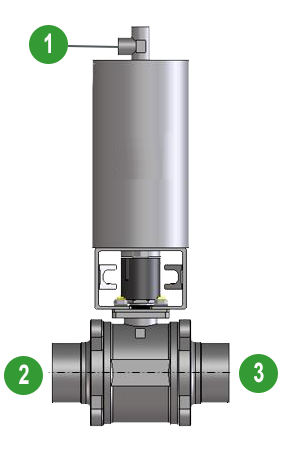

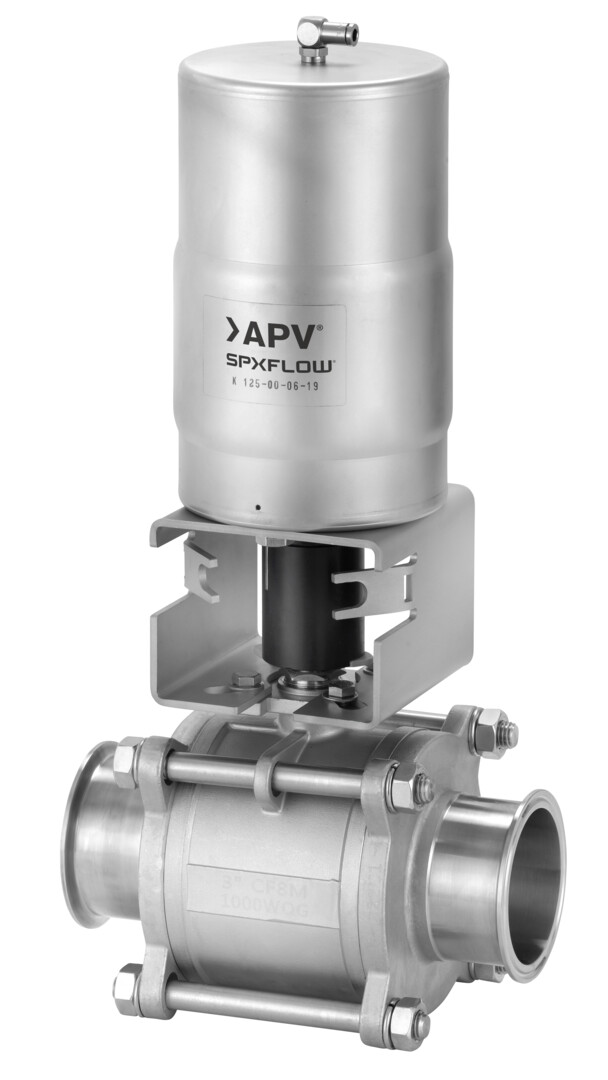

Ball valve, actuated, with turning actuator / control unit



  DIMENSIONS mm (in)
Valve Size
DN (INCH)
F E H1 H2 WEIGHT
KG (LBS)
Without CU
WEIGHT
KG (LBS)
With CU
15 (0.50) 88 (3.46) 85 (3.35) 250 (9.84) 429 (16.89) 3,7 (8) 4,9 (11)
20 (0.75) 101 (3.98) 85 (3.35) 255 (10.03) 434 (17.09) 3,9 (8.5) 5,1 (11)
25 (1.00) 114 (4.49) 85 (3.35) 258 (10.16) 437 (17.20) 4,1 (9) 5,3 (11.5)
40 (1.50) 139 (5.47) 85 (3.35) 272 (10.71) 451 (17.76) 5,2 (11.5) 6,4 (14)
50 (2.00) 155 (6.10) 85 (3.35) 280 (11.02) 459 (18.07) 6,6 (14.5) 7,8 (17)
65 (2.50) 197 (7.76) 135 (5.31) 382 (15.04) 561 (22.09) 16,7 (39) 17,9 (39.5)
80 (3.00) 229 (9.02) 135 (5.31) 392 (15.43) 571 (22.48) 19,6 (43) 20,8 (46)
100 (4.00) 243 (9.57) 189 (7.44) 453 (17.83) 632 (24.88) 37,0 (81.5) 38,2 (84)
Options

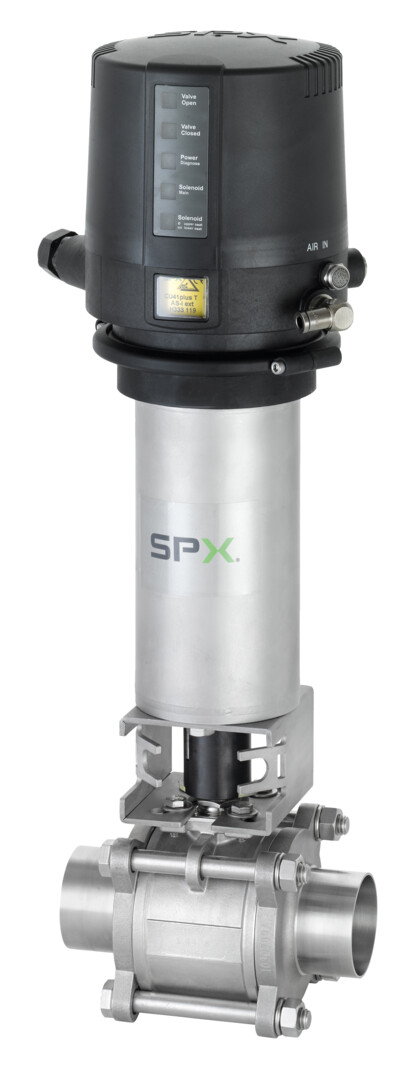

Control Units

CU4 & CU4plus Series Features and Benefits:

  • Automated control and position monitoring for reliable processing
  • Helps reduce external solenoid valve cabinets
  • Reliable and long service life - robust clamp connection, water tight seals and reinforced stainless steel air coupling threads to avoid
    air leakages
  • Clarity - clear and bright indication of valve position - 5 diodes in LED panel and convenient location
  • Standardisation - same control unit used on various SPX FLOW valve lines, offers common look and control interface
  • IP67 (NEMA 6) wash-down rating

Connector Options - S/O Cord Grip for hard wire (standard)

Position Indication Options - 2 internal feedback sensors for valve open/valve closed position detection

Interface Options - 24 V DC Direct Connect or AS-i Field Bus Card

Solenoid Options - 24 V DC or 120 V AC

Additional Options

Proximity Switch Only:

  • Available with manual handle and pneumatic actuators
  • 24VDC or 120VAC prox sensors with LED
  • Feedback for valve open/valve closed position detection
Performance

Performance Ratings:

Maximum Line Pressure:

  • 10 bar (145 psi)

Temperature Ratings:

  • 0 - 140°C (0-284ºF)
  • Short-term steam: 160°C (320ºF)
Drawings & Models
BLV1 Series DIN METRIC
Manual Handle
zip
Manual Handle with Prox Feedback
zip
Pneumatic Actuator
zip
Actuator with CU4 Control Unit
zip
BLV1 Series OD INCH TUBE
Manual Handle
zip
Manual Handle with Prox Feedback
zip
Pneumatic Actuator
zip
Actuator with CU4 Control Unit
zip
Downloads
Brochures
BLV1 Series - Ball Valves GB CN DE ES FI FR NL PL PT
Datasheets
Valve Key ID-8047 GB
Flyers
Your One Stop Shop for Valve GB
MANUALS
BLV1 Ball Valves GB CN DE ES FI FR NL PL PT
Press Release
SPX® FLOW Announces New APV Ball Valve Series GB
Additional Technical Data

Maximum Tightening Torque and Actuator Sizes



BALL VALVE NOMINAL DIMENSION
DN 15 20 25 40 50 65 80 100
INCH 0.50 0.75 1.00 1.50 2.00 2.50 3.00 4.00
Turning Actuator Size K080 K125 K180
Tightening Torque (Nm) 5,0 6,5 9,5 18,0 23,5 59,5 64 96
