APV homogenizers have been a global standard of quality for more than 120 years. And now we’ve engineered a homogenizer for manufacturers that want the best quality possible at an affordable price. The new EQ 37T can be configured as a pump, single- or two-stage homogenizer and comes with all the features you need for reliable performance.
Configurable for Versatile Processing
The EQ 37T features a monoblock liquid end made from stainless steel, high-efficiency hard-wearing pump valves and homogenizing valves. The EQ 37T is designed for cleaning in place (CIP) and is fitted with FDA, EN1935:2004 and GB4806 product contact materials as standard.
Key Benefits
Quality Without Compromise
Simplicity - Plug and Produce
Integrated control panel for fast and simple installation
Seamless integration with your existing processes
Automatic water and air isolation valves included as standard
>Performance You Can Trust
Robust APV homogenizer construction
Proven components for consistent and dependable operation
Materials and options matched to dairy and beverage requirements
Peace of Mind
Designed for long operating life
All service areas are easy to access
Supported by SPX FLOW’s global aftermarket network
Standard Features
Built-In Components
Monoblock liquid end
Ball type pump valves and seats in stellite material
Manual pneumatic control
Integrated over-pressure monitoring
Integrated control cabinet
Oil level indicator
Stainless steel plungers
Stainless steel cladding
Automatic air and water isolation valves
Weld connection
Key Applications
The EQ homogenizer range is specifically designed for low and medium pressure applications in the dairy and beverage sectors. Examples include:
Dairy products such as milk, yogurt, cream and flavored milk
Beverage products such as fruit juice and fruit nectar

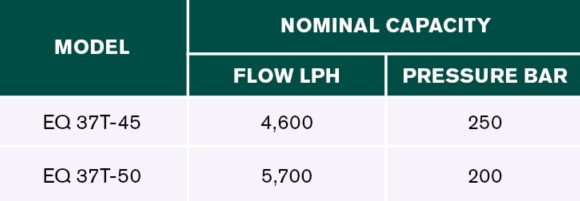

Model
Nominal Capacity
Flow LPH
Pressure Bar
EQ 37T-45
4,600
250
EQ 37T-50
5,700
200

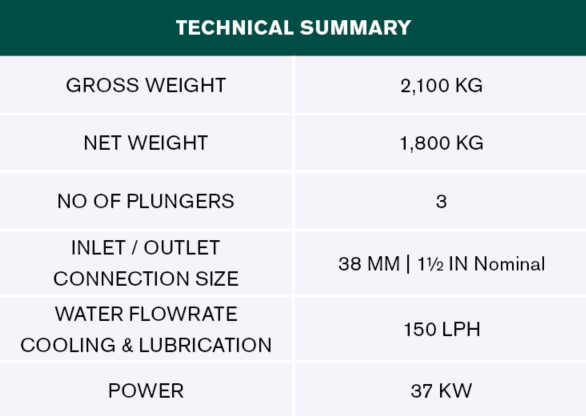

Technical Summary
Gross Weight
2,100 kg
Net Weight
1,800 kg
No. of Plungers
3
Inlet / Outlet Connection Size
38 mm | 1½ in Nominal
Water Flowrate Cooling & Lubrication
150 LPH
Power
37 kW

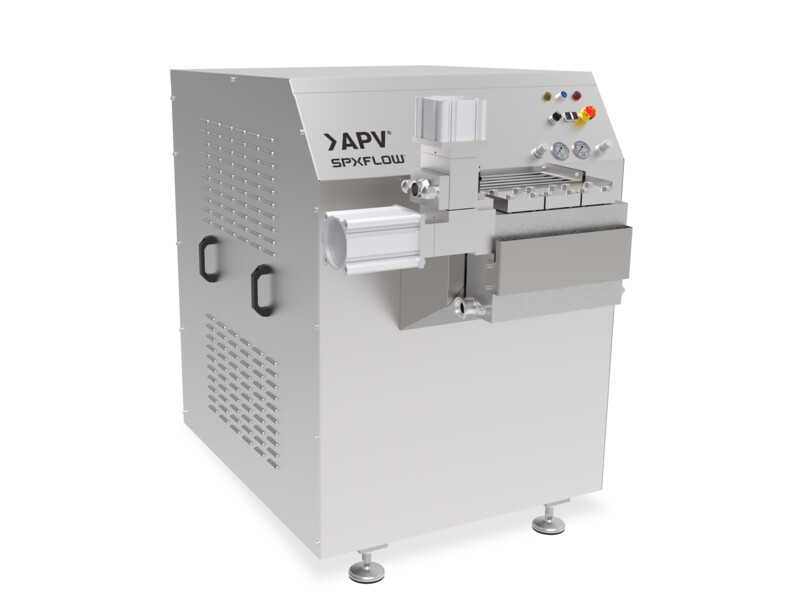

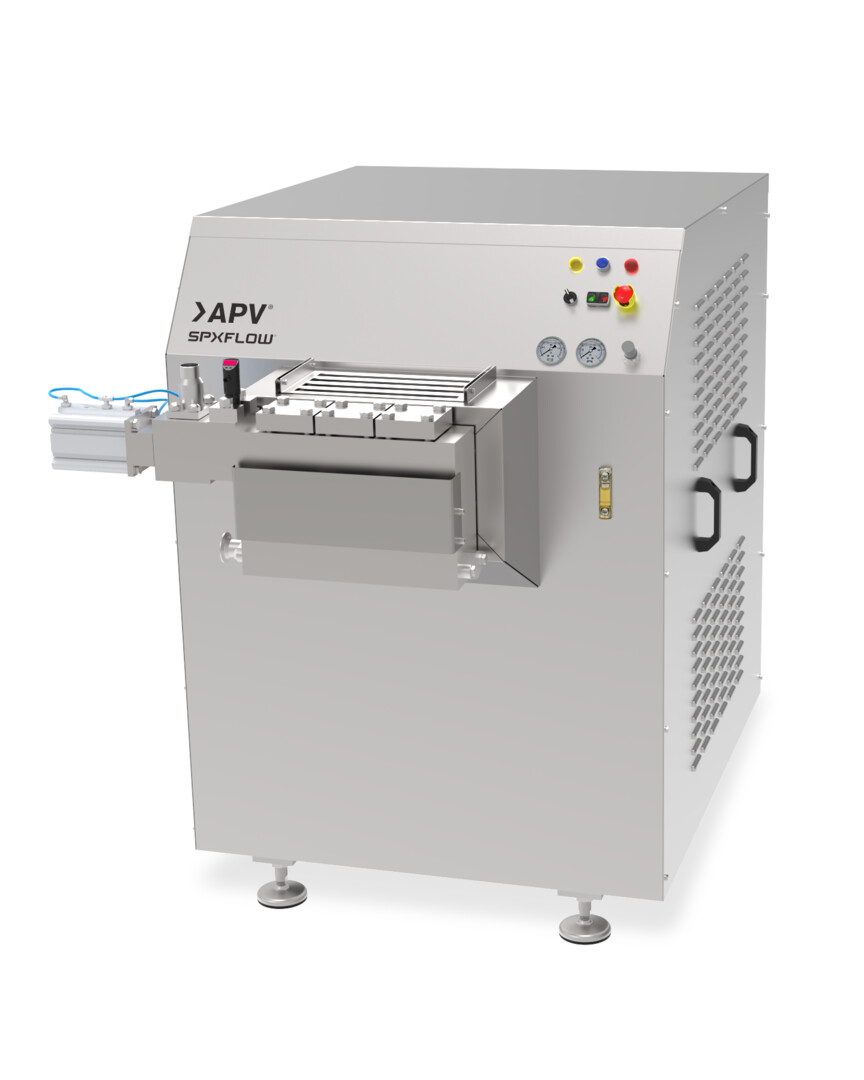

EQ 37T Homogenizer
Homogenizer or pump
Single or two-stage homogenization
High-pressure discharge connection
Connections in SMS or Tri-clamp
Inlet pressure gauge
Choice of materials for pump and homogenizing valves
