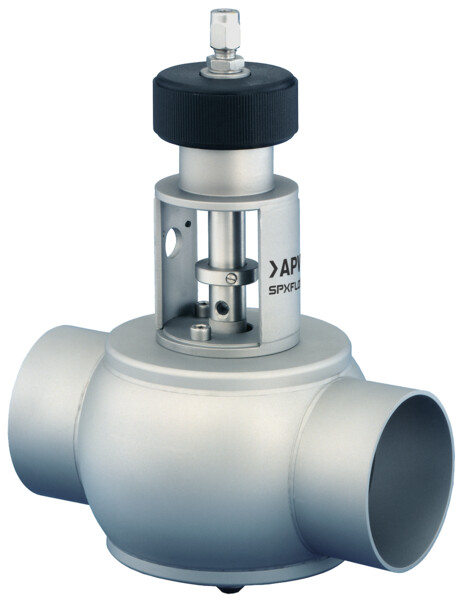

If ensuring product safety is critical to your operation, the PR2 sampling valve offers hygienic performance through innovative PTFE shaft construction and sealing technology.
Key Advantages
Hygienic and Cleanable Design
PTFE shaft and specialized guide prevent contamination without extra seat seals
Dead-pocket-free valve body ensures thorough cleaning
Valve bore matches pipe cross section for smooth flow
Operational Flexibility
Quick conversion between manual and pneumatic control
Manual and pneumatic versions both feature PTFE shafts and closing springs
Seamless integration into in-line process systems
Valve shaft fully encapsulated in PTFE for safety
Specifications and Options
Materials and Dimensions
All product-contact surfaces are constructed from AISI 316L / DIN EN 1.4404 stainless steel. Available in nominal sizes DN 25–100 (1″–4″).
Optional Features
Valve position feedback switch for pneumatic variants
PRD2 model includes steam connection for sterilization
Key Applications
Field of Application
With this valve bacteriologically safe samples can be taken directly from the pipeline.
