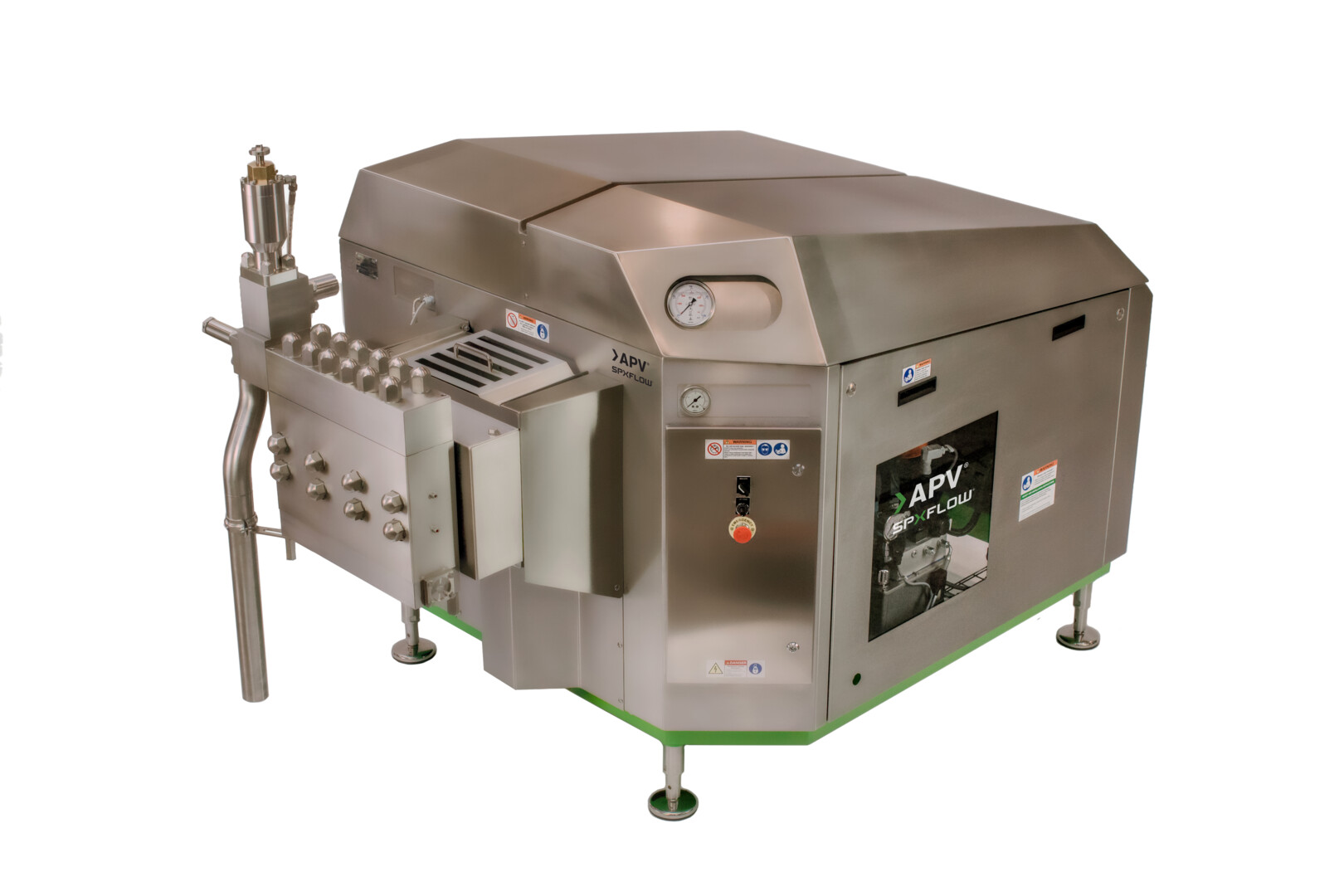

Rannie 57T and Gaulin 57T Series - High Pressure Homogenizers

Product Type:
Homogenizers / General Homogenizers

The more modular and flexible design of the APV 57T makes it suitable for a wide range of applications in dairy, food, beverage, industrial and pharmaceutical industries.

We are here to help!

Contact Us
Where To Buy

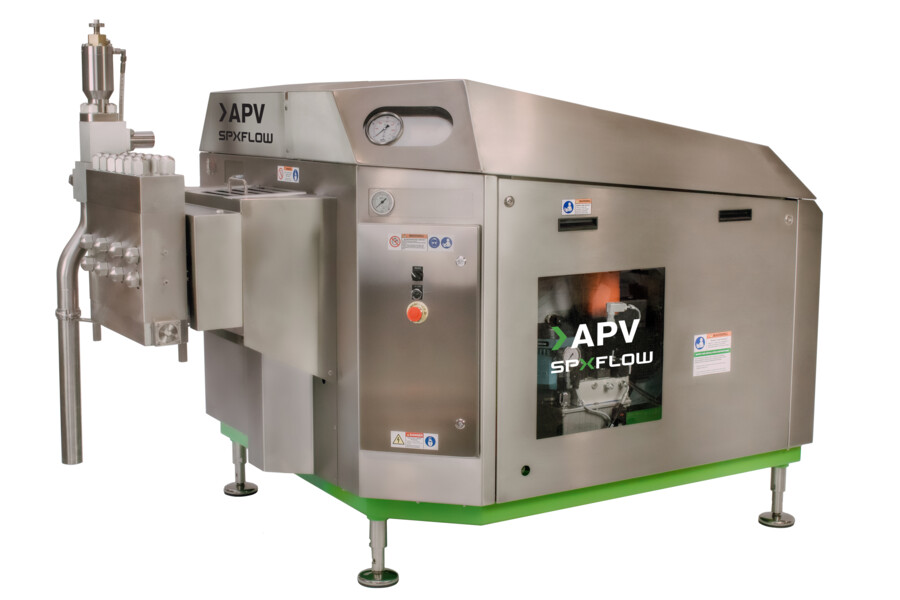

Features

Combining the design features of our Rannie®, Gaulin® Liquid Ends, the new Power End with improved operator interface and controls simplifies routine maintenance with an emphasis on reliability in order to reduce total costs of ownership.

Benefits:

Optimal Operator Interface

  • All controls placed logically together
  • Gauges and other visual indicators are visible from the operating position
  • Direct view of key power end check points through a window
  • Modular electrical controls

High reliability

  • Internal gear transmission
  • Enhanced oil treatment and cooling system with oil filter as standard
  • Low center of gravity for reduced vibration

Maintenance friendly design

  • Easy access for servicing, reduced maintenance time
  • Low machine height for ergonomic access
  • Visual service indicators
  • Improved cooling and oil treatment indicators
  • Access to electric control box from the outside

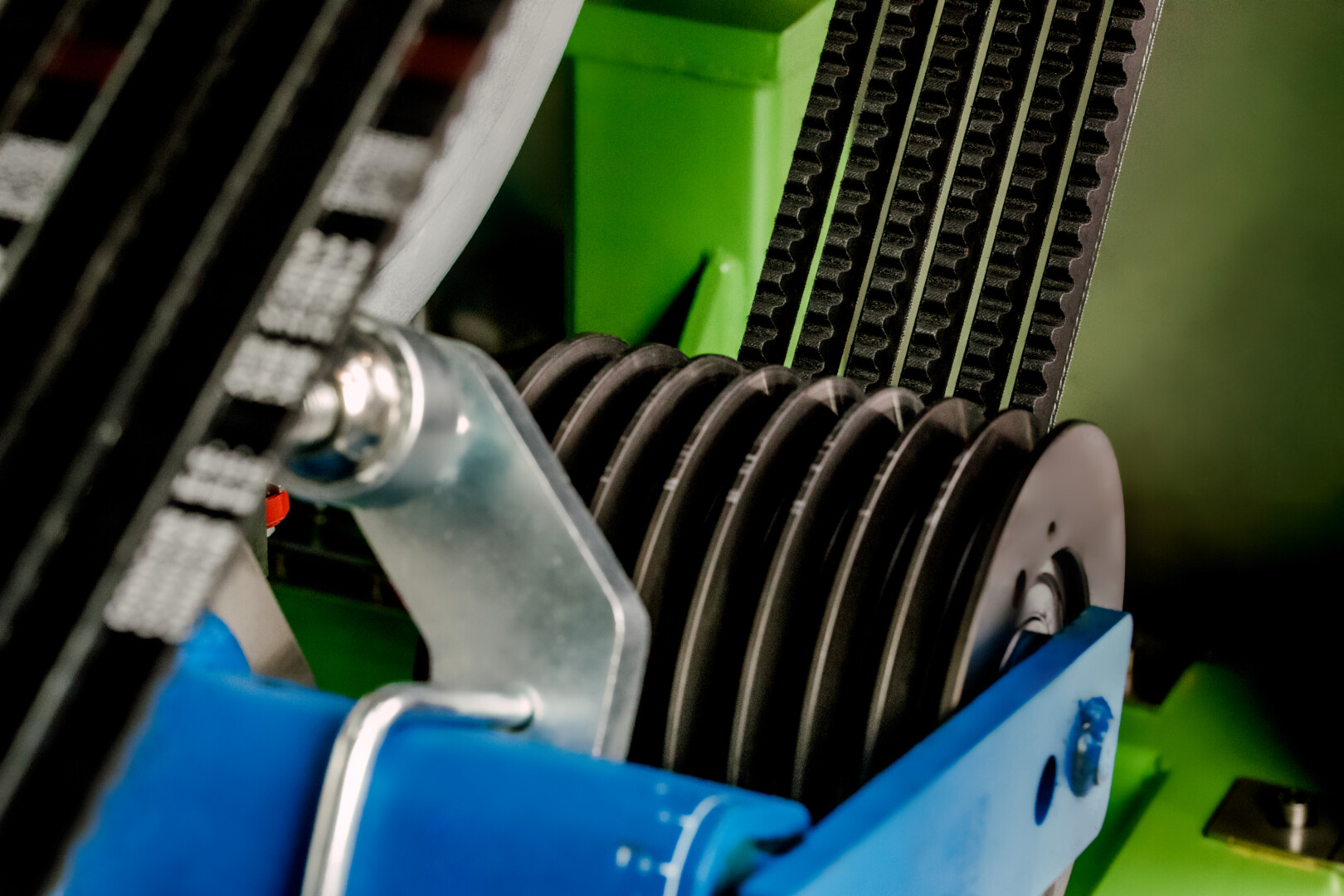

  • Built-in belt tensioner

Balanced low speed crankshaft for reduced noise




Features:

The Liquid End Includes

  • Pressure gauges
  • Pressure relief valve
  • Weld-stub product connections
  • 3-A sanitary design in stainless steel or duplex materials
  • Ball or poppet pump valves
  • Hard metal coated long life plungers
  • Hydraulic valve actuator for smooth and stable control
  • Single or two stage homogenizing valve, to meet your application requirements

The Power End Includes

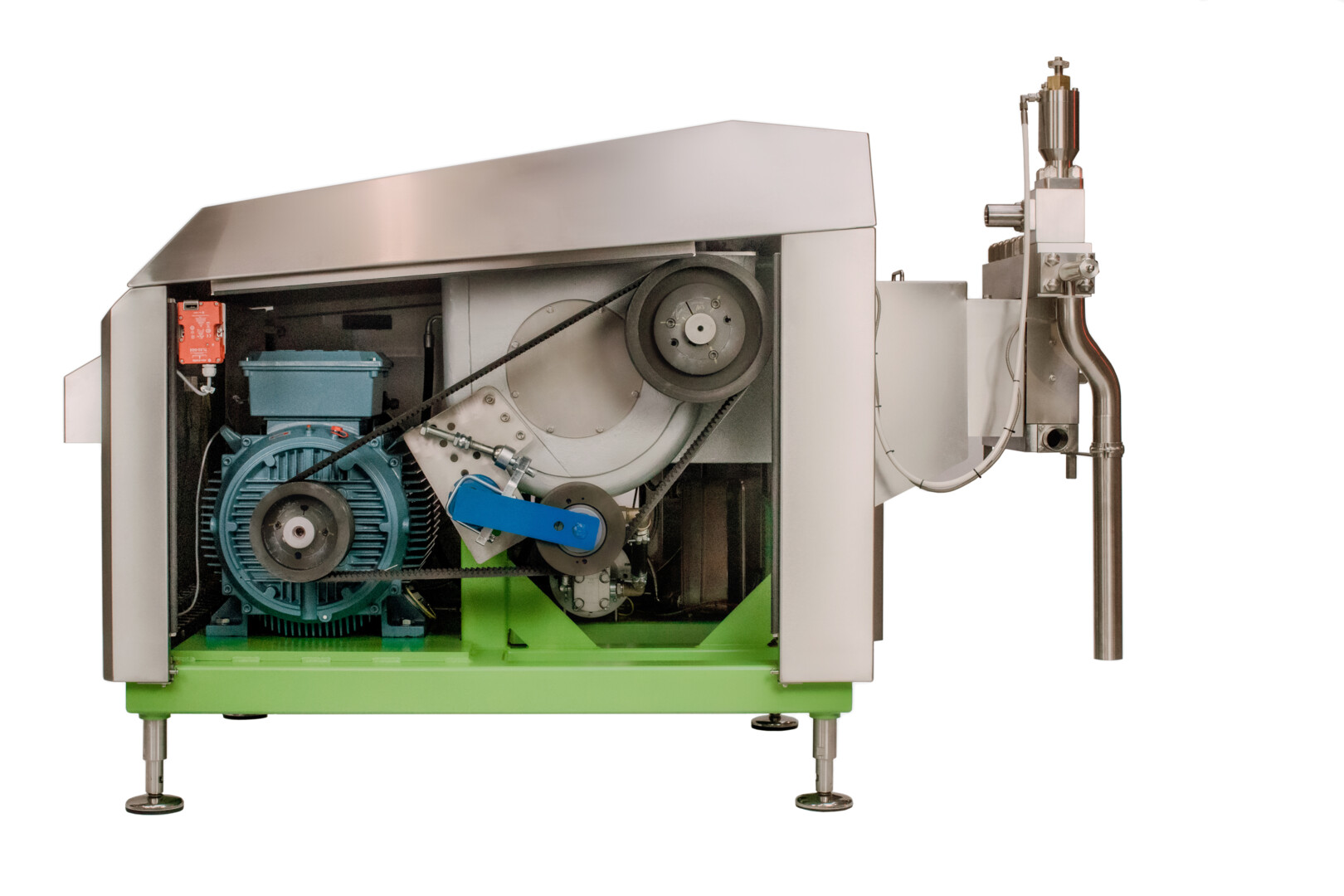

  • Internal gear and self-adjusting belt tightener
  • Oil cooling system with external plate heat exchanger and temperature transmitter
  • Oil filter including alarm

Other Standard Features

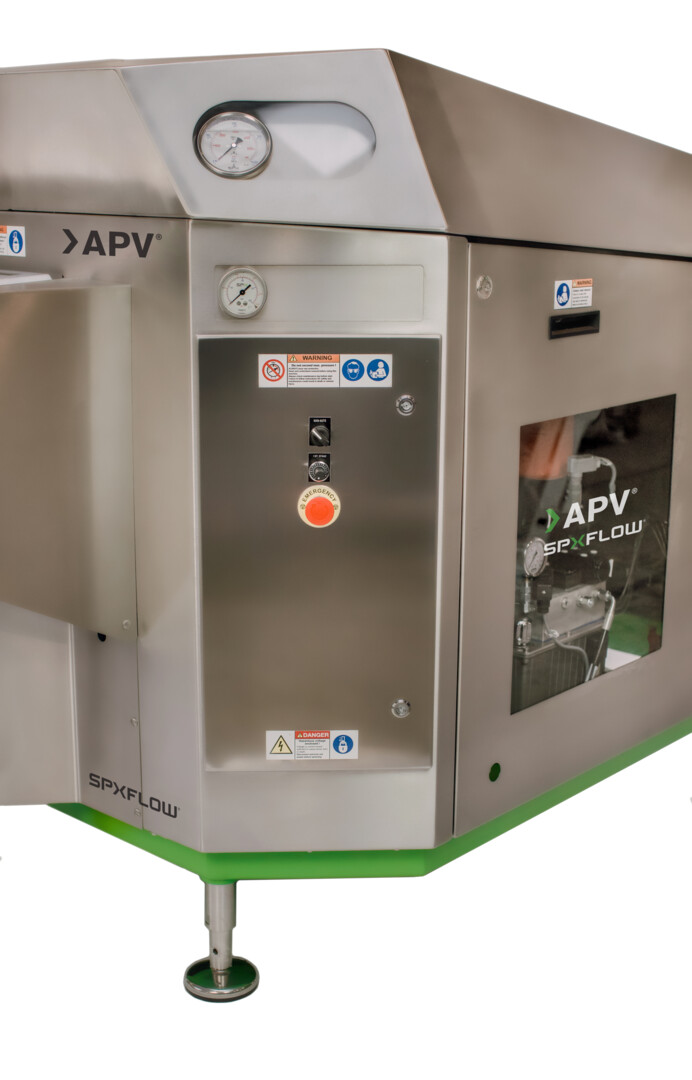

  • All equipment wired to stainless steel control cabinet
  • Emergency stop
  • Stainless steel sanitary cladding
  • Inspection window for key operating indicators
  • Set of tools
  • Set of packings



Key Applications

Field of application

  • Dairy
  • Food
  • Beverage
  • Industrial
  • Pharmaceutical
Specifications

Rannie model 57T / Three-Piece Valve Housing Poppet and Ball Valves

TYPE

US UNITS

METRIC UNITS

CAPACITY
GPH
PRESSURE
PSI
CAPACITY
LPH
PRESSURE
BAR
75.95 3,550 1,885 13,500 130
70.95 3,300 2,175 12,500 150
65.95 2,685 2,500 10,175 170
60.95 2,380 2,900 9,000 200
54.95
1,980 3,625 7,500 250
50.95 1,660 4,350 6,300 300
42.95 1,160 5,800 4,400 400
35.95 770 8,700 2,900 600
30.95 555 11,600 2,100 800
25.95 370 14,500 1,400 1,000
22.95 210 17,400 800 1,200
20.95 160 21,750 600 1,500





Gaulin model 57T / Mono-Block Valve Housing Poppet and Ball Valves

TYPE

US UNITS

METRIC UNITS

CAPACITY
GPH
PRESSURE
PSI
CAPACITY
LPH
PRESSURE
BAR
POPPET TYPE VALVES
1.5P 4,225 1,500 16,000 100
2.0P 3,175 2,000 12,000 140
2.5P 2,650 2,500 10,150 170
3.0P 2,250 3,000 8,500 210
3.6P 1,875 3,600 7,100 250
4.3P 1,590 4,300 6,000 300
5.8P 1,160 5,800 4,400 400
BALL TYPE VALVES
1.5B 3,950 1,500 14,950 100
2.0B 3,000 2,000 11,350 140
2.5B 2,640 2,500 10,000 170
3.0B 2,200 3,000 8,300 210
3.6B 1,780 3,600 6,750 250
4.3B 1,450 4,300 5,500 300
5.8B 1,025 5,800 3,900 400
8.7B 715 8,700 2,700 600
Dimensions



Dimensions

Length
in / mm

Width
in / mm

Height
in / mm

Weight (incl. motor)
lbs. / kg
Standard machine 89 / 2,260   56.5 / 1,435 56 / 1,425 5,725 / 2,600
Packed in crate 118 / 3,000   71 / 1,800 71 / 1,800 6,600 / 3,000
STANDARD INCL. LOW NOISE EXTENSION 111 / 2,820 64 / 1,630 66 / 1,680 6,850 / 3,100
Cubic measure of STANDARD crating: 9.72 m3
Options

Standard Options

  • Start/stop buttons
  • Alternative product connections e.g. tri-clamp, high-pressure outlet, dual inlet
  • Automatic hydraulic actuators and 4-20mA gauges for remote operation
  • Potentiometer-controlled electrical valves for hydraulic actuators
  • Plunger lubrication control package including flow switch and solenoid valve
  • Inlet pressure gauge with low pressure switch
  • Outlet pressure gauge or transmitter
  • Aseptic cylinder design
  • Sanitary pulsation dampener(s): inlet and outlet
  • Micro-Gap valve for increased efficiency and reduced energy consumption
  • Motor starter cabinet
  • Control cabinet with PLC or relay operation
  • Low-noise insulated extension for liquid end
  • Ceramic plungers
  • Choice of materials for cylinder block, pump valves, homogenzing valves, packings, etc.
  • Enhanced spare parts kit

Other Options in Request

  • Various enhanced liquid end block designs for special applications
  • Actuated pressure relief valve
  • Vibration sensors
  • Explosion-proof design
  • Electro-polished wetted parts
  • UFO – Oil Filtration system
  • Documentation packages for material traceability, certification and cGMP support
