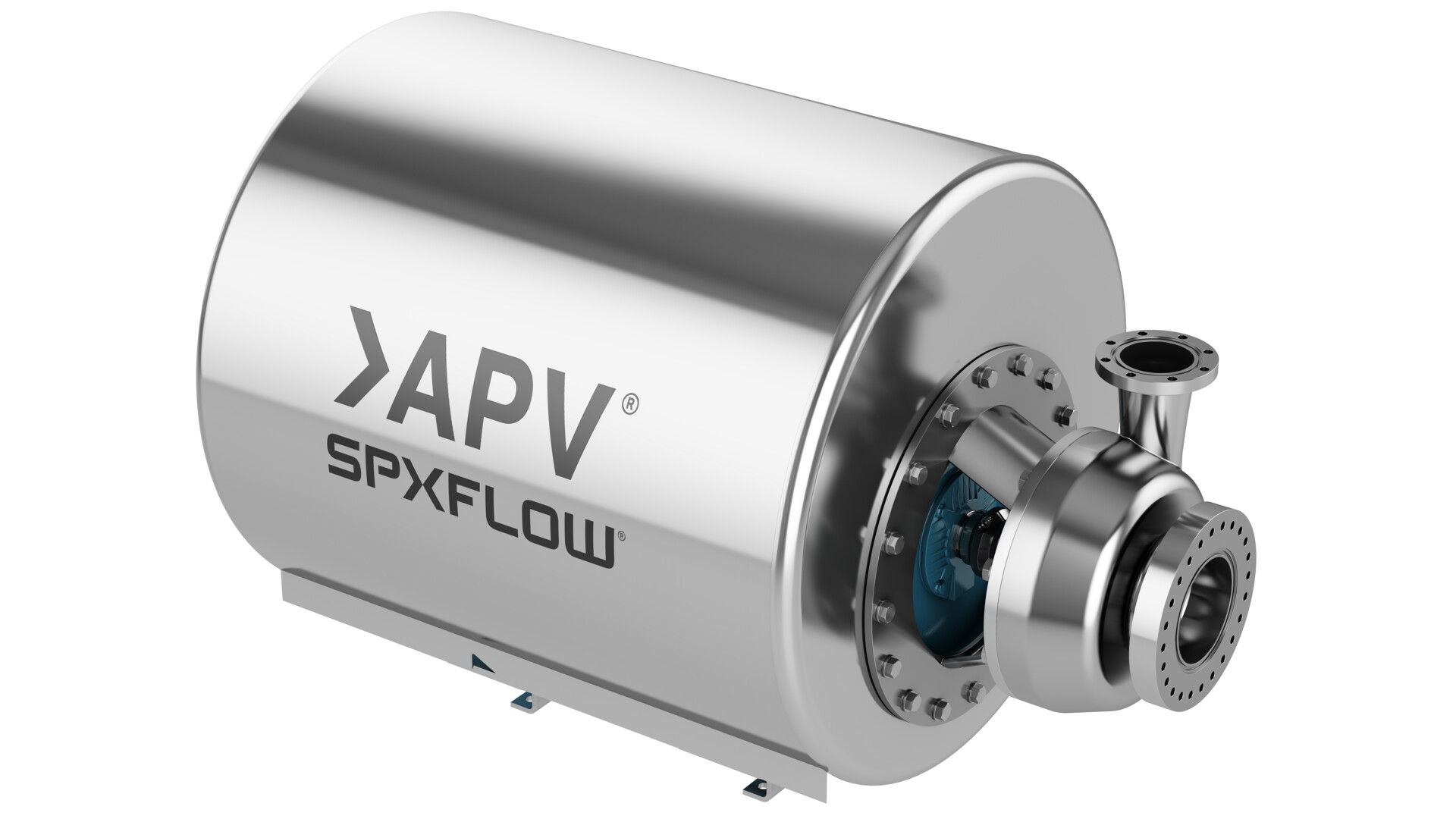

Whp+ Series - High Pressure Centrifugal Pumps

Product Type(s) : Centrifugal Pumps
Description :

The Whp+ is a high-pressure model of the W+ series.

WHERE TO BUY

FEATURES

The Whp+ series pumps are designed to withstand system pressures up to 870 psi (60 bar) such as those in certain reverse osmosis systems. The Whp+ pump's sturdy construction increases stability and dampens vibrations. Whp+ pumps are 3-A (optional) and EHEDG (European Hygienic Engineering & Design Group) certified.

Theory of Operation

The Whp+ is a high-pressure model of the W+ range. The pumps are designed to withstand system pressures up to 870 psi (60 bar) — such as those in certain reverse osmosis systems. The Whp+ pump’s sturdy construction increases stability and dampens vibrations The Wi+ is unique among inducer pumps, since the NPSH requirement is kept to a minimum throughout its entire operating range. The inducer further enables the Wi+ pump to handle viscous or gaseous products beyond the range of other centrifugal pumps.

The W+ pump series is based on a proven hydraulic design that promotes high operational efficiency and reduces noise and vibration levels while maintaining hygienic standards.

Low viscous fluids enter through the center inlet and flow around the impeller which turns at various speeds based on application requirements. The fluid then moves to the outer extents of the impeller vanes by centrifugal force and is directed through the outlet. As with other SPX FLOW centrifugal pumps, impeller and casing designs are optimized to perform more efficiently over a wide range of operating conditions. The casing and port are further designed to maximize performance under low NPSH conditions.

  • 1 - Unique spiral volute positioned in the back plate of the pump ensures a direct transfer of liquid from inlet to outlet
  • 2 - Advanced, high efficiency impeller design
  • 3 - Extended outlets smooth transition to process piping while reducing turbulence and preventing product build-up
  • 4 - Heavy walled pump casing insures that efficiency levels are maintained even at high pressure

DIMENSIONS & SPECIFICATIONS

Model Inlet Size Outlet Size Maximum Impeller Size Maximum Capacity (GPM) Maximum Head (FT) Maximum Discharge Pressure Maximum Operating Pressure
inch mm inch mm inch mm 1750 rpm 3500 rpm 1750 rpm 3500 rpm

260 psi (18 bar): W+10/8, W+22/20, W+30/80, W+35/55, W+35/35, W+110/130 200 psi (14 bar): W+25/210, W+30/120, W+50/8, W+55/35, W+55/60, W+60/110, W+65/350, W+70/40, W+80/80



Optional: Heavy duty clamping ring, increasing max. outlet pressure to

360 psi (25 bar): W+30/120, W+55/35, W+55/60, W+60/110, W+70/40)

290 psi (20 bar): W+80/80

203°F (95°C) as standard.

>203°F, please contact SPX FLOW

10/8 1.5 38 1 25 4.3 110 32 65 17 68
22/20 2 51 2 51 5.6 142 85 175 34 138
25/210 6 152 4 102 11.4 290 1610 - 134 -
30/80 4 102 3 76 76 76 315 650 43 171
30/120 4 102 3 76 6.9 175 410 810 47 190
35/35 2.5 65 2 51 6.9 175 142 280 49 198
35/55 3 3 2.5 65 7.1 180 230 465 50 200
50/8 1.5 38 1 1 7.9 200 42 85 68 275
55/35 2.5 65 1.5 38 8.3 210 140 245 76 302
55/60 3 76 2 51 8.7 220 305 615 78 315
60/110 4 102 3 76 9.1 230 475 975 90 359
65/350 6 152 4 102 10.2 260 1250 2300 100 400
70/40 2.5 65 1.5 38 9.4 240 110 235 98 390
80/80 3 76 2 51 10 255 310 625 112 450



Materials Port Connections Motor
Casing SS 316L S-Line connections are standard. Bevel seat, I-line, ISO and other standard fittings are available. TE FC or Washdown enclosures available. Energy-efficient, Chem-duty, Explosion Proof and stainless steel also available, as well as single phase or three phase, 60 or 50 Hertz.
Front Cover SS 316L
Impeller SS 316L
Air Screw and Recirculation Pipe SS 316L
Back Plate SS 316L
Shaft SS 316L
Clamp Rings SS 304
Adaptor SS 304
Support SS 304
Shaft Seal

Standard:
Carbon/Silicon Carbide

Optional:
Silicon Carbide/Silicon Carbide

Elastomers

Standard:
FKM



Optional:
EPDM

OPTIONS & PERFORMANCE

The W+ range consists of several standard models with pressure and flow capacities to 360 psi (25 bar) and to 2,300 GPM (522 m3/hr), and a number of special versions which may be specifically adapted to customer requirements. The W+ pumps are modular so that any pumping job can be done with a perfectly customized W+ pump.




SPX FLOW offers an on-line centrifugal pump selector tool, PUMP-FLO Connect.
Please log-in or create your account and correctly size an APV centrifugal pump.
