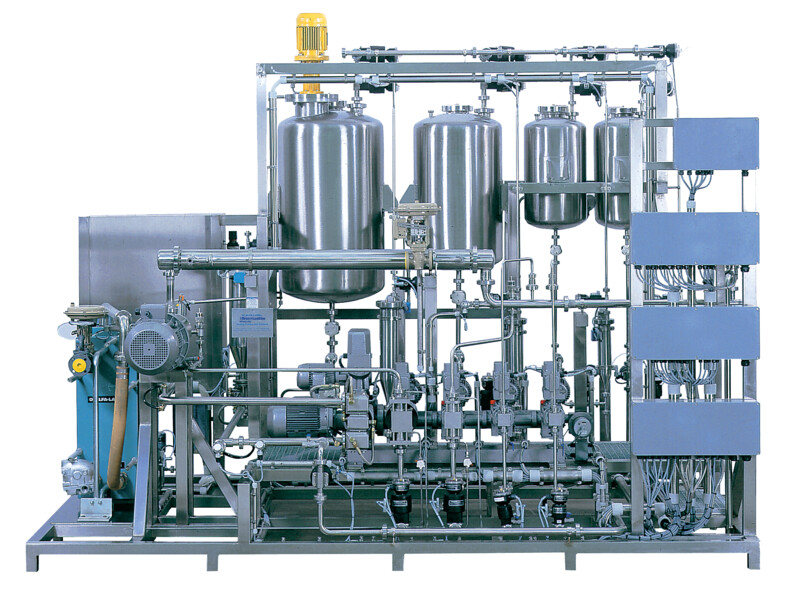

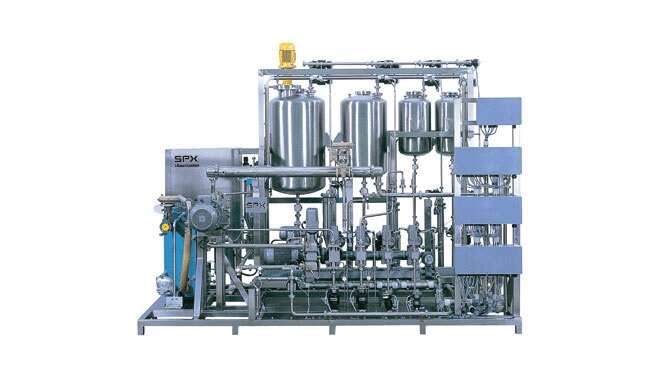

Continuous Production System for High-Quality Body Lotion

Integrated Metering and Mixing Solution

Utilizes Bran+Luebbe metering and mixing equipment, including a PENTAX emulsification mixer and tube heat exchanger for temperature control.

System Design Highlights

Computer-controlled setup features mass flow meters, LIV stream monitoring, and aseptic CIP-enabled architecture.

Operational Advantages

Performance and Quality

• Sterile, continuous production with direct filling line integration
• Eliminates air contamination in the final product
• Ensures consistent product quality throughout production
• Automatic cleaning and sterilization via CIP system

Core System Components

Equipment Overview

• 1 Type KH metering pump with electric delivery control and plunger head
• 4 Type P metering pumps with electric control and 4 plunger heads (1 heated)
• 1 PENTAX dynamic mixer
• 3 sanitary pipe heat exchangers
• 1 on-line mass flowmeter
• 1 on-line pH analyzer
• 1 on-line viscosity analyzer
• Automatic valves for flow regulation

Automation and Process Control

Smart Features

• Fully automatic control system
• Recipe handling with integrated reporting
• Real-time monitoring with feedback loops
• Automatic shutoff for ingredient depletion
