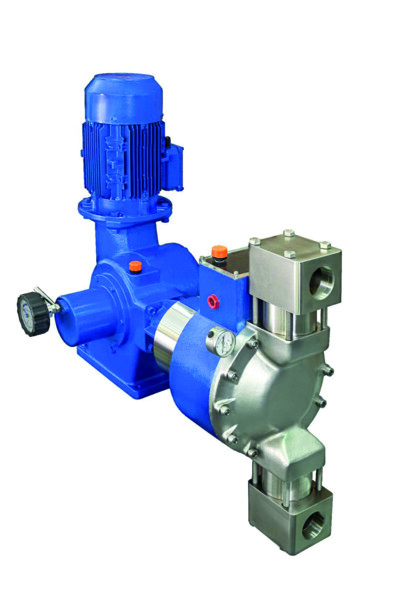

CEREX D Metering Pump (not available in USA and Europe)

Product Type:
Pumps / Metering Pumps

The CEREX D metering pump, its double diaphragm design, combined with built-in failure detection, delivers superior leak prevention performance compared to single diaphragm pumps with a similar price point. In addition, the CEREX D metering pump is constructed from standard, proven components held in stock - minimizing build time without compromising on quality.

Features

For a quick and affordable flow control solution that delivers on quality and reliability, the Bran+Luebbe CEREX D metering pump is an ideal choice. Its double diaphragm design, combined with built-in failure detection, delivers superior leak prevention performance compared to single diaphragm pumps with a similar price point. In addition, the CEREX D metering pump is constructed from standard, proven components held in stock - minimizing build time without compromising on quality.

• API 675 compliance
• Hydraulically actuated double PTFE diaphragm
• Diaphragm condition monitoring with pressure gauge
• Check valves double ball or cone depending on pump size
• Connections: NPT (metallic) or flange (plastic)
• Liquid-wetted material available as 316L type or plastic
• Manual linear stroke adjustment from 0 to 100%
• Motor suiting safe area
• Standard paint system





Key Applications
  • Industrial water and waste water treatment
  • Boiler feed water treatment
  • Chemicals dosing
  • Oil & Gas additives dosing
Specifications
Flow rate: between approx. 30 and 6000 l/h
Pressure: max 250 bar (3625 psi)
Fluid viscosity: max 1000 cP
Fluid temperatures:

-10 to +93 °C for metallic housing

-10 to +50 °C for plastic housing

Ambient temperatures: -10 to +50 °C
Motor:

1.5 to 5.5 kW, depending on load, frame size from 90 up to 132

Voltage as per local requirements

Options
  • Flange connections
  • Motor suiting hazardous area
  • Variable speed motors for turndown 1:5
  • Electronic stroke adjustment
