PowerMon Titrometer Online Analyzer

Product Type(s) : Online Analyzers
Description :

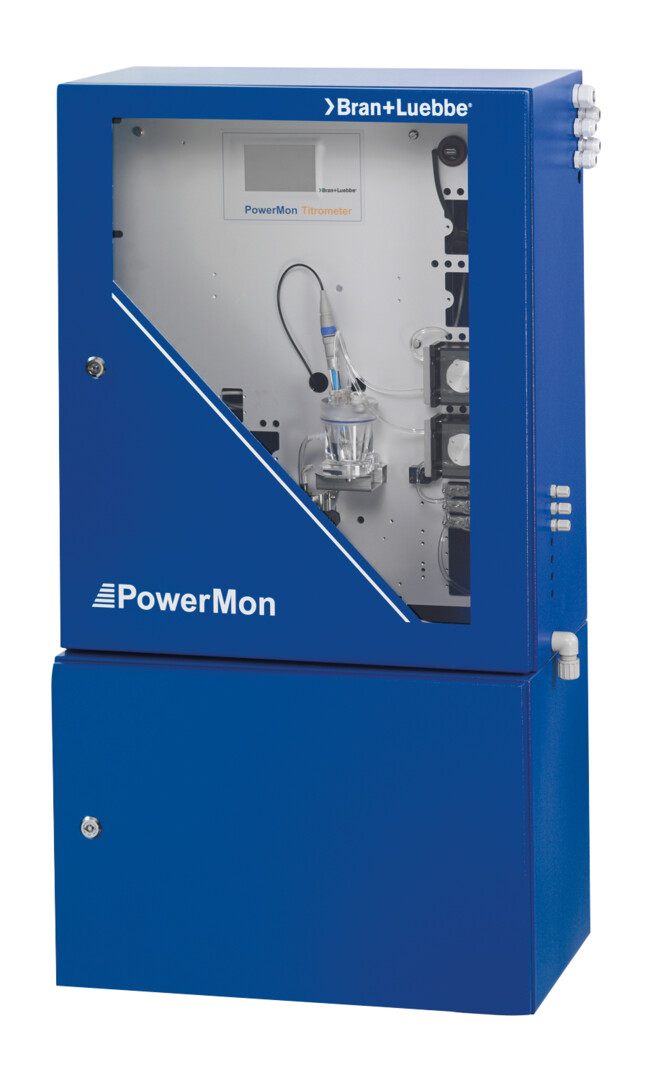

PowerMon Titrometer - Online Measuring Instrument

WHERE TO BUY

FEATURES

The PowerMon Titrometer is a versatile applicable online measuring instrument. It guarantees a permanent optimal water quality by the continuous supervision in the chemical industry, water and waste water treatment, in power stations and the paper industry.

Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors is possible!

For the individual sensors the PowerMon automatically takes over the functions of a transducer. It is also possible to set the separate results against each other.

A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation.

The compact and modular design of the PowerMon can contain up to six on-line measuring points in one device and enables a space-saving and economic operation.



DIMENSIONS & SPECIFICATIONS

Technical Data



Measuring methods cyclic, volumetric
Measuring cycle typ. 5-12 min.
Measuring range

m- and p-value - 0-0,1 to 0-100 mmol/l

Hardness - 0 - 0,025 to 0 - 50 mmol/l

Chloride - 0 - 10 to 0 - 100 mg/l

Further parameters and measuring ranges on request

Precision 3% or better
Drift typ. <0.5% MBE
Reagent Supply min. 3 weeks
Number of measuring points max. 6
Output signal
  • 0/4-20 mA
  • max. load 500 OHM
  • characteristic curve:
    • linear/logarithmic
    • galvanically isolated
Interfaces

USB / Ethernet
Option:
modem: analog, GSM, ISDN, UMTS Profibus DP, Modbus RTU

Relay contacts

4/12 potential free contacts free allocable
(e.g. alarm contact)

Digital inputs 4/12 e.g. activating and deactivating of measuring points, system control
Sample

pressure-free

Temperature: 15 - 45°C (288 - 308 K)

Flow: 3 – 10 l/h free from suspended matter and oil

Connection: tube, flexible (ID 1.5 - 3 mm)

Drain pressure-free tube, flexible (ID 10 mm)
Power supply

85…264 VAC at 47…63 Hz

Power consumption: max. 50 VA
Environmental temperature 15 - 35°C (288 - 308 K)
Installation wall-mounted
Protection class (EN 60529)
  • IP 65 ( electronics )
  • IP 54 ( with housing )
  • IP 21 ( with jacket )
Weight

housing with reagent cabinet

53 - 60 kg without reagents

Dimensions

(HEIGHT X WIDTH X DEPTH)

housing: 700x600x320 mm

with reagent cabinet: 1100x600x354 mm
