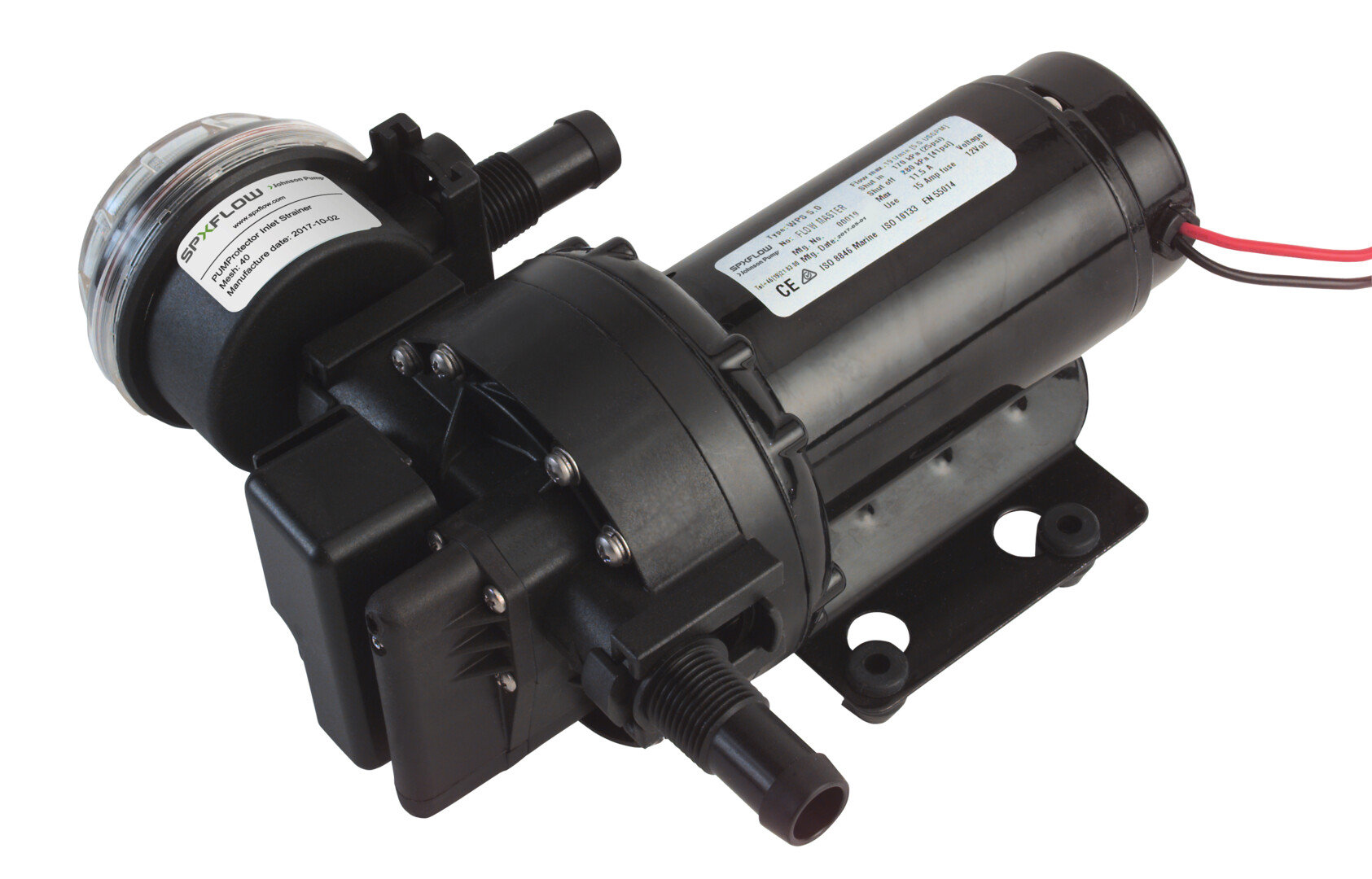

Aqua Jet Variable Flow Pump

The whisper quiet self-priming Aqua Jet Flow Master WPS 5.0 pump incorporates state-of-the-art electronics to automatically control pump speed. The digital controller adjusts water flow as the demand is increased and decreased while maintaining a very smooth flow. The unique variable flow feature of the Aqua Jet Flow Master WPS 5.0 pump makes it a smart choice for better flow, lower noise and less amp draw.

Limited 3 Year Warranty
Maintains a very smooth flow as water demand is increased and decreased
Five-chamber construction
Self-priming
Easy, low cost maintenance
Quick-connect hose or threaded connectors available
Pressure switch standard
Long service life
Self-priming
Operates in fresh or sea water
PUMProtector Inlet Strainer included
Recommended to install with an accumulator tank

AQUA JET Flow Master WPS 5.0

Technical Data

Part No.	Description	Capacity	Pressure Cut Off*	Voltage	Fuse Size	Connection
10-13329-03	Aqua Jet Flow Master WPS 5.0 12V	19 l/min - 5 GPM	3.5 bar, 50 psi	12 V	15 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
10-13329-103	Aqua Jet Flow Master WPS 5.0 12V	19 l/min - 5 GPM	3.5 bar, 50 psi	12 V	15 A	⅜" NPT / hose ½"; ½" NPT / hose ¾"; ½" NPT ¾" hose ½ CTS
10-13329-04	Aqua Jet Flow Master WPS 5.0 24V	19 l/min - 5 GPM	3.5 bar, 50 psi	24 V	8 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
10-13329-104	Aqua Jet Flow Master WPS 5.0 24V	19 l/min - 5 GPM	3.5 bar, 50 psi	24 V	8 A	⅜" NPT / hose ½"; ½" NPT / hose ¾"; ½" NPT ¾" hose ½ CTS

* Cut off pressure 2.1 bar/30 psi and 1.4 bar/20 psi available on request.

Dimensions

Part Number	Length	Width	Height	Weight
10-13329-03 10-13329-103 10-13329-04 10-13329-104	239 mm/9.4"	209 mm/8.22"	113 mm/4.49"	2 kg/4.5 lbs

Key Applications

Typical Water Pressure System

1.	Water tank	7.	Accumulator tank
2.	PUMProtector inlet strainer	8.	Water heater
3.	Aqua Jet Water Pressure Pump	9.	ON / OFF bipolar switch
4.	Battery	10.	Motor
5.	Fuse	11.	Check valve
6.	Switch	12.	Shut-off valve

For minimizing the number of starts and stops - and thereby reducing wear and tear on the pump when only small amounts of water are drawn off - it is recommended to install the WPS pumps together with and accumulator tank.

Always use a PUMProtector Inlet Strainer before the pump intake.

Material Specifications

Motor	WPS 5.0 – 150 W, 12/24V DC (with built-in thermal protection)
Body	Nylon/Polypropylene
Valves	Santoprene/EPDM
Diaphragm	Santoprene
