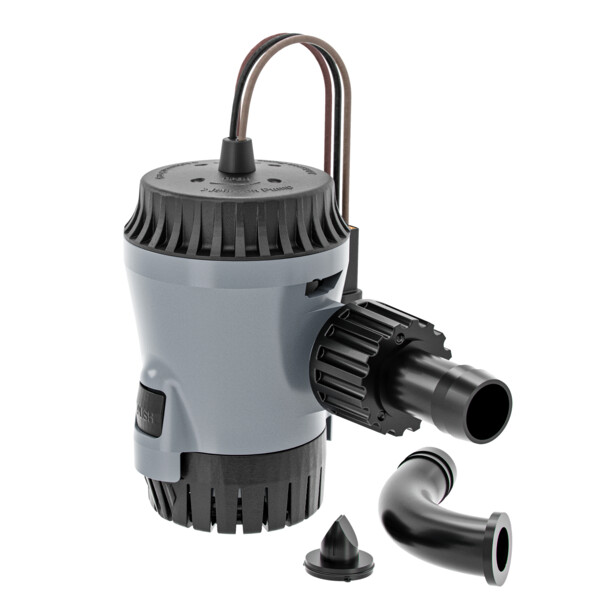

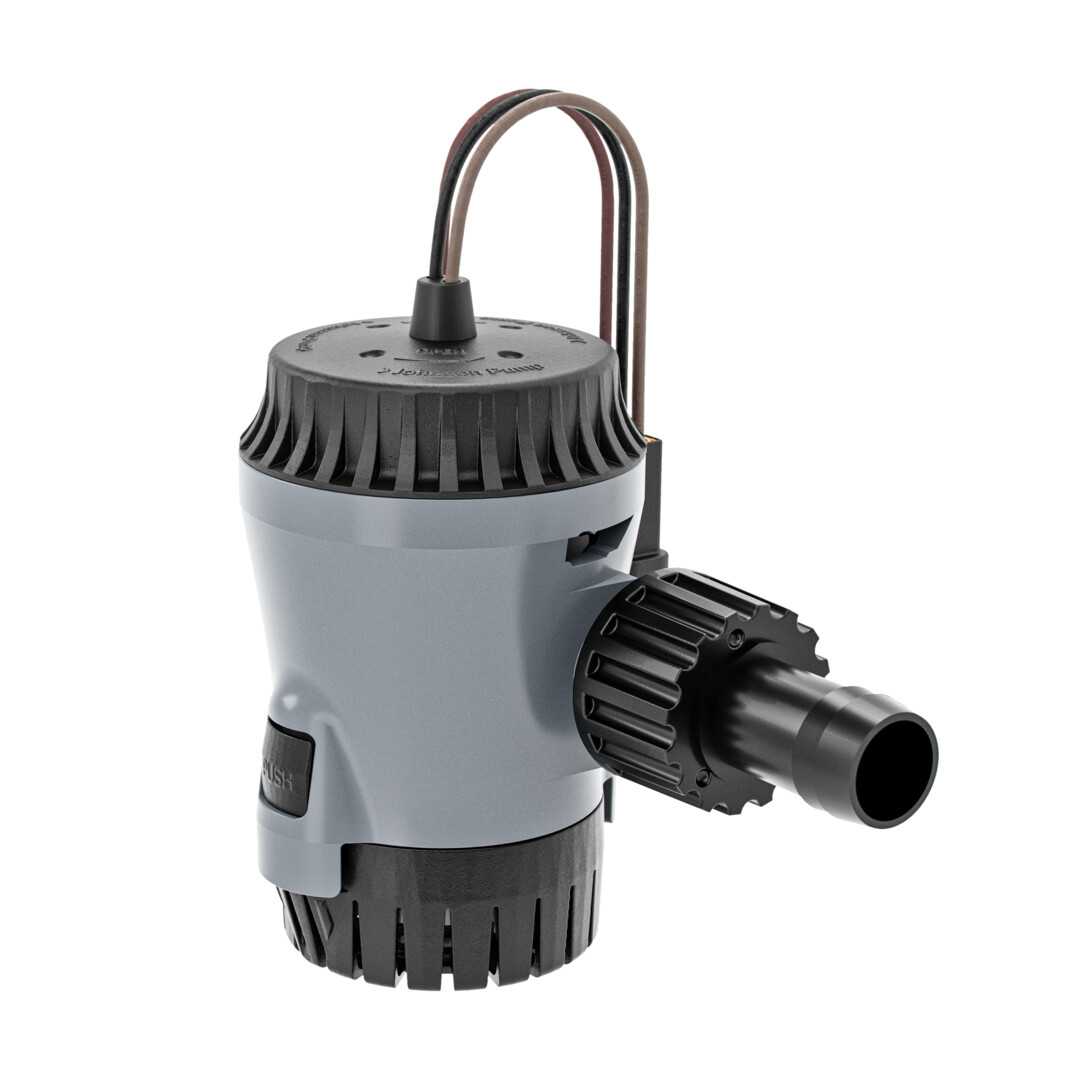

Aqua Void Auto™ - Automatic Cartridge Bilge Pumps

Product Type(s) : Bilge Pumps
Description :

The Aqua Void Auto Cartridge Bilge Pump is equipped with an advanced auto-sensing motor cartridge that detects the presence of water within the bilge using resistance. The pump automatically activates when water is detected, eliminating the need for an external switch and reducing the overall footprint. This innovation ensures optimal functionality and reliable performance, making it an essential component for automated bilge water management.

WHERE TO BUY

FEATURES

Aqua Void Auto is now available with an auto-sensing motor cartridge that detects the presence of water using resistance. The pump automatically activates when water is detected, eliminating the need for an external switch. Keep everything else already in the features.

Experience the Industry-First Quick-Change Motor Connection

Our groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Take Control of Your Boating Experience with Unparalleled Convenience

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enjoy Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Trust in Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering. Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance your boating experience. Get the Aqua Void today!

  • Limited 3-Year Warranty
  • Capacities 500 GPH and 800 GPH
  • Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design
  • Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
  • Water-cooled motor for long service intervals
  • Compact, all-in-one motor/impeller unit with stainless steel (316) shaft
  • No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
  • Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • Include both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
  • Meets the international standard, ISO 8849 marine
Theory of Operation

The Aqua Void Auto Bilge Pump is engineered with an enhanced cartridge motor featuring a new high-flow impeller, delivering powerful and efficient water removal capabilities. This innovative design introduces the industry's first quick-change motor connection, allowing for seamless cartridge motor replacements and capacity upgrades.

Central to its operation is the advanced auto-sensing motor cartridge, which utilizes resistance to detect the presence of water within the bilge. This auto-sensing technology eliminates the need for an external switch, significantly reducing the pump's overall footprint and simplifying installation.

The Aqua Void Auto is characterized by its uniform pump housing across all Aqua Void models, with the key differentiator being the integration of the auto-sensing motor cartridge. The pump operates through an automated cycle, where every 2.5 minutes, the impeller briefly spins for 1 second. This brief rotation is designed to sense the presence of water. If water is detected, the pump transitions into full operation mode, efficiently removing the water until the bilge is dry.

When no water is detected, the pump ceases its operation and repeats the sensing cycle at the next 2.5-minute interval. This automated process ensures continuous monitoring and efficient water management, providing reliable performance and making the Aqua Void Auto Bilge Pump an essential solution for automated bilge water management.

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

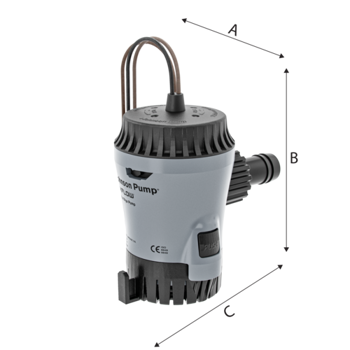

Dimensions

Width (A)  2.75" (70mm)
Height (B)  4.69" (119mm)
Length (C)  5.24" (133mm)
Weight 11.2oz (0,32kg) 500 GPH
12.6oz (0,36kg) 800 GPH

Material Specifications

Pump body: ABS
Shaft seal: Nitrile Rubber
Shaft: 316 Stainless Steel



Technical Data

Part Number Pump Size Description Capacity Straight (12v) Voltage Amp Fuse Hose Conn. Wire Size
GPH I/min
10-13626-01 500 GPH Aqua Void 600 38 12V 2.7A 3.5A 3/4" 16 GA, TAC
10-13635-01 Aqua Void Automatic Ultima Combo
10-13637-01 Aqua Void Automatic - Electro-Magnetic Combo
10-13626-05 800 GPH Aqua Void 795 50 12V 3.7A 5A 3/4" 16 GA, TAC
10-13636-01 Aqua Void Automatic-Ultima Combo
10-13637-02 Aqua Void Automatic-Electro-Magnetic Combo
