Aqua Void Electro-Magnetic Combo – Automatic Cartridge Bilge Pumps

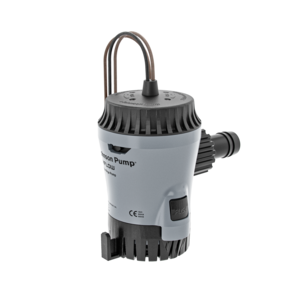

Aqua Void™ Cartridge Bilge Pump – Automatic Electromagnetic Combo

With its industry-first quick-change motor connection and new reinforced click-in basket, it simplifies cleaning and installation and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.

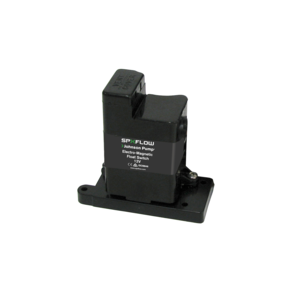

Combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump.

Industry-First Quick-Change Motor Connection

Our groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Unparalleled Convenience in Tight Spaces

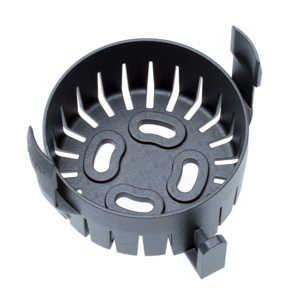

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Key Features

Limited 3-Year Warranty
Capacities: 500 GPH and 800 GPH
Pre-configured with an electro-magnetic float switch for automatic operation
High Flow Impeller Design for heightened efficiency
Quick-Change Motor Connection with harness – no wire cutting or splicing required
Water-cooled motor for long service intervals

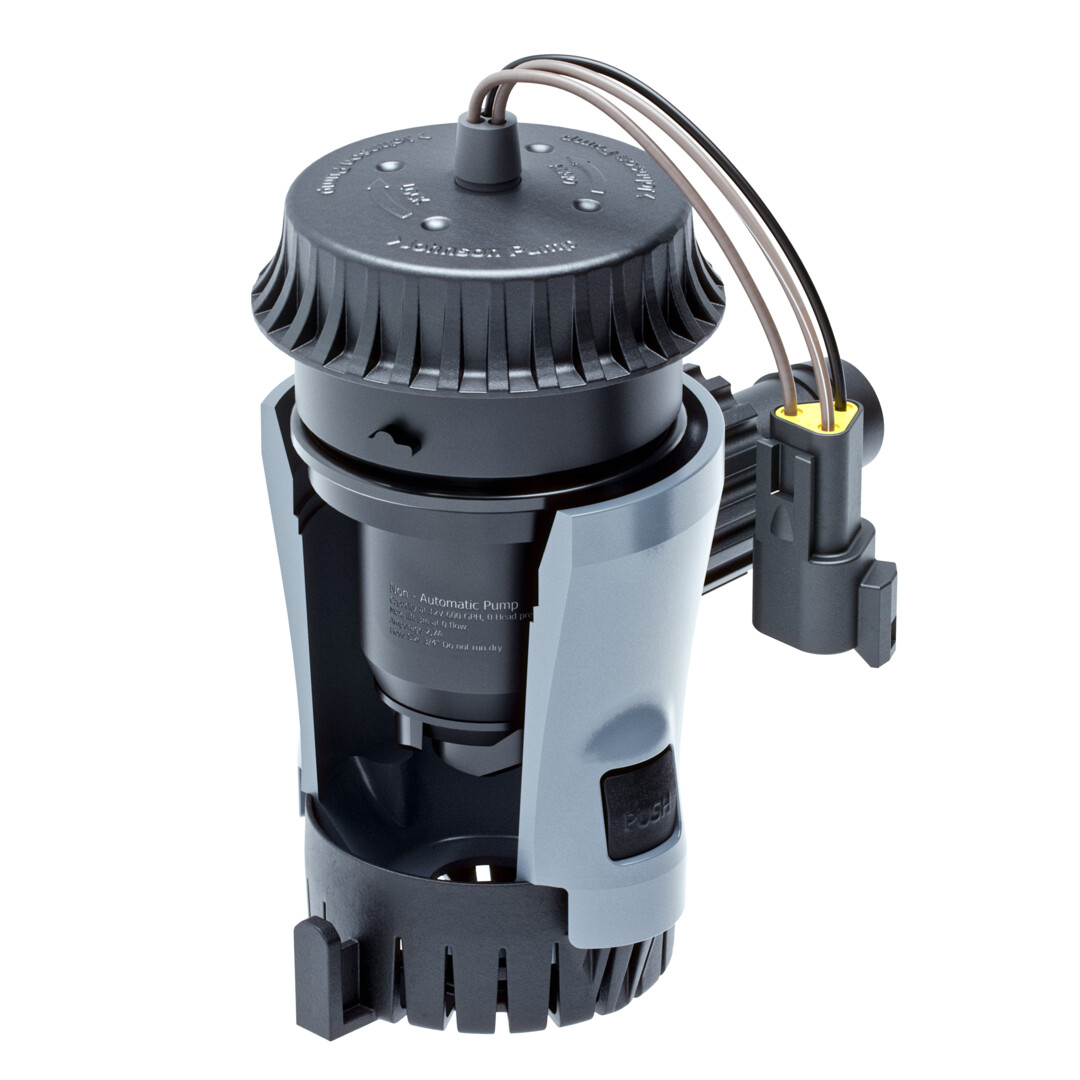

Compact, all-in-one motor/impeller unit with stainless steel (316) shaft
No tools needed for maintenance; pump casing remains attached to boat and hoses
Easy-to-install Dura-Port discharge ports prevent stress cracking
Includes straight and 90° smooth elbow Dura-Port fittings and removable check valve
Meets ISO 8849 marine standard
Molded T-Slot for easy switch installation

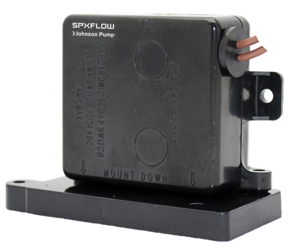

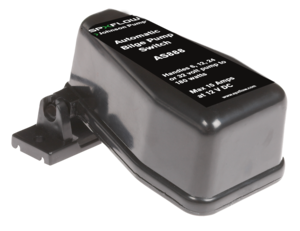

Compatible with AS888 automatic switch, electronic float switch, or Ultima Switch

Material Specifications

Pump body:	ABS
Shaft seal:	Nitrile Rubber
Shaft:	316 Stainless Steel

Technical Data

Part Number	Pump Size	Description	Capacity Straight (12v)		Voltage	Amp	Fuse	Hose Conn.	Wire Size
			GPH	I/min
10-13626-01	500 GPH	Aqua Void	600	38	12V	2.7A	3.5A	3/4"	16 GA, TAC
10-13635-01		Aqua Void Automatic Ultima Combo
10-13637-01		Aqua Void Automatic - Electro-Magnetic Combo
10-13626-05	800 GPH	Aqua Void	795	50	12V	3.7A	5A	3/4"	16 GA, TAC
10-13636-01		Aqua Void Automatic-Ultima Combo
10-13637-02		Aqua Void Automatic-Electro-Magnetic Combo

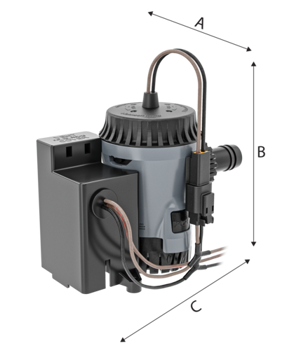

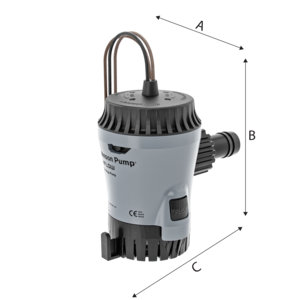

Dimensions

Width (A)	3.88" (99mm)
Height (B)	4.69" (120mm)
Length (C)	6.17" (157mm)
Weight	15.9oz (0,45kg) 500 GPH
Weight	17.3oz (0,49kg) 800 GPH
