AquaT™ Manual Super Compact Marine Toilets
Incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left-hand or right-hand use. Available in three models: Super Compact, Compact and Comfort. AquaT manually operated marine toilets can be installed in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal.
AquaT™ Manual Super Compact Marine Toilets
Overview
Priced competitively, the fine finish and design of these toilets is remarkable. Made from white vitreous porcelain, with corrosion resistant parts, the AquaT marine toilet is quiet, robust and easy to clean. It is probably fair to think of most toilets as commonplace products, but one look at the features and you are sure to see that the AquaT is far from ordinary. Quiet, hygienic and reliable, the AquaT marine toilet is perfect for almost any marine toilet room. Available in three models:

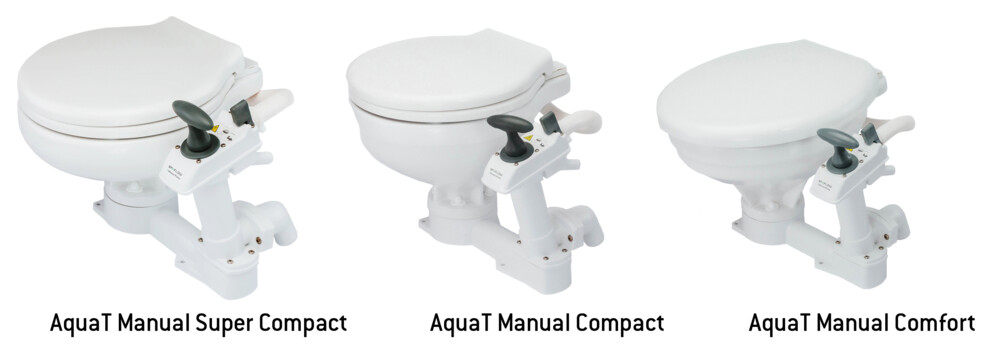

Available Models
- Comfort bowl – larger comfortable oval seat
- Compact bowl – round seat for limited installation space
- Super Compact bowl – smaller and lighter, ideal for tight spaces
Marine Toilet Features
Design and Build
- Made from white vitreous porcelain with corrosion-resistant parts
- Flexible hole pattern on the base for easy substitution
- Smooth design for easy cleaning
- Ergonomic handle
- Double sealed base plug for winter drain and easy cleaning access
Pump and Flushing System
- Reversible pump mounting for left-hand operation
- Self-priming, double acting piston pump
- Piston rod guide in brass for increased service life
- Strong swirl action for efficient flushing
- Spring-assisted top valve closure for easier priming
Waste Management and Installation
- Constant 38mm (1 1/2") bore waste path minimizes blockages
- Double check-valves at full 38mm (1 1/2") bore prevent back flow
- Multi-angle outlet for various installations
- Accessible mounting points for faster installation
- Standard fastenings, logically located – no need for special tools
Warranty
- Limited 2 Year Warranty
The waste can be discharged either overboard (please abide by national or local restrictions), or into a treatment system or into an on-boar holding tank.
Note: SPX FLOW Johnson Pump manual toilets are designed specifically for marine use. Consult your SPX FLOW Johnson Pump retailer for advice about possible non-marine applications.

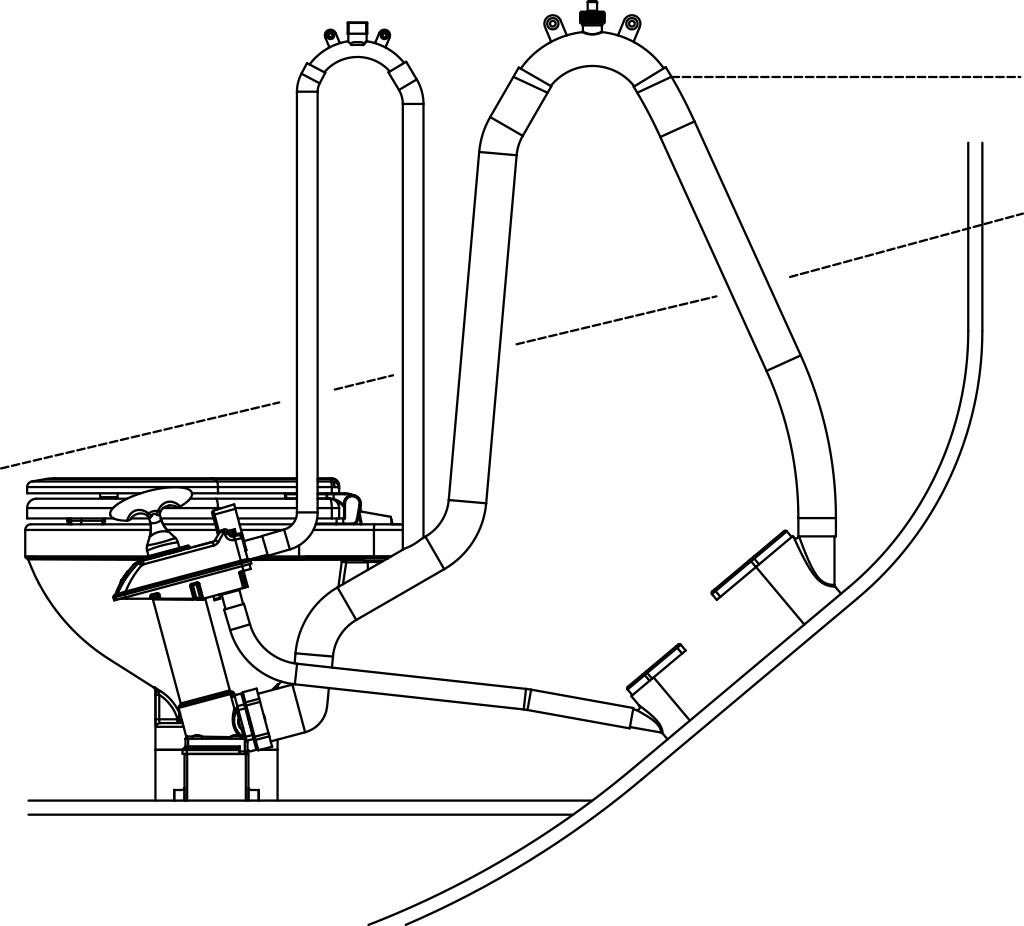

Toilet mounted below the waterline and discharging overboard.

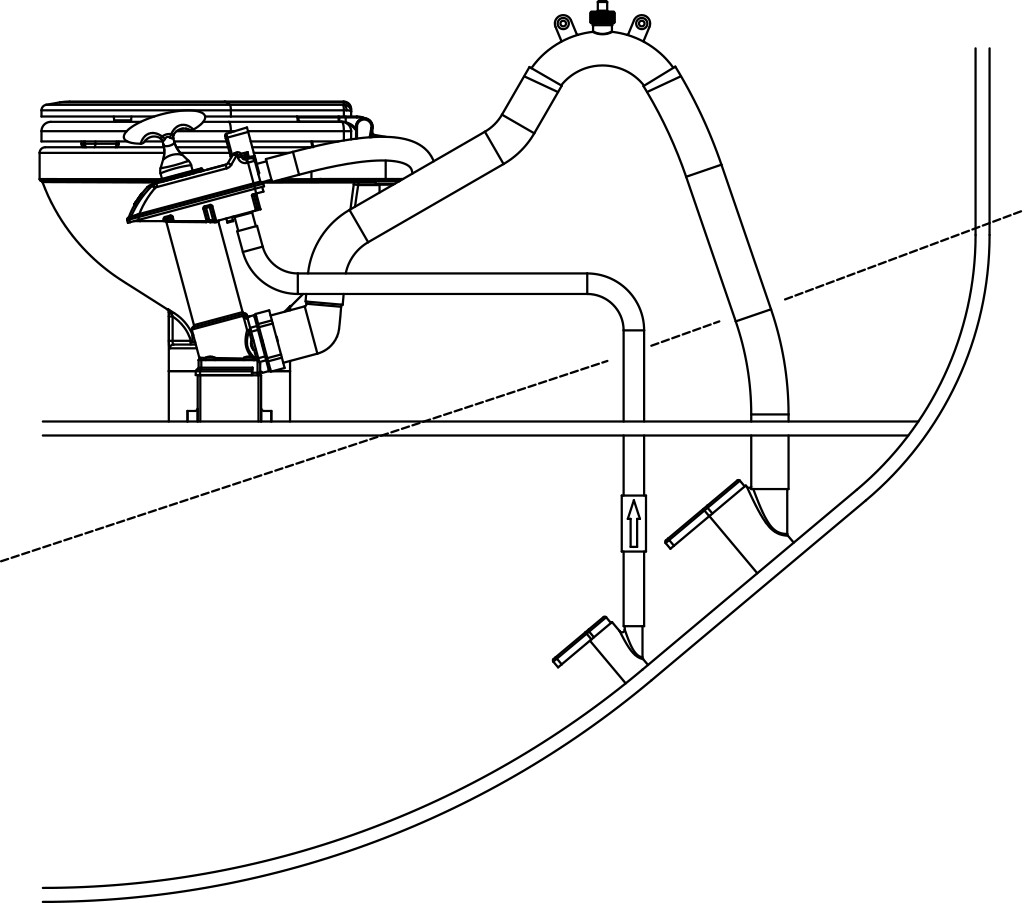

Toilet mounted above the waterline and discharging overboard.

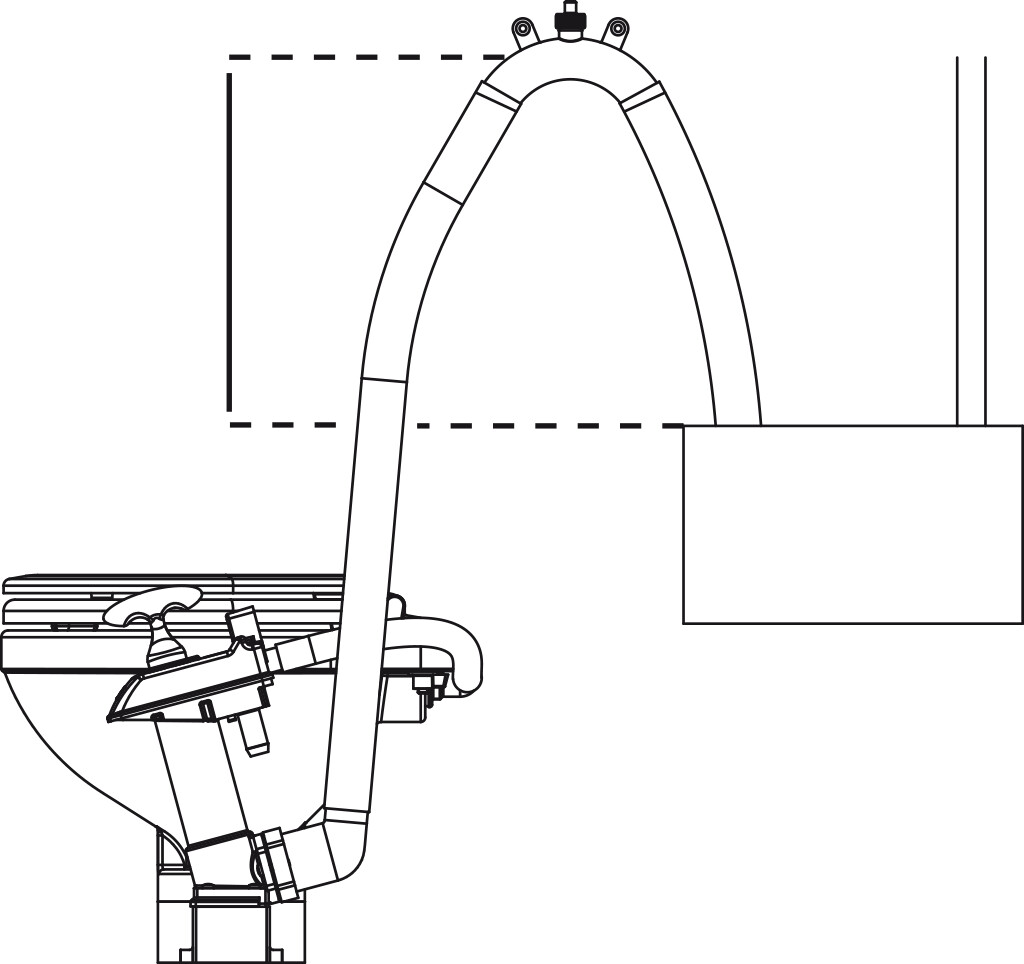

Toilet waste discharging into holding tank, discharging elbow below top of the holding tank at any time.

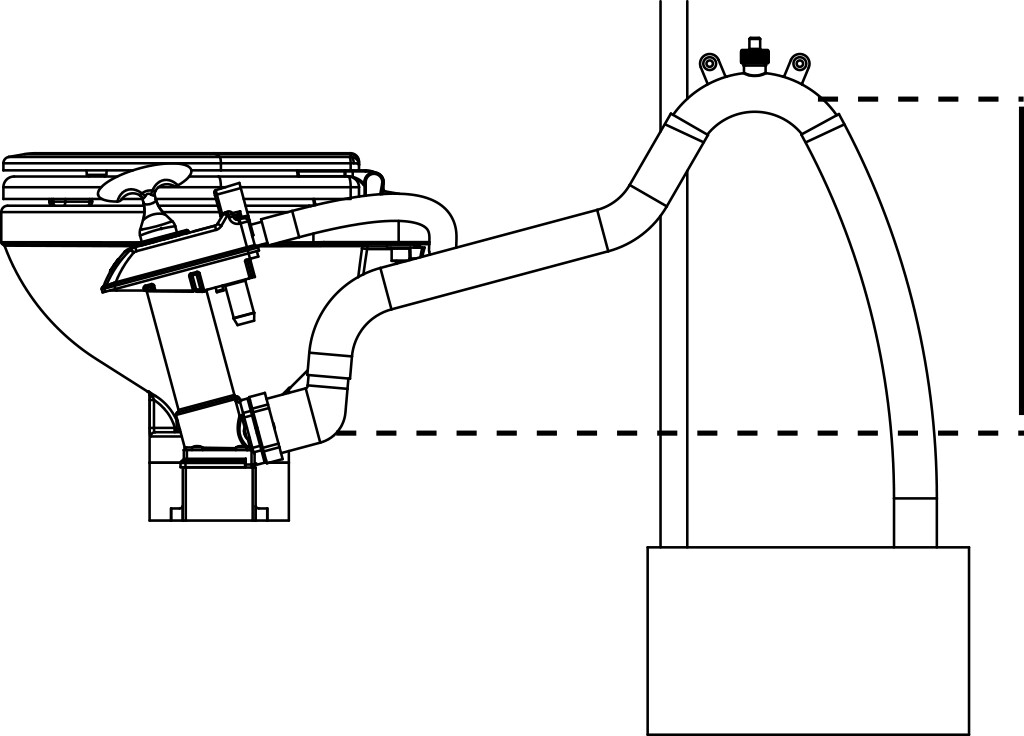

Toilet waste discharging into holding tank, discharging elbow always above top of the holding tank.
Dimensions
| Part. nr. | Description | Net weight | A | B | C | D | E | F | mm/ inch | |
| 80-47625-01 | AquaT Toilet Manual Super Compact | 8.5 | kg | 340 | 605 | 300 | 400 | 215 | 460 | mm |
| 19 | lbs | 13.39 | 23.82 | 11.81 | 15.75 | 8.46 | 18.11 | inch | ||
| 80-47229-01 | AquaT Toilet Manual Compact | 8.3 | kg | 340 | 650 | 350 | 400 | 215 | 455 | mm |
| 18 | lbs | 13.39 | 25.59 | 13.78 | 15.75 | 8.46 | 17.91 | inch | ||
| 80-47230-01 | AquaT Toilet Manual Comfort | 11 | kg | 365 | 725 | 330 | 470 | 250 | 465 | mm |
| 24 | lbs | 14.37 | 28.54 | 12.99 | 18.50 | 9.84 | 18.31 | inch | ||
