AquaT™ Silent Electric Comfort Marine Toilets

Product Type(s) : Toilets
Description :

Designed for silent flush and built-in pump for disposal. Centrifugal pump with macerator function and a well-proven Aqua Jet diaphragm pump. Controlled with a three-way control panel. Available in 12V/24V and two models: Compact and Comfort. AquaT Silent Electric marine toilets can be installed in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal.

WHERE TO BUY

FEATURES

Priced competitively, the fine finish and design of these toilets is remarkable. Made from white vitreous porcelain, with corrosion resistant parts, the AquaT marine toilet is quiet, robust and easy to clean. It is probably fair to think of most toilets as commonplace products, but one look at the features and you are sure to see that the AquaT is far from ordinary. Quiet, hygienic and reliable, the AquaT marine toilet is perfect for almost any marine toilet room. Available in two models:

  • Comfort bowl with a larger comfortable oval seat
  • Compact bowl with a round seat - when installation space is limited



Marine Toilet Features

  • Limited 2 Year Warranty
  • Silent flush and discharge operation
  • The included 3-way panel controls the rinse and the discharge, by two buttons.
    • Button 1, One function, discharge and rinse.
    • Button 2, Two functions, Rinse toilet or discharge toilet
  • Flexible hole pattern on the base, for easy substitution with the most common toilets on the market
  • Smooth design for easy cleaning
  • Multi-angle outlet for various installations
  • Accessible mounting points for fast installation
  • Standard fastenings, logic located, no need for special tools
  • High capacity discharge pump
  • Included rinse pump, with filter. For raw or fresh water. Do not connect the toilets rinse pump to the boats fresh/ drinking water system
Key Applications

The waste can be discharged either overboard (please abide by national or local restrictions), or into a treatment system or into an on-boar holding tank.

Note: SPX FLOW Johnson Pump Silent Electric toilets are designed specifically for marine use. Consult your SPX FLOW Johnson Pump retailer for advice about possible non-marine applications.









Toilet mounted below the waterline and discharging overboard.









Toilet mounted above the waterline and discharging overboard.









Toilet waste discharging into holding tank, discharging elbow below top of the holding tank at any time.









Toilet waste discharging into holding tank, discharging elbow always above top of the holding tank.

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

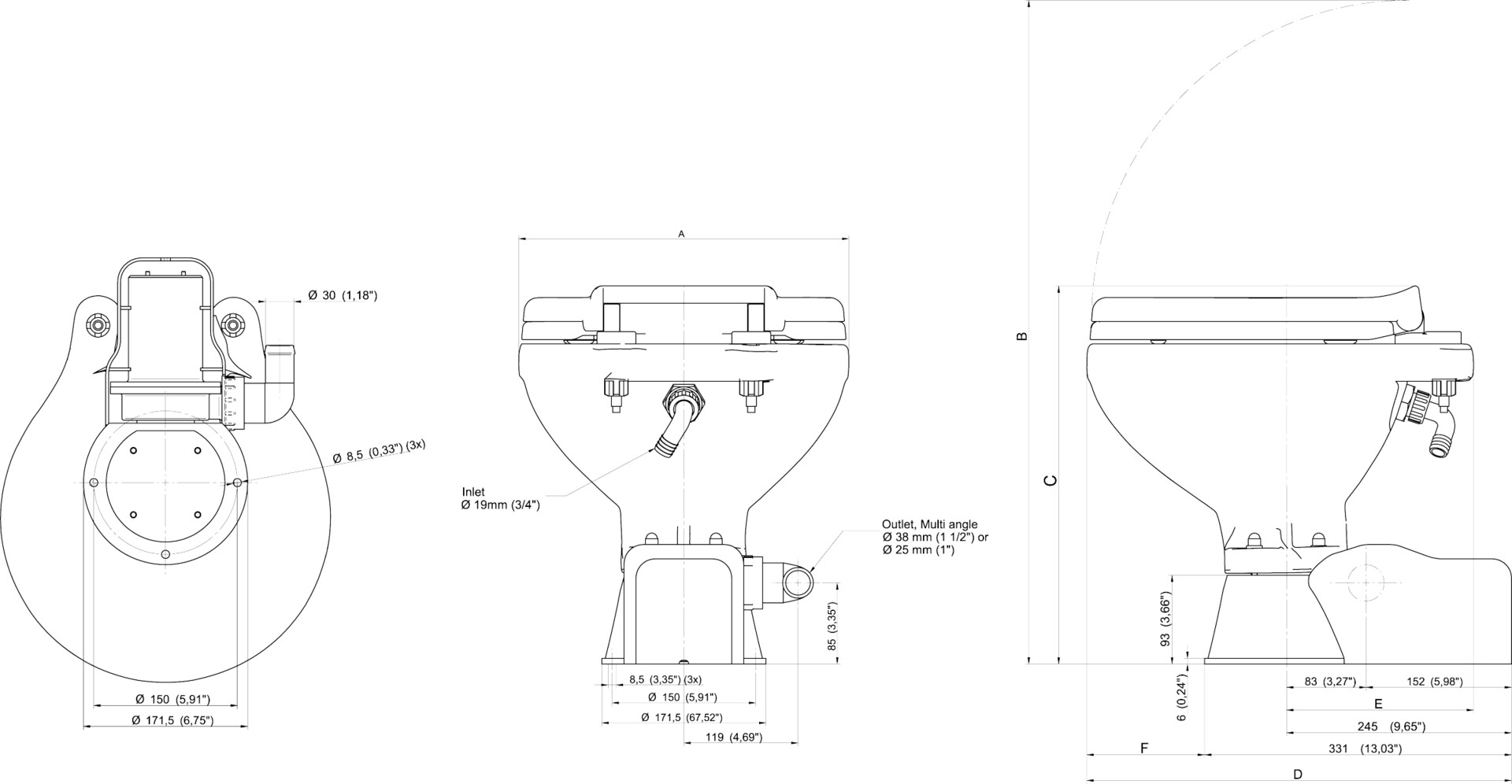

Dimensions

Part. nr. Description Weight A B C D E F mm/ inch
80-47231-01 AquaT Silent Electric Compact, 12V 9.2 kg 340 695 395 441 215 110 mm
80-47231-02 AquaT Silent Electric Compact, 24V 20 lbs 13.39 27.36 1.55 17.36 8.46 4.33 inch
80-47232-01 AquaT Silent Electric Comfort, 12V 10.8 kg 365 770 375 456 260 125 mm
80-47232-02 AquaT Silent Electric Comfort, 24V 24 lbs 14.37 30.31 14.76 17.95 1.24 4.92 inch



Material Specifications

  • Soft closing, durable and hygienic plastic seats made of polypropylene
  • Hygienic white ceramic bowl for ease of cleaning
  • Pump and base molded in ABS or polypropylene, stainless steel fastenings, brass weights and neoprene seals and gaskets



Part numbers

Part. nr. Description
80-47231-01 AquaT Silent Electric Compact, 12V
80-47231-02 AquaT Silent Electric Compact, 24V
80-47232-01 AquaT Silent Electric Comfort, 12V
80-47232-02 AquaT Silent Electric Comfort, 24V



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

OPTIONS & PERFORMANCE

  • Self priming, dry, height 2 meters (6,5ft)
  • Discharge height 3 meters (9ft)

VIDEOS

Marine Toilets

Viking Series Diaphragm Waste Water Pumps

Downloads

Spare Parts

Part No. Description 81-47241-04 Soft Close Plastic Seat Compact Toilet 81-47241-05 Soft Close Plastic Seat Comfort Toilet 81-47242-01 Gasket Kit (all gaskets for Manual) 81-47246-01 Intake elbow - inlet pipe complete (Manual and Silent Electric) 81-47246-02 Outlet elbow - outlet pipe complete (Manual and Silent Electric) 81-47247-01 Base group (Silent Electric) 81-47248-01 Motor group 12V (Silent Electric) 81-47248-02 Motor group 24V (Silent Electric) 81-47273-01 Outlet elbow (Silent Electric) 81-47274-01 Bowl gasket (Silent Electric) 81-47519 Impeller kit (Silent Electric) 81-47640-01 Intake elbow Flush 90° Flexible
