AquaT™ Standard Electric Compact Marine Toilets
Equipped with combined 12V or 24V pump for disposal and flushing. Centrifugal pump with macerator function for disposal and an impeller pump for filling water. Available in three models: Super Compact, Compact and Comfort. AquaT Standard Electric marine toilets can be installed in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal.
Overview
Priced competitively, the fine finish and design of these toilets is remarkable. Made from white vitreous porcelain, with corrosion resistant parts, the AquaT marine toilet is quiet, robust and easy to clean. It is probably fair to think of most toilets as commonplace products, but one look at the features and you are sure to see that the AquaT is far from ordinary. Quiet, hygienic and reliable, the AquaT marine toilet is perfect for almost any marine toilet room. Available in three models:

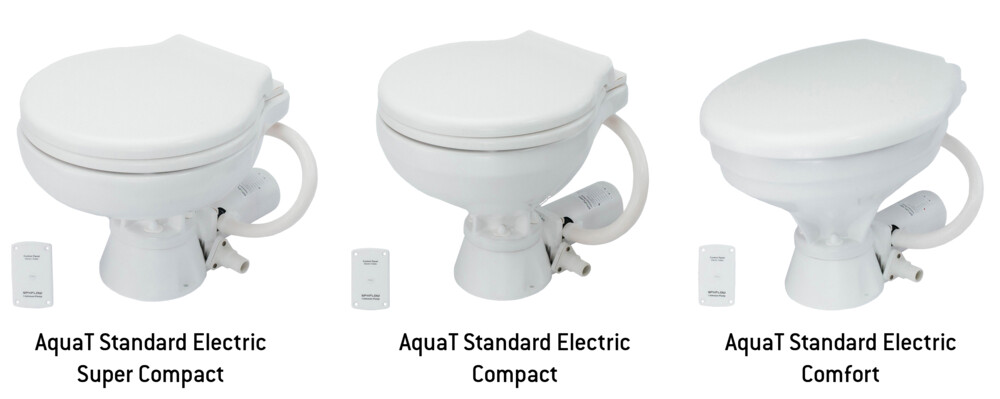

Available Models
- Comfort bowl – larger comfortable oval seat
- Compact bowl – round seat for limited installation space
- Super Compact bowl – smaller and lighter, ideal for tight spaces
Marine Toilet Features
Performance and Operation
- Silent flush and discharge operation
- Included control panel for rinse and discharge pump; one-button multifunction discharge and rinse
- High capacity discharge pump
Design and Installation
- Flexible hole pattern on the base for easy substitution
- Smooth design for easy cleaning
- Accessible mounting points for fast installation
- Standard fastenings, logically located – no special tools required
Water Supply and Safety
- Built-in rinse pump for raw or fresh water from a separate toilet water tank
- Do not connect the toilet’s rinse pump to the boat’s fresh/drinking water system
- Limited 2 Year Warranty
The waste can be discharged either overboard (please abide by national or local restrictions), or into a treatment system or into an on-boar holding tank.
Note: SPX FLOW Johnson Pump Standard Electric toilets are designed specifically for marine use. Consult your SPX FLOW Johnson Pump retailer for advice about possible non-marine applications.
Toilet mounted below the waterline and discharging overboard.
Toilet mounted above the waterline and discharging overboard.
Toilet waste discharging into holding tank, discharging elbow below top of the holding tank at any time.
Toilet waste discharging into holding tank, discharging elbow always above top of the holding tank.

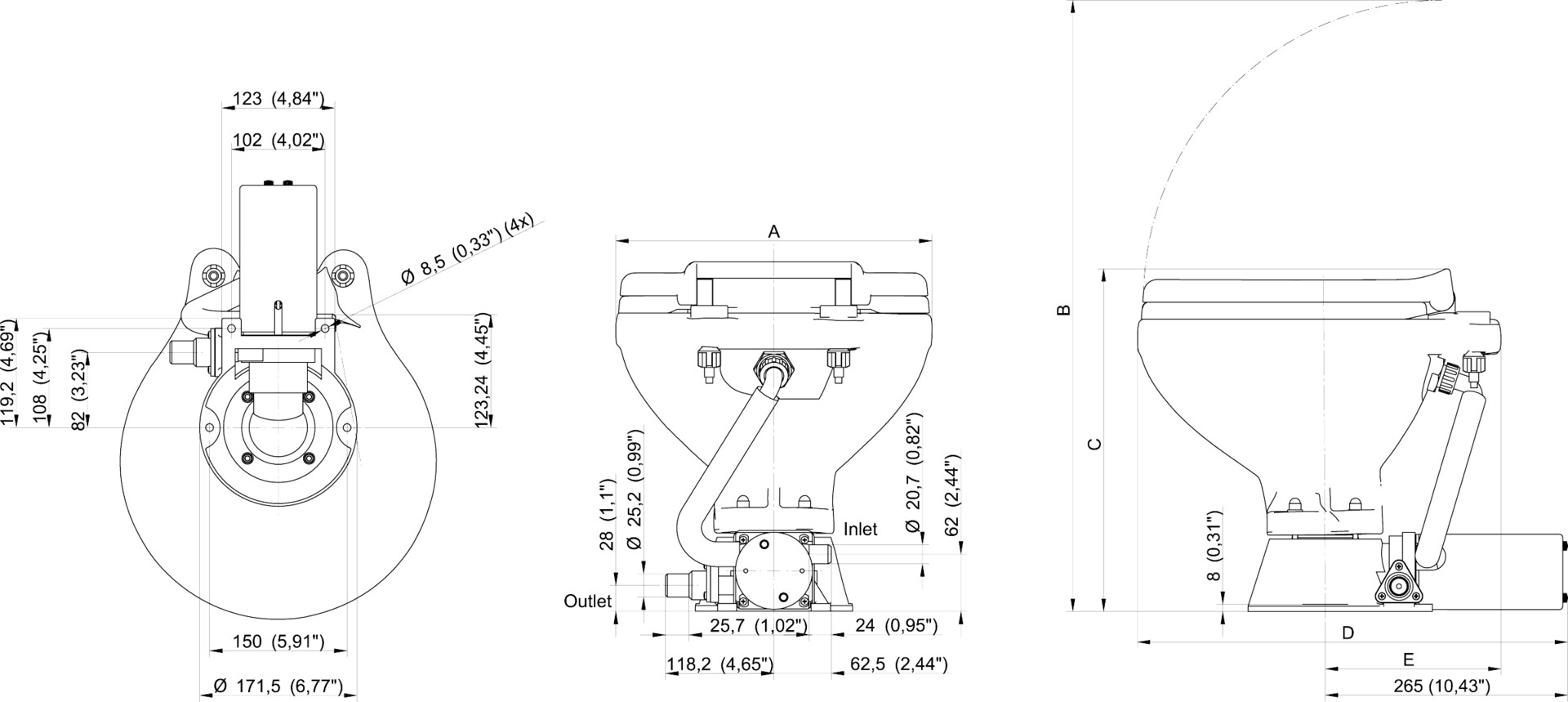

Dimensions
| Part No. | Description | Net weight | A | B | C | D | E | mm/ inch | |
| 80-47626-01 | AquaT Standard Electric Super Compact. 12V | 9.2 | kg | 340 | 635 | 330 | 450 | 215 | mm |
| 20 | lbs | 13.39 | 25.00 | 12.99 | 17.72 | 8.46 | inch | ||
| 80-47435-01 | AquaT Standard Electric Compact. 12V | 9.5 | kg | 340 | 680 | 380 | 450 | 215 | mm |
| 80-47435-02 | AquaT Standard Electric Compact. 24V | 21 | lbs | 13.39 | 26.77 | 14.96 | 17.72 | 8.46 | inch |
| 80-47436-01 | AquaT Standard Electric Comfort. 12V | 11 | kg | 365 | 755 | 360 | 475 | 260 | mm |
| 80-47436-02 | AquaT Standard Electric Comfort. 24V | 24 | lbs | 14.37 | 29.72 | 14.17 | 18.70 | 10.24 | inch |
