Bilge, Deck Wash & Refueling Pumps

Product Type(s) : Bilge Pumps
Description :

With their high level of flexibility, the DC driven pumps from SPXFLOW Johnson Pump are ideally suited for use in boats as bilge pumps, deck wash pumps, fresh water pumps and refuelling pumps for oil and diesel. Not to be used for pumping paraffin or other thin petroleum products. These pumps may be combined with a vacuum switch for automatic operation. Not to be used for pumping paraffin or other thin petroleum products.

WHERE TO BUY

FEATURES

  • Limited 3 Year Warranty
  • Typical applications: Bilge pump, fresh water pump, deck washing, fuel oil transfer, fire pump, oil change pump, etc.
  • Full range of capacities from 15 - 55 l/min
  • Oil-resistant impeller
  • Self-priming
  • Easy maintenance
  • Handle debris (bilge pumping)
  • Self-priming
  • All motors are heavy duty to provide long service life even under heavy use
  • Available in 12 or 24 volts
F2P10-19 - Capacity 15 L/min - 4 GPM

Perfect for bilge pumping, deckwash, water circulation, oil and diesel refueling at dockside service, etc. Fully equipped, self-priming multipurpose pump operating on a simple and uncomplicated principle. The motor has a built-in thermal overload for added protection.



Technical Data

Part No. Description Body Impeller* Seal Connection Length Width Height Weight
10-24886-01 F2P10-19 12V PA 09-1077B-9 Lip seal ½" hose 172 mm – 6.8" 117 mm – 4.6" 78 mm – 3" 1,6 kg – 3.5 lbs
10-24886-02 F2P10-19 24V PA 09-1077B-9 Lip seal ½" hose 172 mm – 6.8" 117 mm – 4.6" 78 mm – 3" 1,6 kg – 3.5 lbs
*includes Nitrile impeller



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

F3B-19 – Capacity 21 L/min - 5.5 GPM

Perfect for bilge pumping, deckwash, water circulation, oil and diesel refueling at dockside service, etc. The motor has a built-in thermal overload for added protection.



Technical Data

Part No. Description Body Impeller* Seal Connection Length Width Height Weight
10-24516-01 F3B-19 12V Bronze 09-843S-9 Lip seal ⅜" BSP 170 mm – 6.7" 113 mm – 4.4" 82 mm< – 3.22" 2 kg – 4.5 lbs
10-24516-02 F3B-19  24V Bronze 09-843S-9 Lip seal ⅜" BSP 170 mm – 6.7" 113 mm – 4.4" 82 mm – 3.22" 2 kg – 4.5 lbs
*includes Nitrile impeller



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

F3B-19 Oil Change – Capacity 21 L/min - 5.5 GPM

Designed to remove old oil from the engine/fill new oil back into the engine. Reversible rubber impeller pump with integrated quick reversing switch. The motor has a built-in thermal overload for added protection. For permanent installation near the engine.



Technical Data

Part No. Description Body Impeller* Seal Connection Length Width Height Weight
10-24760-01 F3B-19 Oil Change 12V Bronze 09-843S-9 Lip seal ⅜" BSP 70 mm – 6,7" 113 mm – 4.4" 115 mm – 4.5" 2,1 kg – 4.5 lbs
10-24760-02 F3B-19 Oil Change 24V Bronze 09-843S-9 Lip seal ⅜" BSP 70 mm – 6,7" 113 mm – 4.4" 115 mm – 4.5" 2,1 kg – 4.5 lbs
*Includes Nitrile impeller



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

F38B-19 – Capacity 35 L/min - 9 GPM

Perfect for bilge pumping, deck wash, water circulation, oil and diesel refueling at dockside service, etc. The motor has a built-in thermal overload for added protection.



Technical Data

Part No. Description Body Impeller* Seal Connection Length Width Height Weight
10-24727-01 F38B-19 12V Bronze 09-824P-9 Lip seal Hose 1" / ½" BSP 180 mm – 7" 120 mm – 4.72" 90 mm – 3.54" 3 kg – 6.6 lbs
10-24727-02 F38B-19 24V Bronze 09-824P-9 Lip seal Hose 1" / ½" BSP 180 mm – 7" 120 mm – 4.72" 90 mm – 3.54" 3 kg – 6.6 lbs
*Includes Nitrile impeller



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

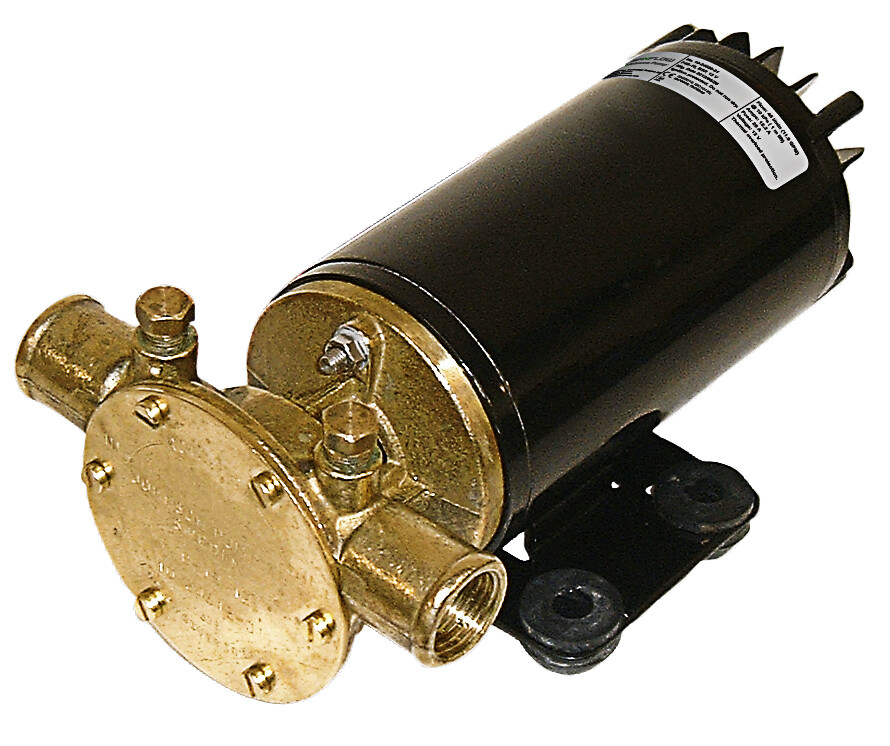

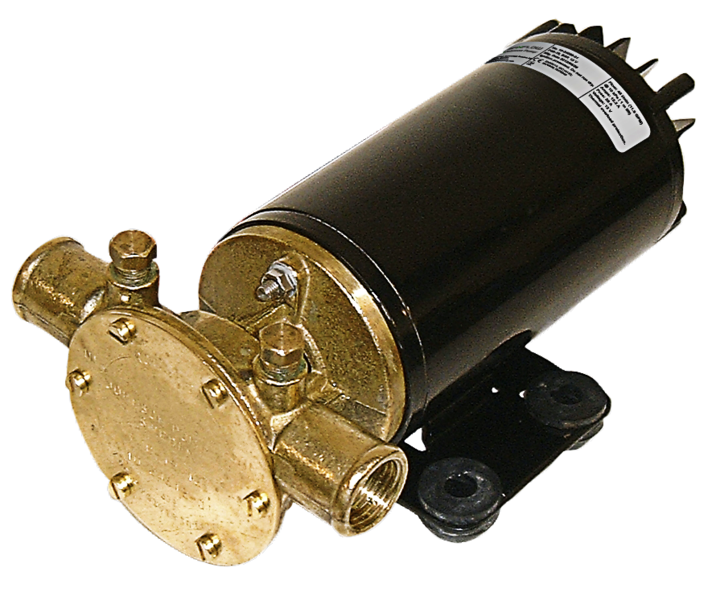

F4B-19 – Capcity 48 L/min - 12.5 GPM

Perfect for bilge pumping, deckwash, water circulation, oil and diesel refueling at dockside service, etc. The motor has a built-in thermal overload for added protection.



Technical Data

Part No. Description Body Impeller* Seal Connection Length Width Height Weight
10-24689-01 F4B-19 12V Bronze 09-824P-9 Lip seal Hose 1" / ½" BSP 202 mm – 8" 120 mm – 4.72" 90 mm – 3.54" 3 kg – 6.6 lbs
10-24689-02 F4B-19 24V Bronze 09-824P-9 Lip seal Hose 1" / ½" BSP 202 mm – 8" 120 mm – 4.72" 90 mm – 3.54" 3 kg – 6.6 lbs
*Includes Nitrile impeller



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

F5B-19 – Capacity 55 L/min - 14.5 GPM

Perfect for bilge pumping, deckwash, water circulation, oil and diesel refueling at dockside service, etc.



Technical Data

Part No. Description Body Impeller* Seal Connection Length Width Height Weight
10-24188-1 F5B-19 12V Bronze 09-1027B-9 Mechanical seal ¾" BSP 258 mm – 10.15" 131 mm – 5.15" 120 mm – 4.72" 8kg – 17.5lbs
10-24188-2 F5B-19 24V Bronze 09-1027B-9 Mechanical seal ¾" BSP 258 mm – 10.15" 131 mm – 5.15" 120 mm – 4.72" 8kg – 17.5lbs
*Includes Nitrile Impeller



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

DIMENSIONS & SPECIFICATIONS

Technical Data

Pump

Part no Motor Body Impeller Seal Connection Lenght (mm) Width (mm) Height (mm) Weight (kg)
F2P10-19 10-24886-01 12V PTMT 09-1077B-9 Lip seal 1/2" hose 172 117 78 1,6
F2P10-19 10-24886-02 24V PTMT 09-1077B-9 Lip seal 1/2" hose 172 117 78 1,6
F3B-19 10-24516-01 12V Bronze 09-1052S-9 Lip seal 3/8" BSP 170 113 82 2
F3B-19 10-24516-02 24V Bronze 09-1052S-9 Lip seal 3/8" BSP 170 113 82 2
F4B-19 10-24689-01 12V Bronze 09-824P-9 Lip seal Hose 1"
1/2" BSP
202 120 90 3
F4B-19 10-24689-02 24V Bronze 09-824P-9 Lip seal Hose 1"
1/2" BSP
202 120 90 3
F5B-19 10-24188-1 12V Bronze 09-1027B-9 Mech. seal 3/4" BSP 258 131 120 8
F5B-19 10-24188-2 24V Bronze 09-1027B-9 Mech. seal 3/4" BSP 258 131 120 8

OPTIONS & PERFORMANCE

Pressure and Capacity Data(Based on Water at 20˚C/68˚F)

F2P10-19

Ampere Draw
Bar kPa psi l/min GPM 12 V 24 V
Countinuous Duty
0 0 0 15.0 4.0 5.6 4.0
0.1 10 1.45 14.5 3.8 5.7 4.0
0.2 20 2.90 14.0 3.7 5.8 4.1
0.3 30 4.35 13.5 3.6 5.9 4.1
0.6 60 8.7 11.0 2.9 6.1 4.2
Intermittent Duty
0.75 75 10.8 9.6 2.5 6.5 4.3
0.9 90 13.0 7.0 1.8 6.5 4.8
Fuse Required 15 A 8 A



F3B-19

Ampere Draw
Bar kPa psi l/min GPM 12 V 24 V
Continuous Duty
0 0 0 21.0 5.5 8.4 4.0
0.1 10 1.45 20.5 5.4 8.5 4.0
0.2 20 2.9 20.0 5.3 8.6 4.1
0.3 30 4.35 19.5 5.2 8.8 4.1
0.6 60 8.7 17.8 4.7 9.0 4.2
Intermittent Duty
0.9 90 13.0 15.6 4.1 9.6 4.3
1.2 120 17.4 12 3.2 10.3 4.8
Fuse Required 15 A 8 A



F38B-19

Ampere Draw
Bar kPa psi l/min GPM 12 V 24 V
Continuous Duty
0 0 0 35.0 9.2 10.9 5.0
0.1 10 1.45 33.8 8.9 11.0 5.1
0.2 20 2.9 32.2 8.5 11.0 5.1
0.3 30 4.35 31.0 8.2 11.1 5.2
0.6 60 8.7 25.5 6.7 11.9 5.4
Intermittent Duty
0.9 90 13.0 15.3 4.0 13.6 6.0
1.2 120 17.4 2.0 0.5 15.8 7.1
Fuse Required 15 A 8 A



F4B-19

Ampere Draw
Bar kPa psi l/min GPM 12 V 24 V
Continuous Duty
0 0 0 48.0 12.7 12.2 6.5
0.1 10 1.45 45.0 11.9 12.3 6.7
0.2 20 2.9 44.5 11.7 12.2 6.8
0.3 30 4.35 41.0 10.8 13.1 7.1
0.6 60 8.7 34.0 9.0 14.9 7.5
Intermittent Duty
0.9 90 13.0 25.0 6.6 16.5 7.8
1.2 120 17.4 11.0 2.9 18.3 8.8
Fuse Required 15 A 8 A



F5B-19

Ampere Draw
Bar kPa psi l/min GPM 12 V 24 V
Continuous Duty
0 0 0 55.0 14.5 23.2 11.9
0.3 30 1.45 49.4 13.1 24.2 12.8
0.6 60 8.7 39.9 10.5 25.1 13.3
0.9 90 13.0 30.1 8.0 26.2 14.0
1.2 120 17.4 19.3 5.1 28.0 14.7
1.5 150 21.76 9.3 2.4 29.8 15.3
Fuse Required 50 A 25 A
Recommended wire size 16 mm2 6 mm2
