Bilge Pump Control Panel

Product Type(s) : Bilge Pumps – Electric
Description :

Switch panel that gives full control of your equipment. Just push the button for manual or automatic bilge pumping. The automatic feature operates in combination with the automatic bilge switches or the electronic float switch. The three- or two-position switch panel in matt black finish has an integrated fuse holder and operating light. Fuses are not included.

WHERE TO BUY

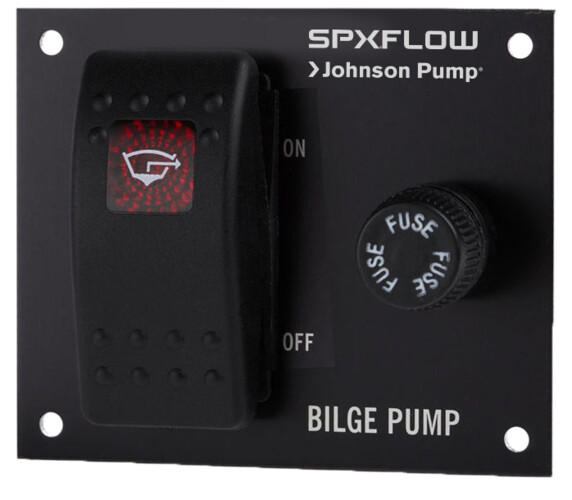

2-way Switch ON-OFF Bilge Control Panel
2-way Switch ON-OFF Bilge Control Panel

Operate your Bilge Pump remotely from the cockpit. Two position switch for manually activating and deactivating your Bilge Pump.

  • Two-position switch panel for manual operation
  • Panel in matt black finish has an integrated fuse holder and operating light
  • Fuses are not included
  • 12V or 24V
  • Available only in USA

Dimensions

Size: 73 mm/2.99" x 60 mm/2.17" 40 mm/ 1.57" depth



Part number

Part No. USA Description
82004 Bilge Pump Control 12V 2-Way ON OFF
82004-24V Bilge Pump Control 24V 2-Way ON OFF



See this product in the Johnson Pump Marine Catalog:  US

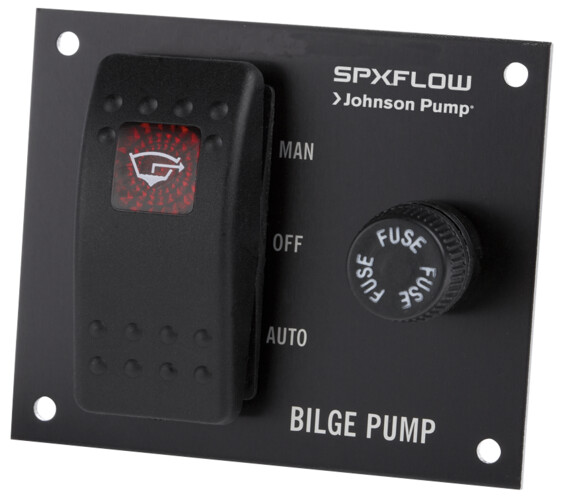

3-way Switch ON-AUTO-OFF Bilge Control Panel
3-way Switch ON-AUTO-OFF Bilge Control Panel

Operate your Bilge Pump remotely from the cockpit. Three position switch for manually or automatically activating and deactivating your Bilge Pump. The automatic feature operates in combination with the automatic bilge switches or the electronic float switch.

  • Three-position switch panel for manual or automatic operation
  • Panel in matt black finish has an integrated fuse holder and operating light
  • Fuses are not included
  • 12V or 24V

Dimensions

Size: 73 mm/2.99" x 60 mm/2.17" 40 mm/ 1.57" depth



Part number

Part No. Part No. USA Description
34-1224 82044 Bilge Pump Control 12V 3-Way ON AUTO OFF
34-1225 82044-24V Bilge Pump Control 24V 3-Way ON AUTO OFF



Manual EN, DE, ES, FR, IT, SV, PL

See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV
