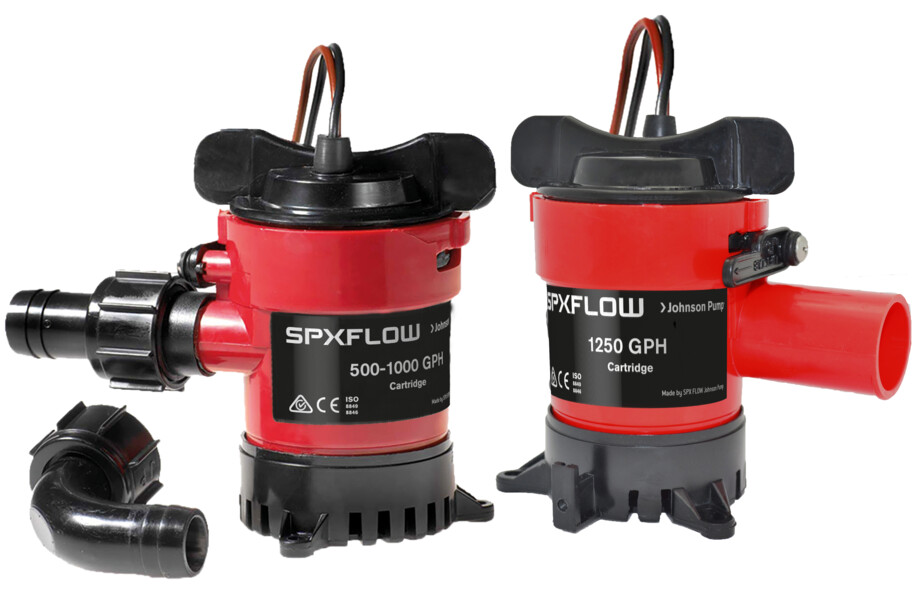

Cartridge - Submersible Bilge Pumps

Product Type:
Marine - Recreational / Submersible Bilge Pumps

Our Cartridge Pumps incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties.

Features
  • Limited 3 Year Warranty
  • Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
  • No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
  • 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
  • Meets the international standard, ISO 8849 marine
  • Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation
Specifications

Material Specifications

Pump body: Thermoplastic
Shaft seal: Lip seal
Shaft: Stainless steel (SS2343)



Technical Data

Part No. Part No. USA Description Capacity 3 ft (0.9 m) head (13.6V/27.2V) Capacity straight (13.6V/27.2V) Voltage Amperage Fuse Size Connection Wire size
32-1450-01 32503 Cartridge Bilge Pump 500 GPH 12V 33 l/min - 525 GPH 40 l/min - 630 GPH 12 V 2.5 A 5 A ¾" 16 GA (1.3mm2)
32-1550-01 32703 Cartridge Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 12 V 3 A 5 A
32-1650-01 32903 Cartridge Bilge Pump 1000 GPH 12V 50 l/min - 800 GPH 63 l/min - 1000 GPH 12 V 3.2 A 5 A
32-1650-01-24 32903-24V Cartridge Bilge Pump 1000 GPH 24V 50 l/min - 800 GPH 63 l/min - 1000 GPH 24 V 2 A 3 A
32-1750-01* 42123* Cartridge Bilge Pump 1250 GPH 12V 60 l/min - 952 GPH 73 l/min - 1150 GPH 12 V 3 A 5 A 1⅛"
32-1750-01-24* 42123-24* Cartridge Bilge Pump 1250 GPH 24V 60 l/min - 952 GPH 73 l/min - 1150 GPH 24 V 2 A 3 A
* Does not include Dura-Port connection



See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

Dimensions
Height (A)  4.41" (112 mm)
Width (B)  3.46" (88 mm)
Width (C)  3.15" (80 mm)
Weight 0.27 kg – 9.6 oz. 500 GPH – 1000 GPH
0.32 kg – 10.4 oz. 1250 GPH
