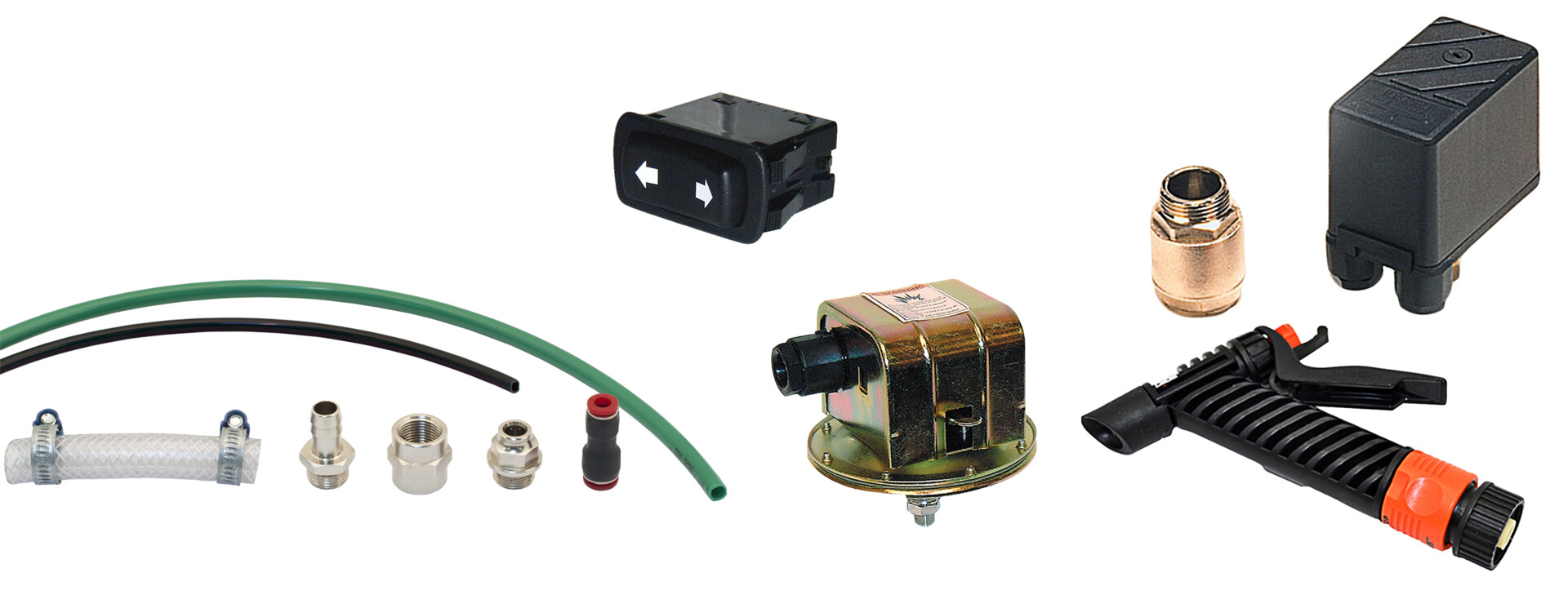

Flexible Impeller Pump (DC) Accessories

Accessories to complement your Johnson Pump Flexible Impeller DC Pumps: Oil Change capabilities, switches for ease of use, and Deck Wash Kit.

Features & Benefits
Downloads

Oil Change Kit

Suitable for both F2P10-19 (connection ½" hose) and F3B-19 (connection ⅜", BSP).

oil dip stick extraction tube 6 and 8 mm
Total hose length 240 cm (120 cm +120 cm)

Part Number	Description
09-47616	Oil Change Kit

Polarity Reversing Switch Kit for Ultra Ballast Pump F4B-11

Flexible Impeller Pumps are reversible by switching the positive and negative leads to the electric motor. The Polarity Reversing Switch Kit accomplishes this as easily as a push of a switch.

Part Number	Description
09-47196	Polarity Reversing Switch Kit

Vacuum Switch

The vacuum switch works with all self-priming impeller pumps and should be used for e.g. bilge pumping/emptying of tanks to prevent the pump from running dry.

The vacuum switch automatically shuts the pump off when the bilge/tank is dry. With the switch fitted, you can start the pump by remote push button or manually by depressing lever on the switch.

For automatic shut off operation
To prevent pump damage

Part Number	Description
09-45053	Vacuum Switch

Deck Wash Kit F4B-19

Convert your F4B-19 pump into a deck wash pump.

Trigger nozzle
Pressure switch for turning the pump on and off when the trigger nozzle is activated
Check valve

Part Number	Description
09-46553	Deck Wash Kit for F4B-19 (incl. pressure switch, check valve and trigger nozzle)
