Gray Water Tank

Product Type(s) : Wastewater Handling
Description :

The Grey Water Tank is designed to be used as a collection tank for waste water from showers, sinks, dishwashing machines, etc. The tank includes an Ultima Switch for automatic operation and is easy to connect to any 12V/24V pump up to 20 amp. The tank is prepared for Viking Power 16, with pre-drilled holes for the pump. Note: The Viking Power 16 pump is to be ordered separately.
WHERE TO BUY

FEATURES

  • Limited 3 Year Warranty
  • 19mm, 25mm and 38mm inlet ports
  • 19mm and 25mm outlet ports
  • Ultima Switch for automatic operation included
  • Can be connected to any 12V/24V pump, up to 20 Amp
  • Predrilled holes for a Viking Power 16 (not included)
Key Applications

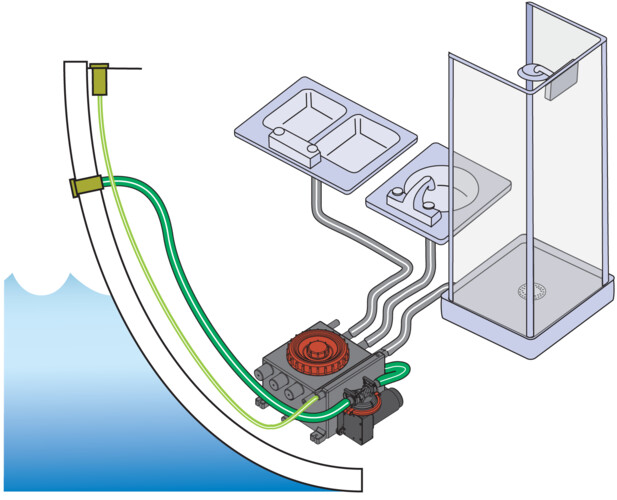

Grey Water Tank application, with Viking Power 16

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

Dimensions

Height: 185mm - 7.3"
L x W - with pump: L: 397mm - 15.6" W: 340mm - 13.4"
L x W - without pump: L: 280mm - 11" W: 340mm - 13.4"



Part number

Part No. Description
09-13384 Grey Water Tank (excl. Viking Power 16)
10-13350-03-003 Grey Water Tank and Viking Power 16 12V Combo



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV
