Talulah Ballast Pumps

Talulah™ Ballast Pumps

Specifically designed to quickly fill or, when reversed, drain a ballast tank. Capable of pumping fresh or sea water, the pump’s robust design lends itself to High Performance and High Output for intermittent duty usage. The pumps are reversible, and has a built-in thermal overload for added protection.

Where to Buy

Talulah 13.5 GPM Ballast Pump

High Performance in a Smaller Package!

Talulah 13.5 GPM Ballast Pump

F4B-1207 Ballast Pump
Built in Thermal Overload Protection with automatic reset upon cooling
Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications
Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
High Performance and High Output for intermittent duty cycles
Professional installation recommended (Acc. to ISO 10133)
Best used with fully charged battery banks and alternators running
Limited 3 Year Warranty
_{*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.}

Technical Data

Talulah Impeller Kit	09-849P-2
Flow	30 GPM (1ft lift) 1 1/2" Hose
Voltage	13.6VDC
Connection	External 1 1/2" NPTF
Minimum Hose Size	1 1/2" (Ø38 mm)
Standards	Meets ISO 8846 & SAE J1171
Degree of Protection	IP 54
Wire Size	Min. 12 AWG
Fuse Size	50A
Amp Draw @ Pumping	25A
Amp Draw @ Reversal	Up to 45A

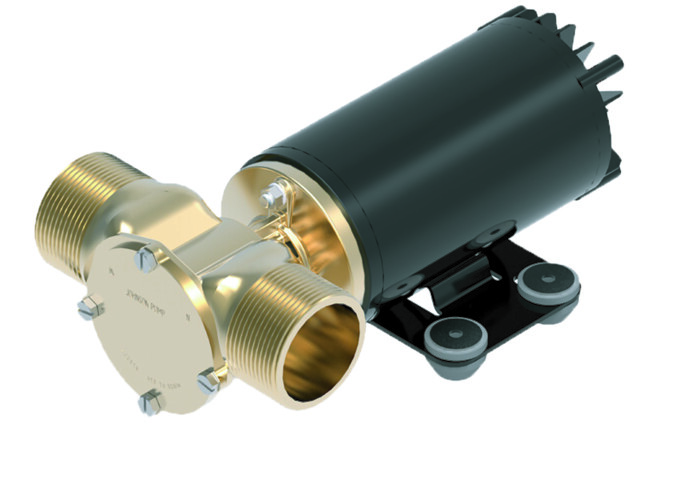

Talulah HF (High Flow) 30 GPM Ballast Pump

The defining high performance ballast pump for today’s wake and watersport boats

Talulah HF (High Flow) 30 GPM Ballast Pump

Built in Thermal Overload Protection with automatic reset upon cooling
Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications
Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
High Performance and High Output for intermittent duty cycles
Professional installation recommended (Acc. to ISO 10133)
Best used with fully charged battery banks and alternators running
Limited 3 Year Warranty
_{*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.}

Technical Data

Talulah Impeller Kit	09-824P-2
Flow	13.5 GPM
Voltage	13.6VDC
Connection	External 1" standard hose Internal 1/2" NPT (female)
Minimum Hose Size	1" (Ø25.4 mm)
Standards	Meets ISO 8846 & SAE J1171
Degree of Protection	IP 54
Wire Size	Min. 12 AWG
Fuse Size	25A
Amp Draw @ Pumping	14A
Amp Draw @ Reversal	Up to 18A

Part Numbers

10-24690-18	Talulah Ballast Pump 13.5 GPM 12V
10-24690-04	F4B-1207 24V Ballast Pump 1/2" NPT EZ PU
10-24939-18	Talulah HF (High Flow) Ballast Pump 30 GPM 12V
09-824P-2	Talulah Ballast Pump Impeller Kit
09-849P-2	Talulah HF (High Flow) Ballast Pump Impeller Kit

Talulah 13.5 GPM Ballast Pump

High Performance in a Smaller Package!

Technical Data

Talulah HF (High Flow) 30 GPM Ballast Pump

The defining high performance ballast pump for today’s wake and watersport boats

Technical Data
