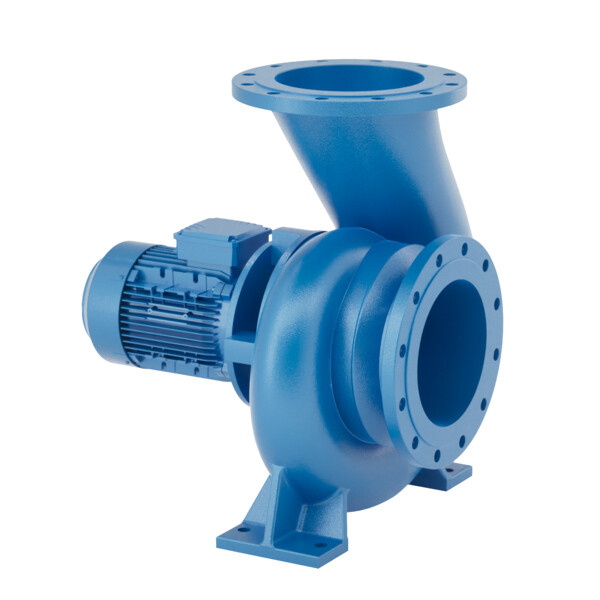

CombiBlocHorti - Close-Coupled Centrifugal Pump
Close-coupled horizontal centrifugal pump to EN 733 (DIN 24255)
CombiBlocHorti: Close-Coupled Horizontal Centrifugal Pump
Design Standard
Manufactured to EN 733 (DIN 24255) specifications.
Key Features
- Compact, economic, and space-saving construction
- No shaft alignment required
- Outstanding hydraulic performance
- High efficiency impeller
- Closed impeller with back vanes for axial balancing of impeller loads
- Easy maintenance and low maintenance cost
- Simple installation without heavy foundation
- Vertical arrangement option available
- Standard mechanical shaft seal: EN 12756 (DIN 24690)
Suitable Applications
Fluid Compatibility
Suitable for: Low viscosity, clean or slightly contaminated and aggressive liquids.
Technical Data
| Casing: | Cast iron,Nodular cast iron, Bronze, Stainless steel |
|---|---|
| Impeller: | Cast iron, Bronze, Stainless steel |
| Max. capacity: | 850 m3/h |
| Max. delivery head: | 105 m |
| Max. liquid temp: | 120°C |
| Max. pressure: | 1000 kPa (10 bar) |
| Max. speed: | 3 600 rpm |
