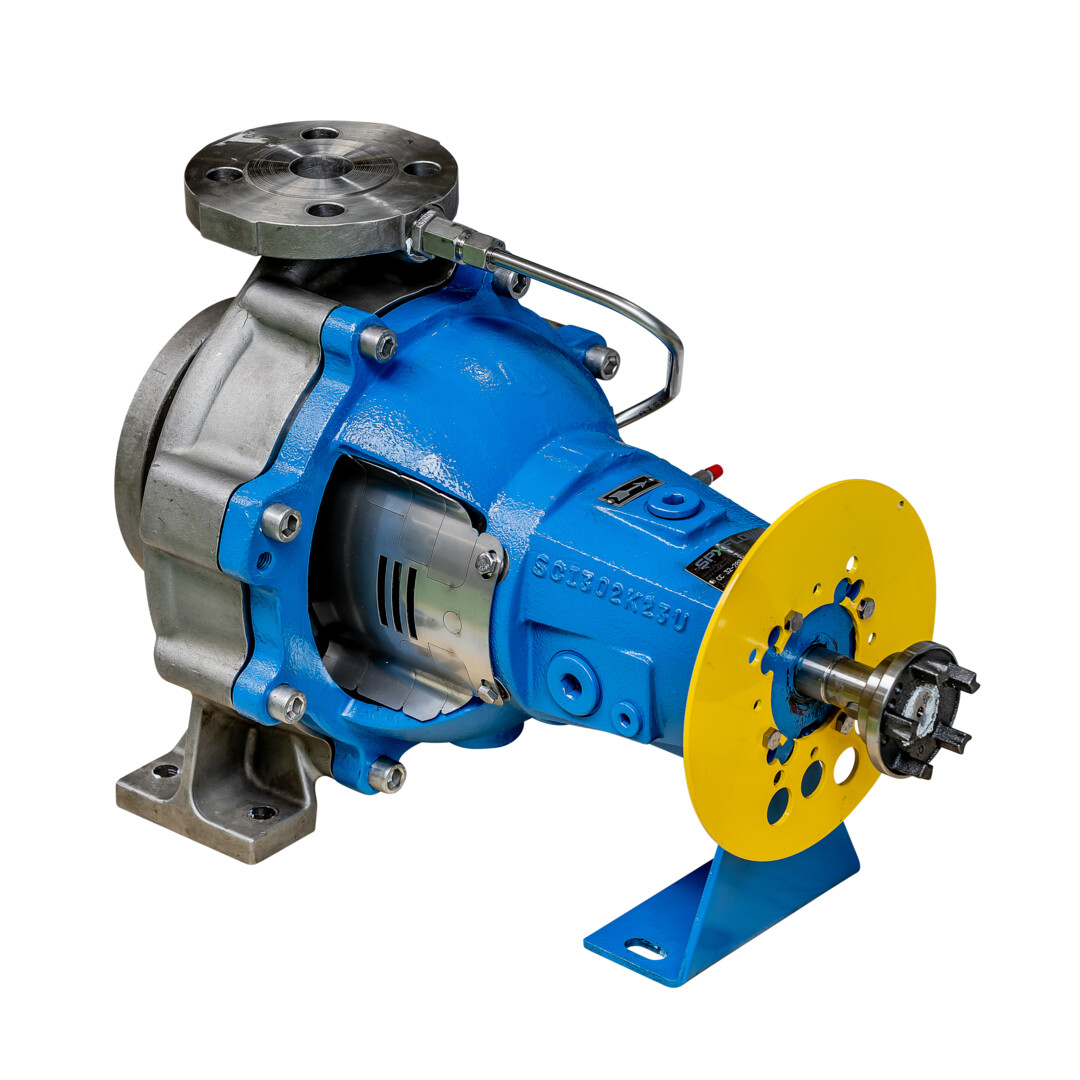

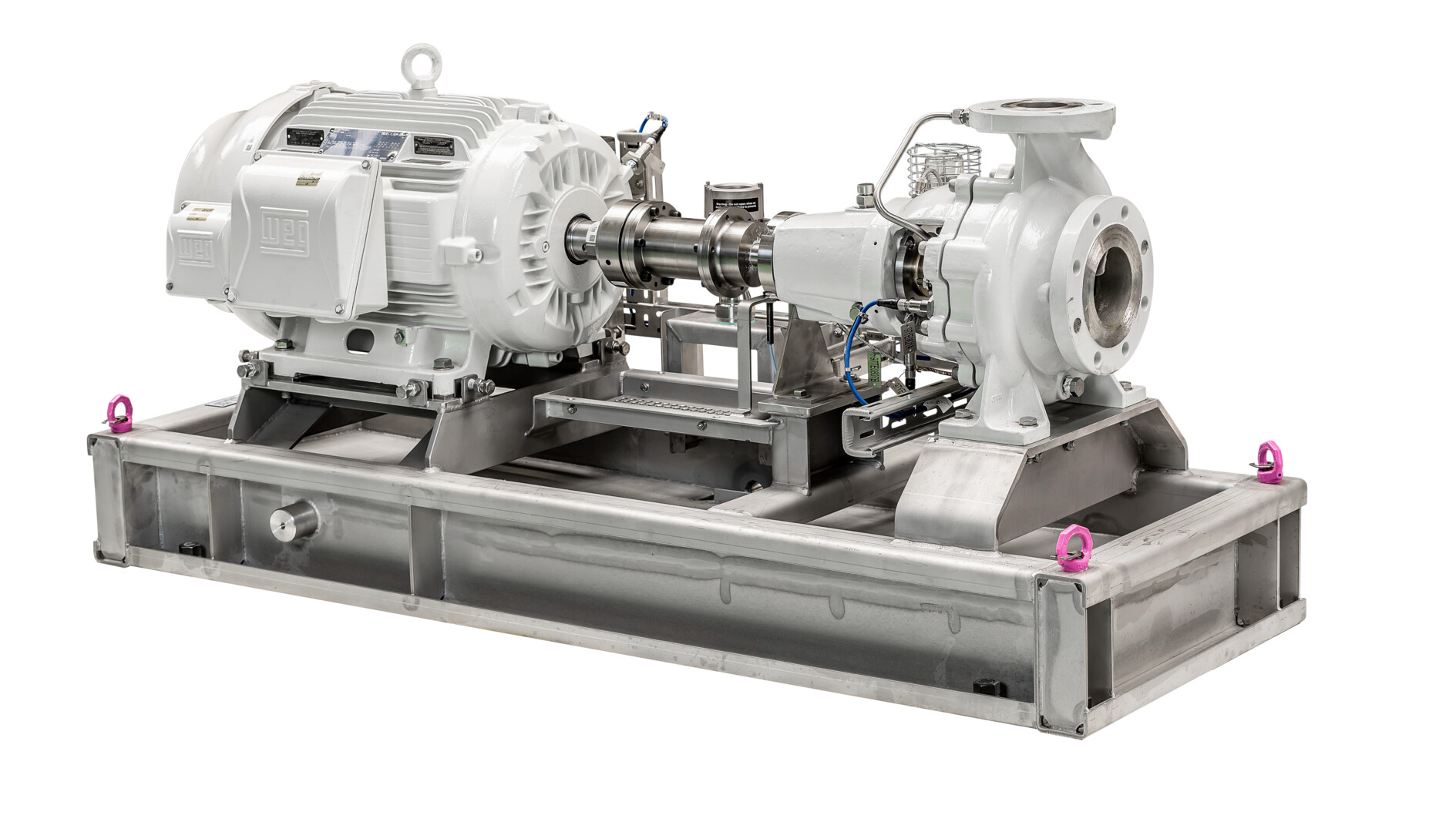

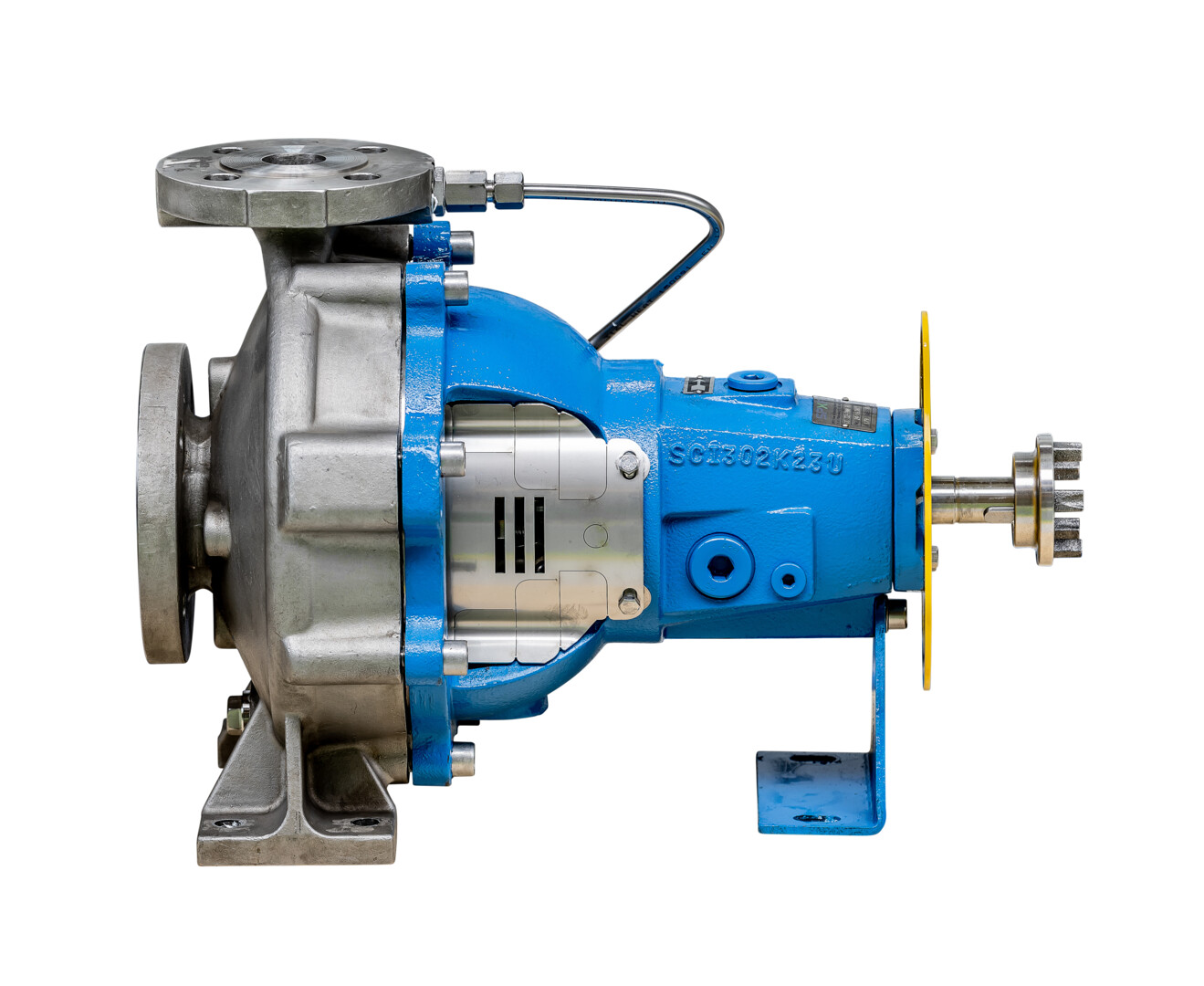

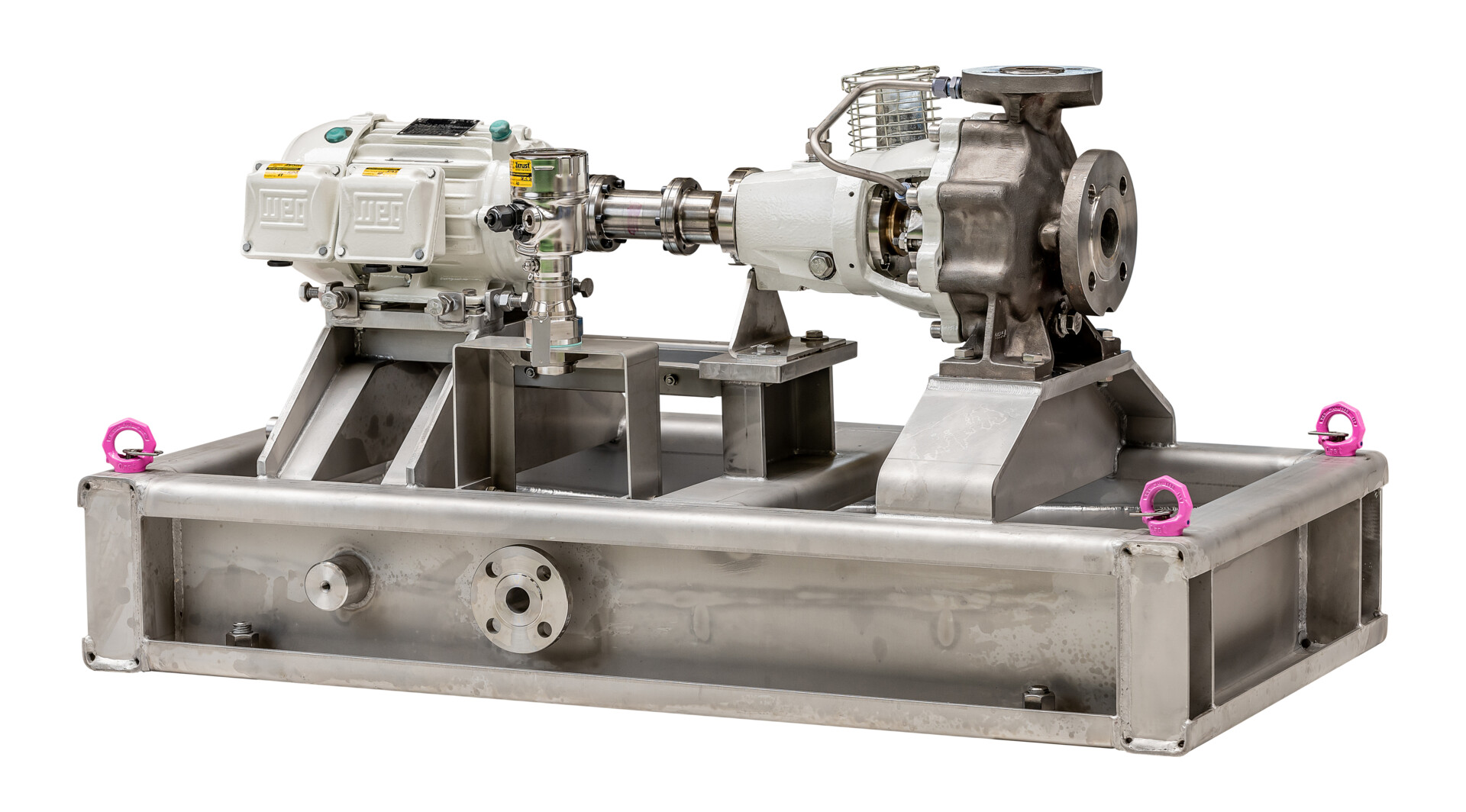

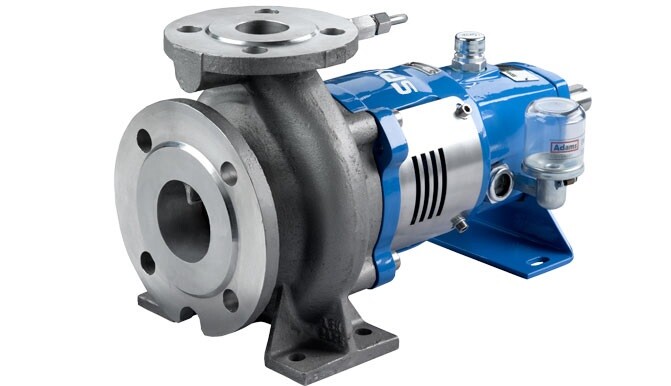

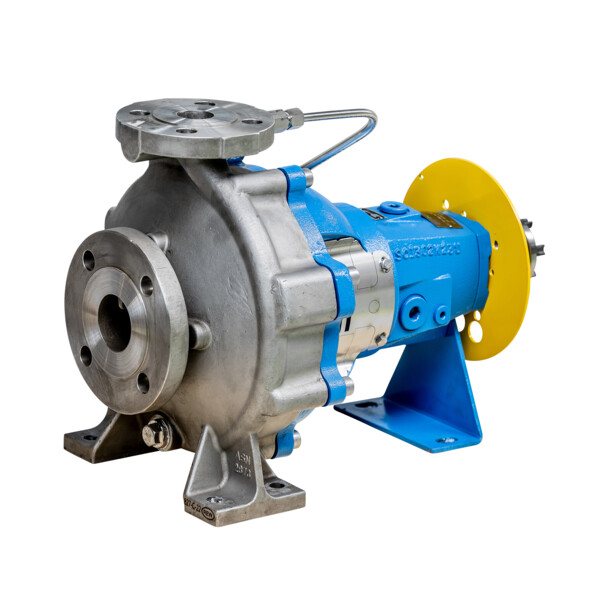

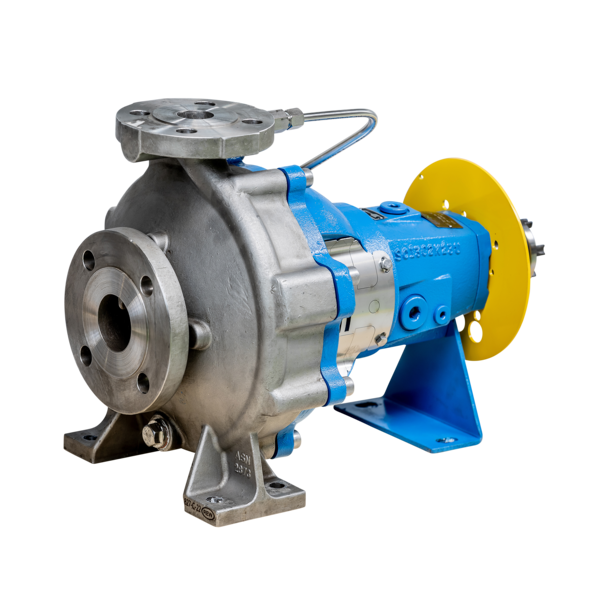

CombiChem - Centrifugal Pump

Product Type:
Pumps / Centrifugal Pumps

Horizontal centrifugal pump to ISO 2858 (EN 22858 (DIN 24256)) and ISO 5199

We Are Here to Help

Find your local representatives within your region for product inquiries.
Where To Buy
Features

Horizontal centrifugal pump to ISO 2858 (EN 22858 (DIN 24256)) and ISO 5199

  • Standardized and modular design
  • Flanges according to ISO 7005 PN 16
  • For stainless steel execution 150 lbs ANSI B 16.5 available
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Half open impeller with wear plate and external adjustment
  • Easy maintenance through the Back-Pull-Out principle
  • Single unbalanced / balanced seals to EN 12756 (DIN 24960)
  • Single and double cartridge seals with seal support system
  • Quenched shaft sealing
  • Atex certification
  • Dry-shaft design, pumped liquid not in contact with the shaft
  • Heating jacket optional
  • Robust shaft design
  • Extended life time
  • 2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
  • Grease or oil bath lubricated bearings

Suitable for
Low viscosity, clean or slightly contaminated liquids, especially in the chemical industry

Specifications

Technical Data

Casing: Cast iron, Nodular cast iron, Bronze, Stainless steel
Impeller: Cast iron, Bronze, Stainless steel
Max. capacity: 800 m3/h
Max. delivery head: 160 m
Max. liquid temp: 200°C
Max. pressure: 1600 kPa (16 bar)
Max. speed: 3 600 rpm



Drawings & Models
CombiChem Dimensional Drawings (.DWG)
32 mm (63 files)
zip
40 mm (88 files)
zip
50 mm (99 files)
zip
65 mm (105 files)
zip
80 mm (113 files)
zip
100 mm (93 files)
zip
125 mm (64 files)
zip
150 mm (34 files)
zip
200 mm (14 files)
zip
250 mm (10 files)
zip
Downloads
Brochures
CombiChem Centrifugal pump GB CN DE ES FR NL
Industrial Pump Product overview GB
Combi Modular System overview GB
Manuals
CombiChem, Instruction Manual GB CN CR CZ DE DK ES EST FIN FR HU IT LA NL NO PL PT RU SV
Atex Manual GB CR CZ DE DK ES FIN FR HU IT NL NO PL RU SK SV
Resources
ECO Design Water Pumps GB
