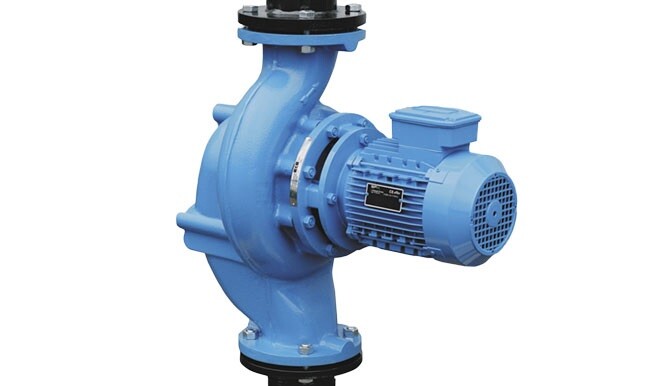

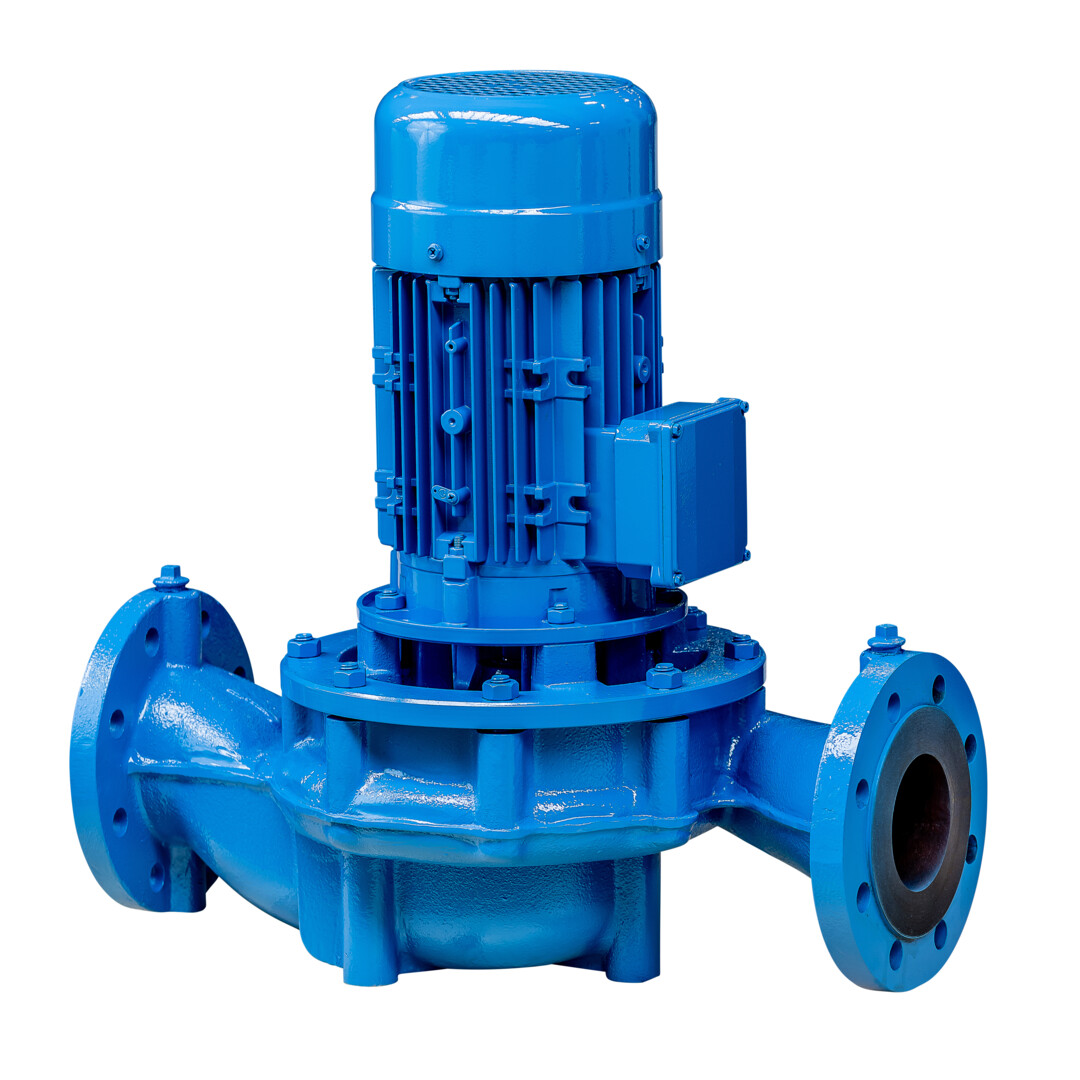

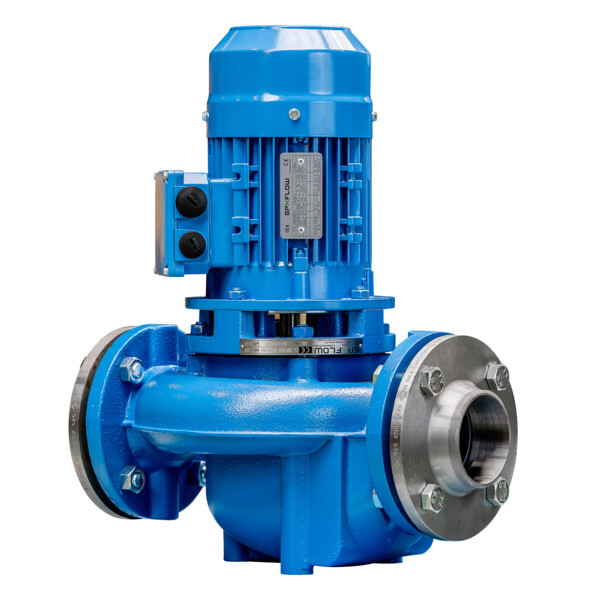

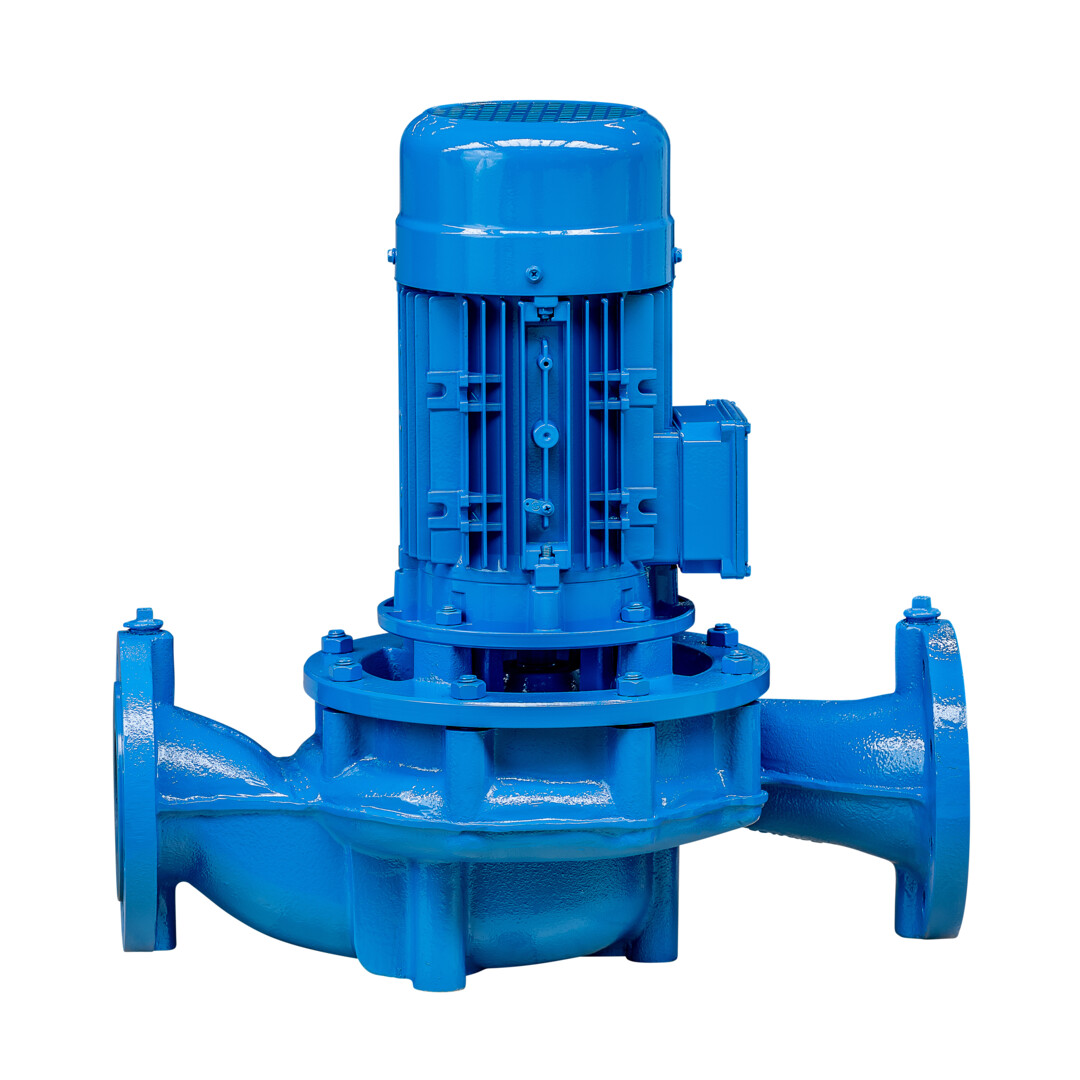

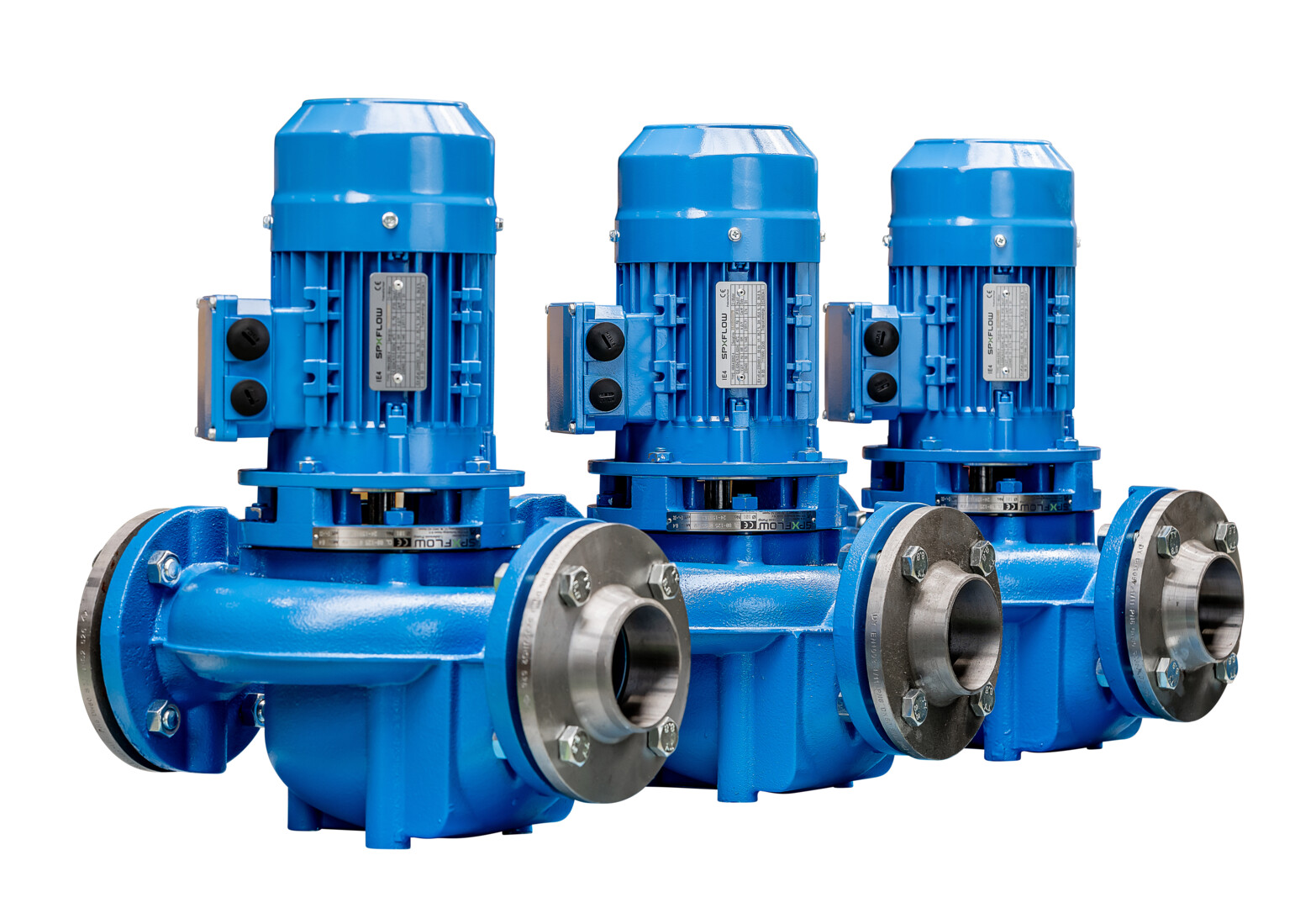

CombiLine - Centrifugal Pump with In-line Ports

Product Type:
Pumps / Centrifugal Pumps

In-line circulating pump with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

Features

In-line circulating pump with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

  • Compact, economic, space saving construction
  • Wide range of applications
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Special designed low NPSH suction inlet casing
  • Back-Pull-Out construction for easy maintenance
  • Low maintenance cost
  • Suitable for vertical arrangement
  • Standard mechanical shaft seal EN 12756 (DIN 24690)
  • ATEX Certified
  • CE Certified

Suitable for

Clean, slightly contaminated thin liquids in heating and cooling systems with in-line suction and delivery flanges for mounting without foundation



Specifications

Technical Data

Casing: Cast iron
Impeller: Cast iron
Max. capacity: 500 m3/h
Max. delivery head: 35 m
Max. liquid temp: 140°C
Max. pressure: 1000 kPa (10 bar)
Max. speed: 1 800 rpm
Drawings & Models
CombiLine Dimensional Drawings (.DWG)
32 mm (3 files)
zip
40 mm (11 files)
zip
50 mm (11 files)
zip
65 mm (11 files)
zip
80 mm (13 files)
zip
100 mm (28 files)
zip
125 mm (26 files)
zip
150 mm (38 files)
zip
200 mm (7 files)
zip
4/4 - 1 file, 146 Kb (4/4 is a threaded flange version)
zip
4/5 - 1 file, 145 Kb (5/4 is a threaded flange version)
zip
CombiLine Simplified 3D Models (.IGES)
ND6-32 mm (1 file)
zip
ND6-40 mm (8 files)
zip
ND6-50 mm (7 files)
zip
ND6-65 mm (6 files)
zip
ND6-80 mm (6 files)
zip
ND6-100 mm (11 files)
zip
ND10-32 mm (1 file)
zip
ND10-40 mm (8 files)
zip
ND10-50 mm (7 files)
zip
ND10-65 mm (8 files)
zip
ND10-80 mm (9 files)
zip
ND10-100 mm (12 files)
zip
ND10-125 mm (9 files)
zip
ND10-150 mm (8 files)
zip
ND10-200 mm (1 file)
zip
CombiLine BIM models (.RFA)
CombiLine BIM models (.RFA)
zip
Downloads
Brochures
Combi Modular System GB DE ES FI FR IT NL SV
Horticulture Circulation Pumps GB DE
Industrial Pump Product Overview US GB DE ES FR IT NL PL SV
Manuals
CombiLine / CombiBlocHorti, Instruction-Manual GB DK DE ES FI FR NL NO PL PT RU SV
ATEX Manual GB CR CZ DE DK ES FI FR HU IT NL NO PL RU SK SV
Spare Part Kits Manual GB
Resources
ECO Design Water Pumps GB
