CombiLineBloc - Close-coupled centrifugal pump with in-line ports

Product Type:
Pumps / Centrifugal Pumps

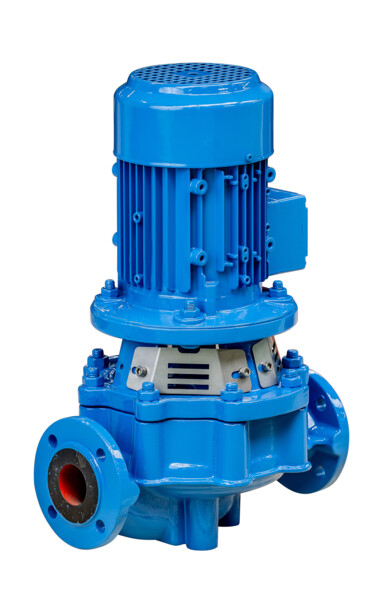

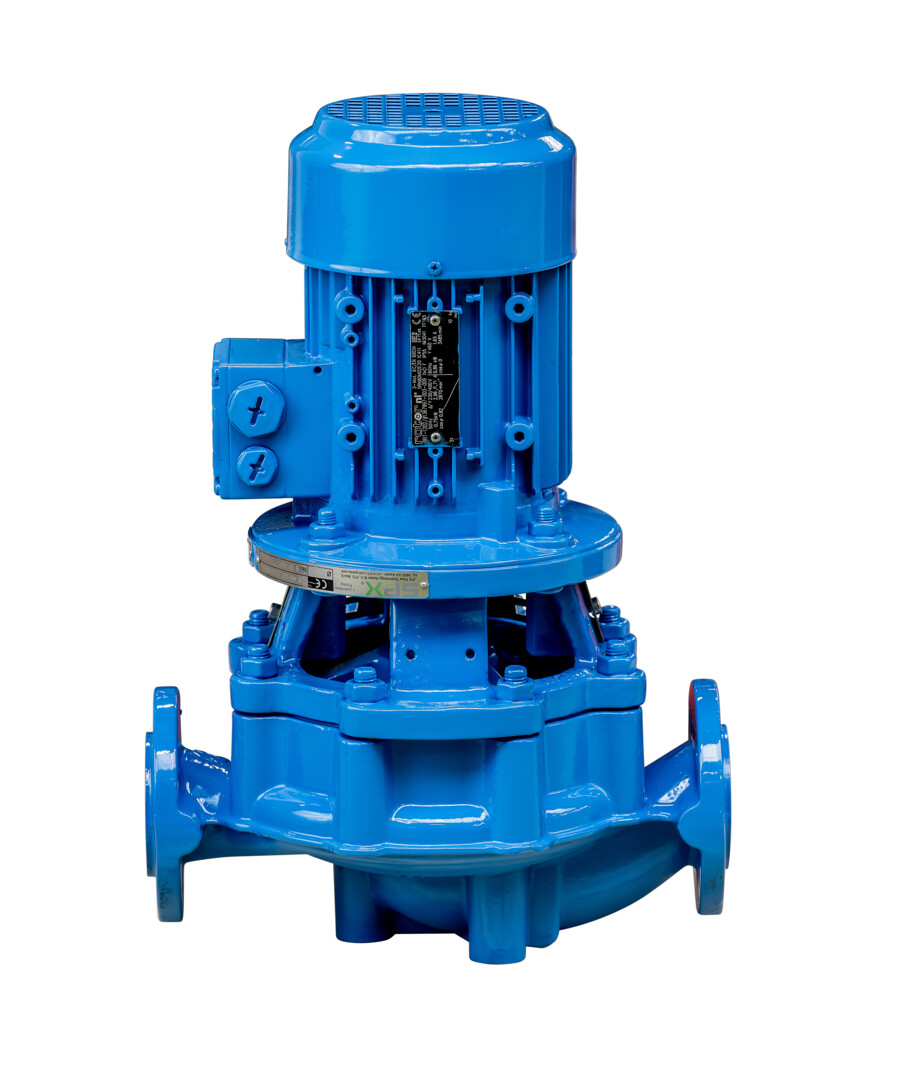

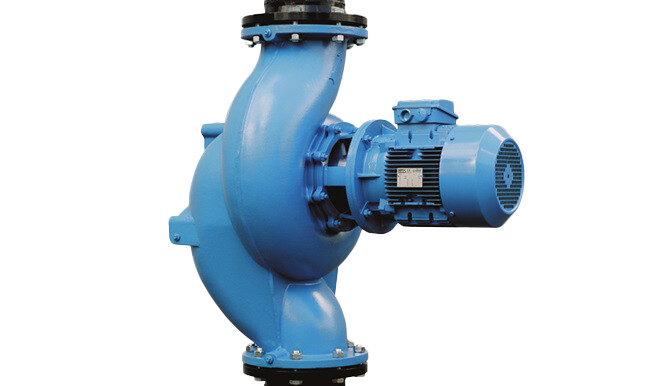

CombiLineBloc pumps are build-in in-line pumps. These pumps are easy to install in straight pipelines; inlet and outlet flange connections have the same size and pattern and are positioned in-line.

Features

In-line circulating pump of close-coupled design with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

  • Compact, economic, space saving construction
  • Wide range of applications
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Special designed low NPSH suction inlet casing
  • Back-Pull-Out construction for easy maintenance
  • Low maintenance cost
  • Atex certification
  • CE Certification
  • Suitable for vertical arrangement
  • Standard mechanical shaft seal EN 12756 (DIN 24690)

Suitable for

Clean, slightly contaminated thin liquids



Specifications

Technical data

Casing: Cast iron, Bronze
Impeller: Cast iron, Bronze
Max. capacity: 450 m3/h
Max. delivery head: 100 m
Max. liquid temp: 120°C
Max. pressure: 1000 kPa (10 bar)
Max. speed: 3 600 rpm
Drawings & Models
CombiLineBloc Dimensional Drawings (.DWG)
40 mm (42 files)
zip
50 mm (50 files)
zip
65 mm (42 files)
zip
80 mm (51 files)
zip
100 mm (46 files) - Including 80A-250
zip
125 mm (23 files) - Including 100A-250
zip
150 mm (24 files) - Including 125A-250
zip
200 mm (13 files)
zip
CombiLineBloc Simplified 3D Models (.IGES)
ND6-40-125 mm (5 files)
zip
ND6-40-160 mm (7 files)
zip
ND6-40-200 mm (9 files)
zip
ND6-50-125 mm (7 files)
zip
ND6-50-160 mm (9 files)
zip
ND6-50-200 mm (9 files)
zip
ND6-65-125 mm (7 files)
zip
ND6-65-160 mm (9 files)
zip
ND6-80-125 mm (9 files)
zip
ND6-80-160 mm (11 files)
zip
ND6-100-160 mm (10 files)
zip
ND6-100-200 mm (13 files)
zip
ND10-40-125 mm (5 files)
zip
ND10-40-160 mm (7 files)
zip
ND10-40-200 mm (9 files)
zip
ND10-50-125 mm (7 files)
zip
ND10-50-160 mm (9 files)
zip
ND10-50-200 mm (9 files)
zip
ND10-65-125 mm (7 files)
zip
ND10-65-160 mm (9 files)
zip
ND10-65-200 mm (11 files)
zip
ND10-80-125 mm (9 files)
zip
ND10-80-160 mm (11 files)
zip
ND10-80-200 mm (11 files)
zip
ND10-80A-250 mm (8 files)
zip
ND10-100-160 mm (10 files)
zip
ND10-100-200 mm (13 files)
zip
ND10-100A-250 mm (6 files)
zip
ND10-125-160 mm (10 files)
zip
ND10-125-200 mm (13 files)
zip
ND10-125A-250 mm (6 files)
zip
ND10-150-125 mm (6 files)
zip
ND10-150-160 mm (6 files)
zip
ND10-150-200 mm (6 files)
zip
ND10-150-250 mm (8 files)
zip
ND10-200-160 mm (6 files)
zip
ND10-200-200 mm (6 files)
zip
Downloads
Brochures
Combi Modular System GB DE ES FI FR IT NL SV
Horticulture Circulation Pumps GB DE
Industrial Pump Product Overview US GB DE ES FR IT NL PL SV
Manuals
CombiLineBloc, Instruction Manual GB CZ DK DE ES FI FR HU NL NO PL PT RU SK SV
ATEX Manual GB CR CZ DE DK ES FI FR HU IT NL NO PL RU SK SV
Resources
ECO Design Water Pumps GB
